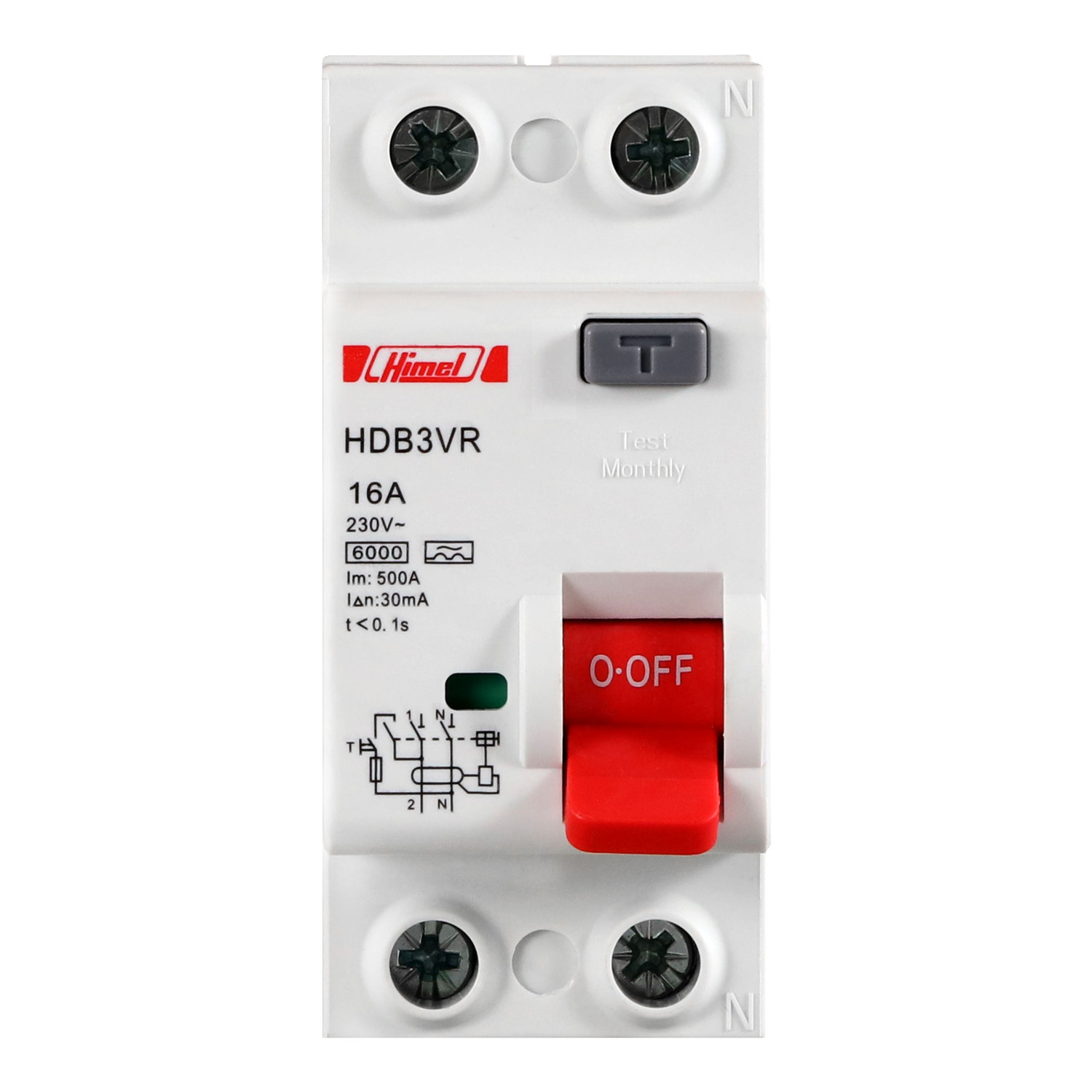

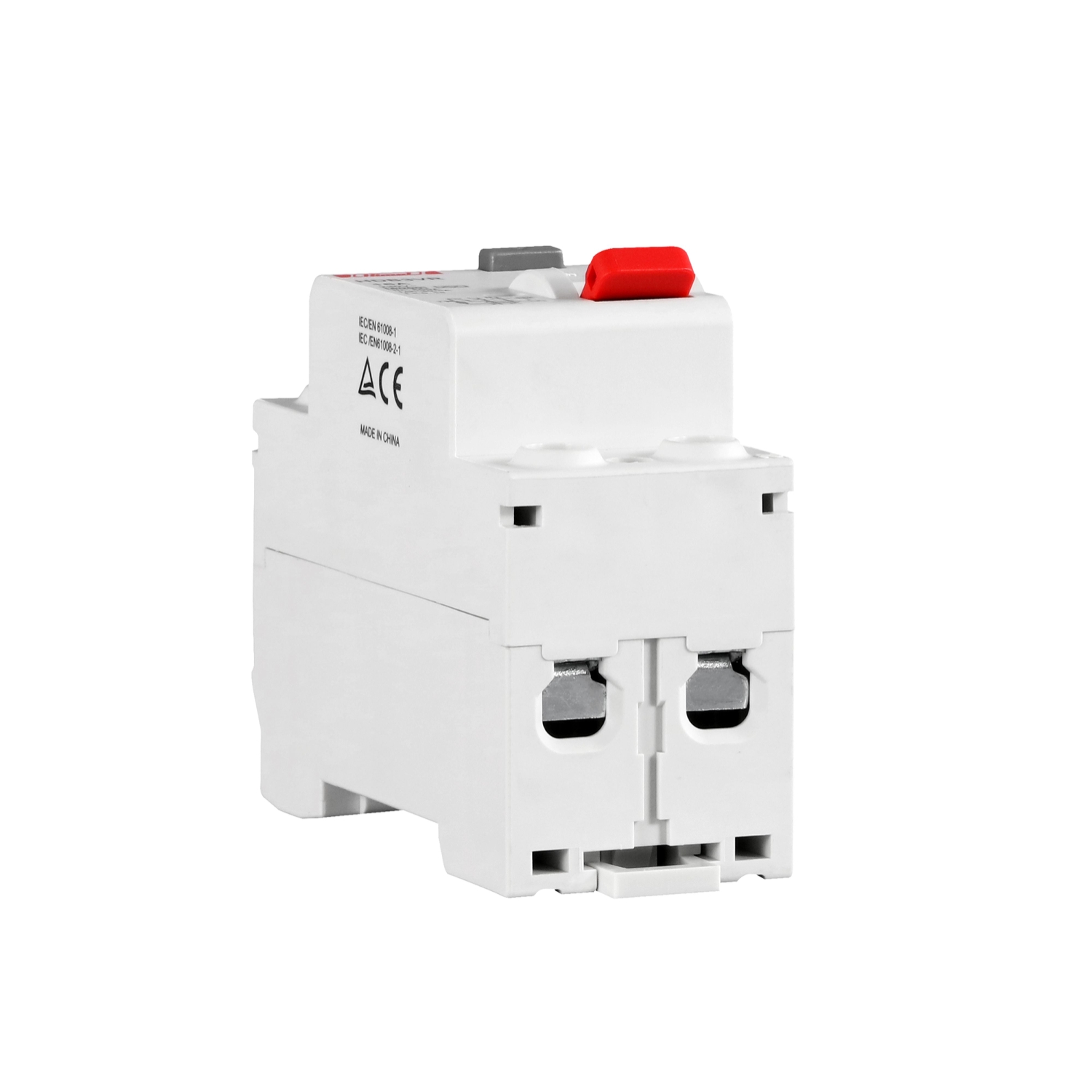

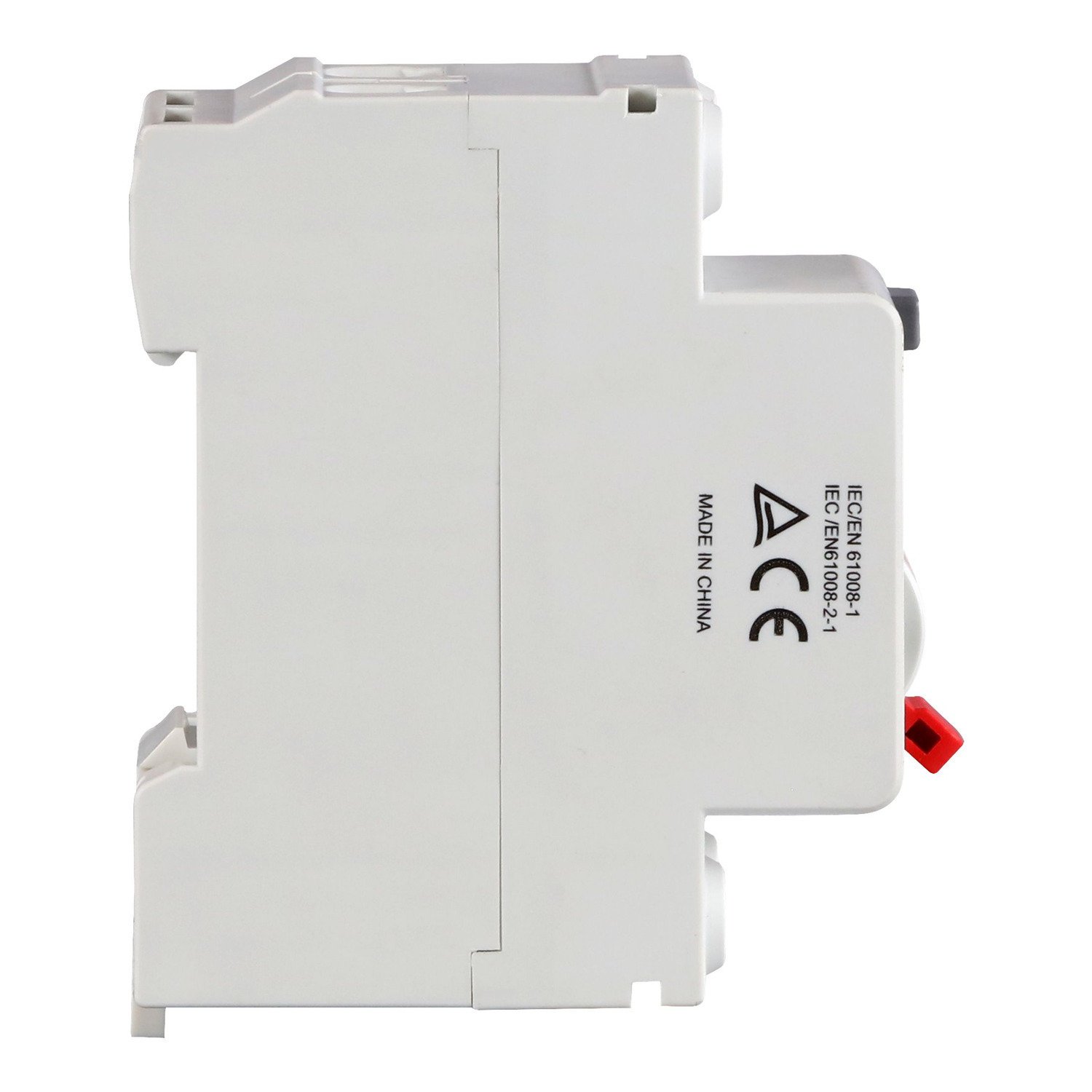

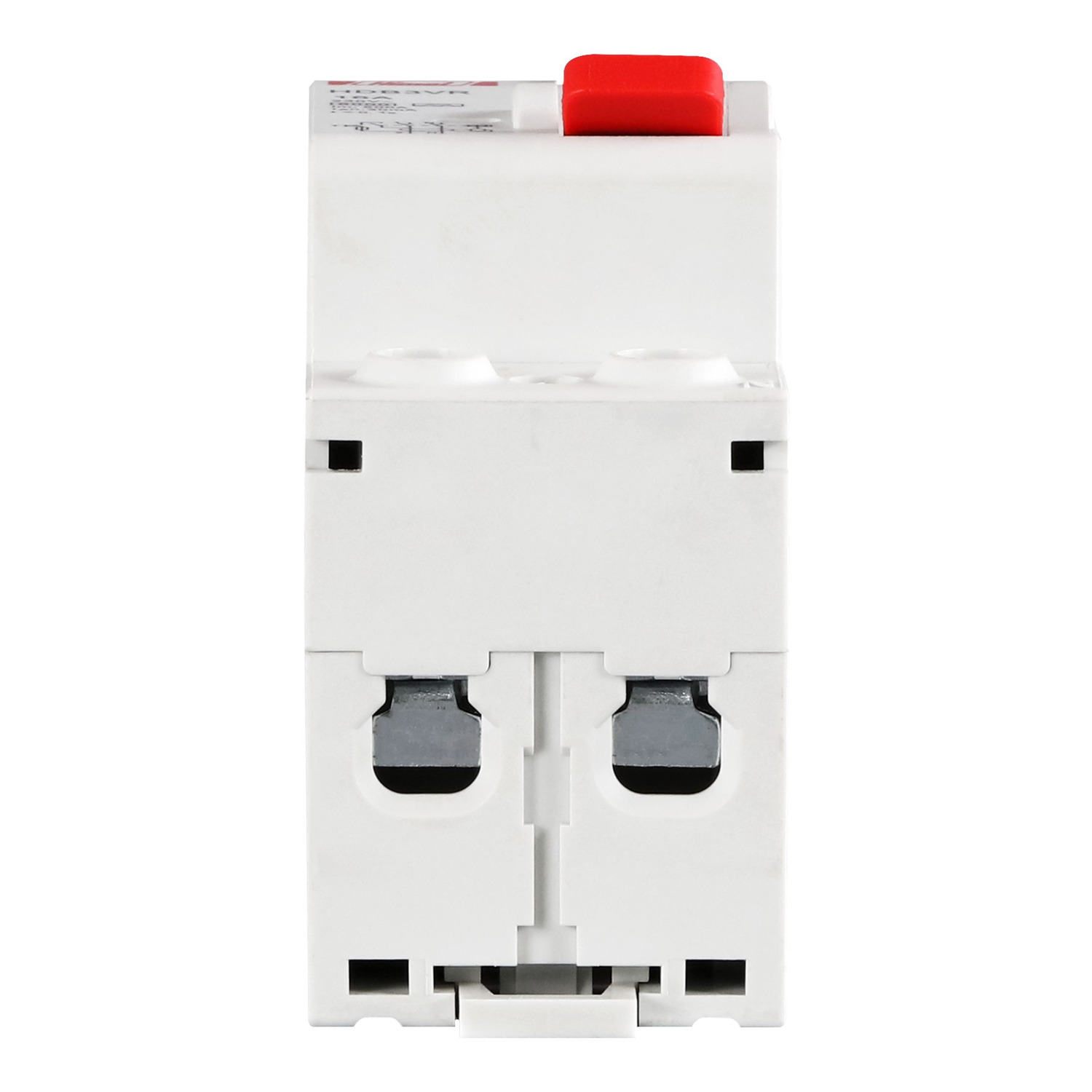

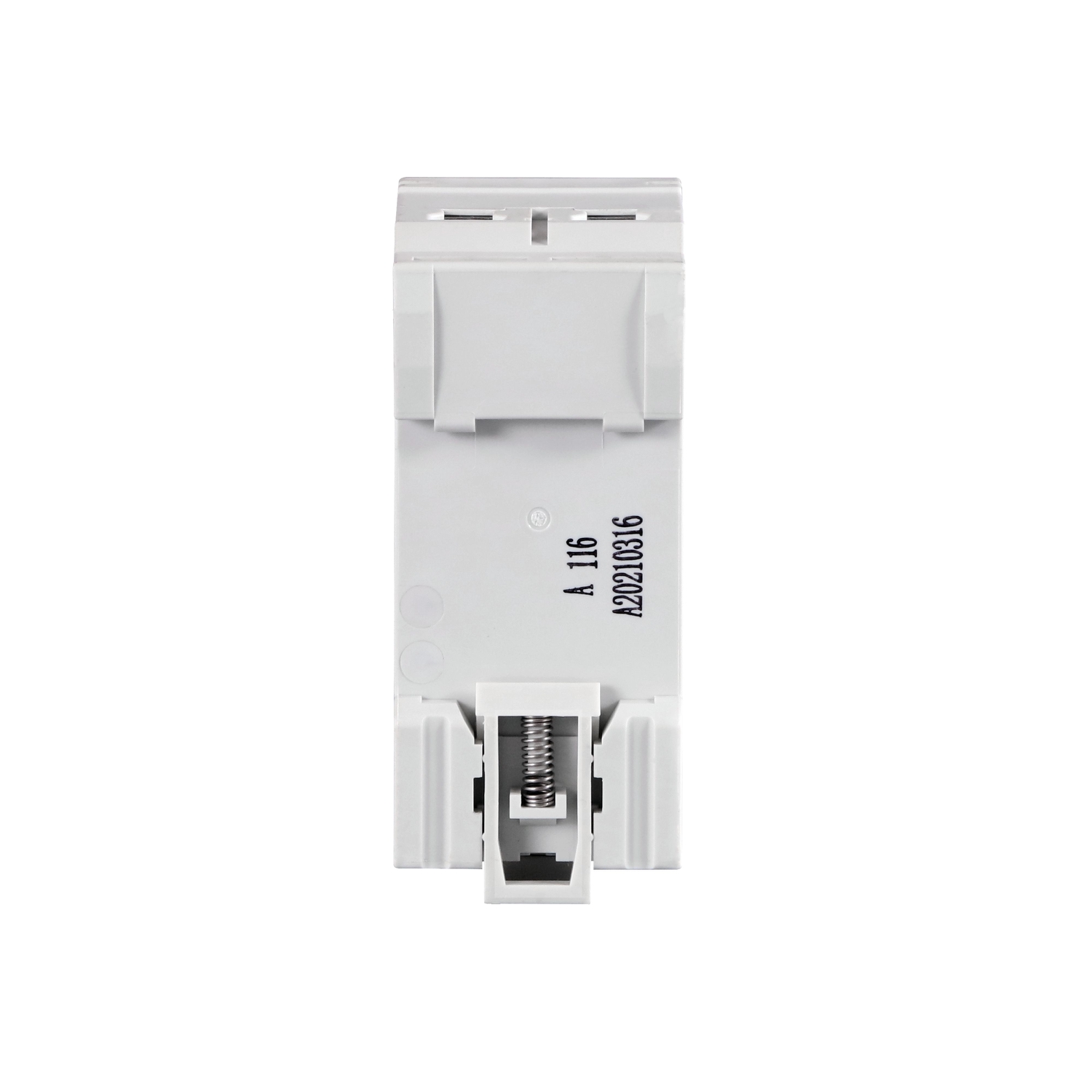

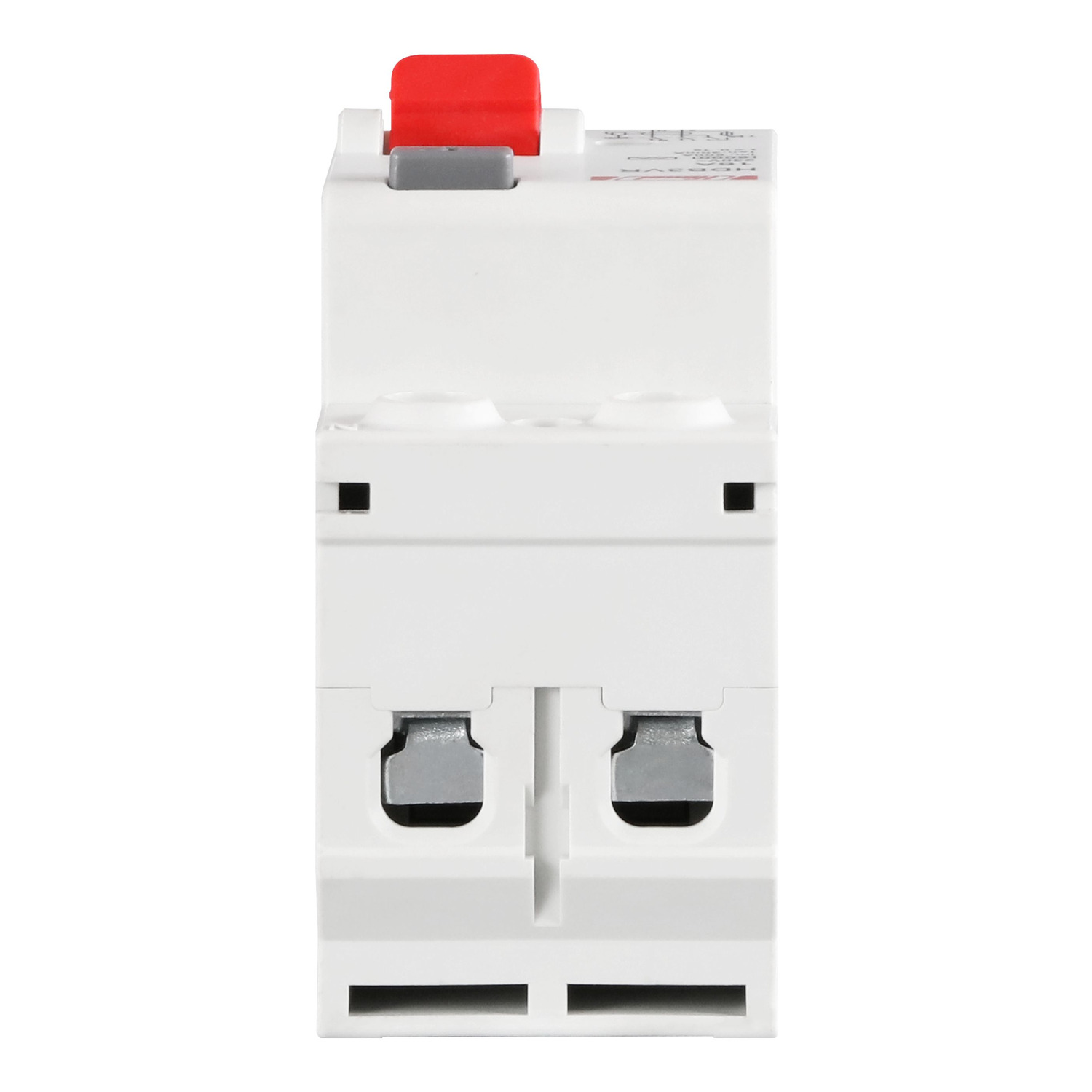

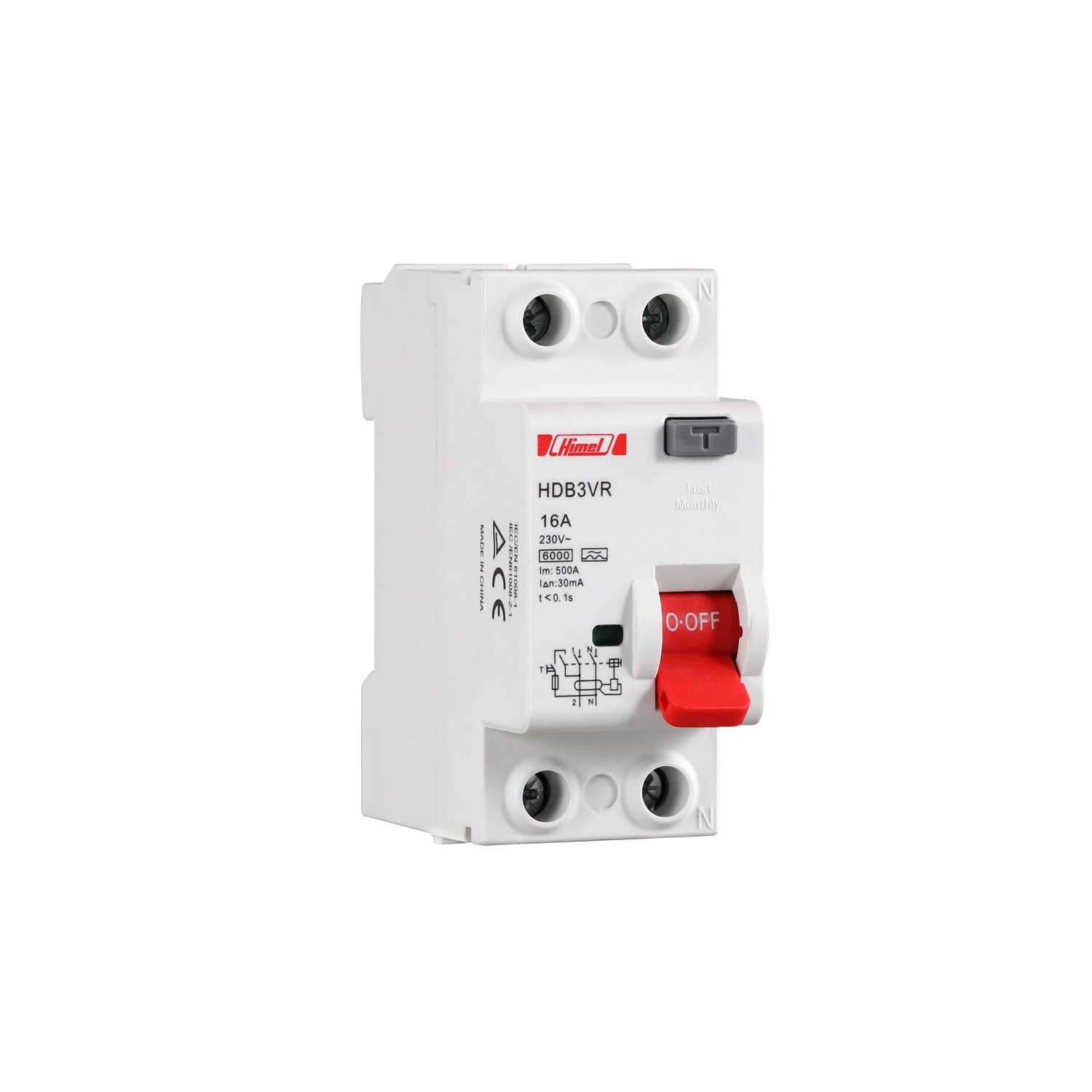

HDB3VR225SC
residual current switch HDB3VR - 2P - 25A - 30mA - for AC
Main
Range of product
HDB3VR
Product or component type
Residual current circuit breaker (RCCB)
Poles description
2P
Earth-leakage protection class
Class AC
Complementary
[In] rated current
25.0 A
Earth-leakage sensitivity
30.0 mA
Frame size
63AF
[Ue] rated operational voltage
230 V AC
[Ui] rated insulation voltage
500 V
Mechanical durability
2000 cycles
Electrical durability
1000 cycles
Protection type
Earth-leakage protection direct contact
Local signalling
Mechanical indicator for fault
Mounting support
35 mm DIN rail
9 mm pitches
4
Clamping connection capacity
<= 25 mm²
Tightening torque
2…4.5 N.m
Height
78.5 mm
Width
36.0 mm
Depth
70.0 mm
Embedding depth
43.5 mm
E-commerce address
Residual-current-switch-hdb3vr-ac-type
Environment
Environmental characteristic
Fire retardant
Tropicalisation
2
Pollution degree
2
Ambient air temperature for operation
-25…40 °C
Standards
EN/IEC 61008-1
Product certifications
TÜV
CE
CB
CE
CB
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
17.2 cm
Package 1 Width
26.2 cm
Package 1 Length
45.8 cm
Package 1 Weight
0.183333333 kg
