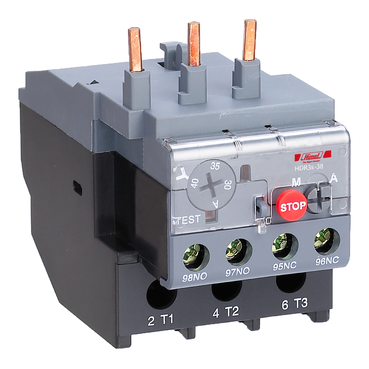

HDR3s

3-pole thermal overload relay up to 93 A frame size

An automatic isolating switch device HDR3s is used to protect the motor against overload, phase loss, and current imbalance, which is working together with AC contactor HDC3.

SALES SUPPORT CONTACT US
93446501170
Filters

Filter by:

  • View More

  • View More

Features

The thermal overload relay HDR3s is up to 95A frame size and it always works together with HDC3 to match customer requirement.



Specifications

- Frame size: 25 A, 38 A, 93 A

- Pole: 3-pole

- Setting current: 0.1...93 A

- Certificate: CB, CE, SEMKO

Benefits

UPGRADED COMPONENTS & STABLE AND RELIABLE

- Leaf-spring-type moving contact to avoid the risk of auxiliary contacts being un-energized

- Upgraded bi-metal structure for temperature compensation; better reliable operation at the high and low-temperature environment

- Optimized process and improved stabilization

- Square-type conducting rod and more reliable wiring



EASY TO USE

- Range of setting current is wider

- Unified nameplate and hard to fall off



STRONG CONFORMITY

- It can be conformity with HDC3 as well as HJX2

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:

- Machine tool

- Lifting

- Constructional engineering

- Air compressor

- Water pump

- Mining machinery

- Control cabinet assembly



ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDs: ​

- IEC/EN 60947-4-1
