HRT16

HRT16 fuse

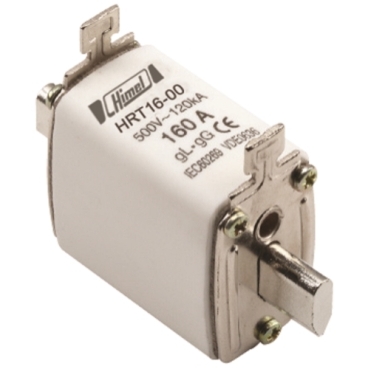

Knife type Fuse HRT16

SALES SUPPORT CONTACT US
93446501170

Features

HRT16 series fuse is applied for the system of AC 50/60 Hz, rated voltage 500/690 V, rated current 2..630 A. It’s mainly used for overload and short-circuit protection, and it can also coordinate with other protection appliances (e.g. isolating switch).



Specifications

- Rated operating current: 2...630 A

- Rated Frequency: 50/60 Hz

- Rated operating voltage: 500/690 V AC 250/440 V DC

- Rated breaking capacity: 120 kA (500 V), 50 kA (690 V)

- Ambient Temperature: - 5 ℃ ~ + 45 ℃

- Altitude: ≤ 2000 m

- Standard: IEC 60269

Benefits

RELIABLE WITH REASONABLE MARKETING POSITION

It’s mainly used for short-circuit protection, and also it somehow can be applied for overload protection if no shock for the load (micro-motor which is less than 10 kW).

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING: ​

- Panel builders​



ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:

- IEC 60269
