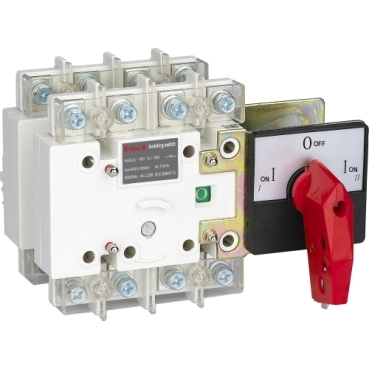

HDGL

Features

Work as main incomer switch for isolating application.

Or manual changeover switch to changeover between utility power and generator.

Specifications

- Rated current:

63AF(16A, 25A, 25A, 32A, 40A, 63A);

100AF(80A, 100A);

160AF(100A, 125A, 160A);

250AF(200A, 250A); 630AF(315A, 400A, 500A, 630A);

1600AF(800A, 1000A, 1250A, 1600A);

3150AF(2000A, 2500A, 3150A)

- Rated Frequency: 50/60 Hz

- Poles: 3P & 4P

- Insulating voltage: 800 V

- Power frequency withstand voltage: 2000 V

- Instantaneous withstanding current: 2 ~ 50 kA

- Ambient Temperature: - 5 ℃ ~ + 45 ℃

- Altitude: ≤ 2000 m

- Standard: IEC 60947-3

Benefits

RELIABLE WITH REASONABLE MARKETING POSITION

- Full series T2 copper terminals

- High-quality shell material

- Energy storage spring release mechanism

- Optimized contacts design

- Indicating window

- Lockable metal tongue in the handle

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING: ​

- Panel builders​

ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:

- IEC 60947-3
