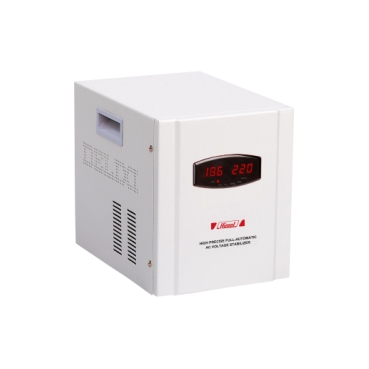

HTND2 voltage stabilizer

Servo motor type single-phase stabilizer HTND2 for high precise application

SALES SUPPORT CONTACT US
93446501170
Filters

Filter by:

Reset all

  • View More

Reset

Features

The voltage stabilizer is applied to protect load being damaged under unstable or fluctuated power grids. We can provide special offers according to specified applications.

Specifications
- Output Voltage:Accuracy of stabilized voltage: 220 V (or 230 V) ± 4 %; 110 V (or 115 V) ± 4 % (only when capacity is equal or less than 5 kVA)
- Range of input voltage: 140..250 V (0.5 ~ 10 KVA); 140..300V (15 ~ 20 KVA); 155 ~ 285 V (30 KVA)
- Capacity range: 0.5 ~ 30 KVA
- Customized input range: 85..250 V
- Rated Frequency: 50/60 Hz
- Standard function: Output overvoltage protection, Output undervoltage protection, short circuit protection
- Extended function (optional): By-pass, Fan, Input undervoltage protection, temperature rise protection, time delay
- Voltage-regulating speed: < 1 s (variation of input voltage is 10 %)
- Temperature rise: < 80 K (with rated load)
- Display Mode: LED
- Insulation Resistance: ≥ 5 MΩ
- Withstand Voltage: 1500 V/1 min
- Efficiency: > 92 %
- Ambient Temperature: - 5 ℃ ~ + 45 ℃
- Altitude: ≤ 2000 m
- Relative humidity: 90 %
- Standard: EN 61000-6-2/ EN 61000-6-4/EN 61558-1

Benefits

RELIABLE AND DURABLE

- Smooth stabilization
- Stable and continuous voltage
- High accuracy

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Household appliances
- Office devices
- Small motors

ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: ​
- EN 61000-6-2/ EN 61000-6-4/EN 61558-1
