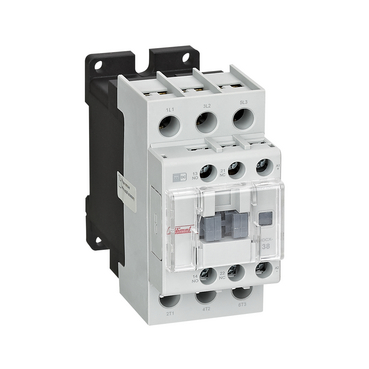

HDCX

3-pole DC coil AC contactor up to 38A

DC coil AC contactor HDCX is used for making and breaking the circuit against overload, phase loss, or current imbalance. With the upgrading design, it can be applied with the rating from 9A to 38A.

SALES SUPPORT CONTACT US
93446501170

Features

The DC coil AC contactor HDCX is up to 38A and it has different auxiliary contact groups for your specified requirement

Specifications

- Rating: 9-38A

- Pole: 3-pole

- Coil voltage: DC 24-220V

- Range of coil operating voltage: 80%-110%Us

- Auxiliary contact: 1NO+1NC

- Installation: Din-rail

- Certificate: CB, CE, SEMKO

Benefits

RELIABLE AND SAFE

- Pure copper contact board for main contacts and Ith is upgraded

- Enhanced and upgraded silver contacts, and better endurance for arc shock

- The main circuit and the auxiliary circuit are clearly distinguished

- Dustproof design

EXCELLENT QUALITY

- Completed accessories for broadening functions

- Collaborate with thermal overload relay HDRX

- Strong shock resistance

- Lower noise

- Improved terminal strength

DIRECT CONTROL BY PLC(DC 24V)

- Reduce more control cabinet space

- DC coil 24V power consumption only 6.5W

- Innovative DC low power contactors simplify automation system design. SMALL SIZE

- 20% reduction in product height and width

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:

​- Machine tool​​​​​​​

​​​​​​​- Lifting

​​​​​​​- Constructional engineering​​​​​​​

​​​​​​​- Air compressor​

​​​​​​​- Water pump

​​​​​​​- Mining machinery

​​​​​​​- Control cabinet assembly

ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: ​​​​​​​​- IEC/EN 60947-4-1
