HDC3

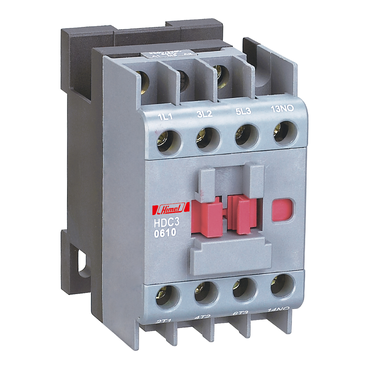

3-pole AC contactor up to 95A

AC contactor HDC3 is used for making and breaking the circuit against overload, phase loss, or current imbalance. With the upgrading design, it can be applied with the rating from 6A to 95A.

SALES SUPPORT CONTACT US
93446501170

Features

The AC contactor HDC3 is up to 95A and it has different auxiliary contact groups for your specified requirement.



Specifications

- Rating: 6-95A

- Pole: 3-pole

- Coil voltage: 24-440V

- Coil frequency: 50Hz, 50/60Hz

- Range of coil operating voltage: 70%-120%Us

- Auxiliary contact: 1NO or 1NC (6A)

1NO or 1NC or 1NO+1NC (9-38A)

1NO+1NC (40-95A)

- Installation: Din-rail

- Certificate: CB, CE, SEMKO

Benefits

RELIABLE AND DURABLE

- Pure copper contact board for main contacts and Ith is upgraded

- Enhanced and upgraded silver contacts, and better endurance for arc shock

- 70%~120% Us wider range of operating voltage

- Dustproof design



COST-EFFECTIVE

- Completed accessories for broadening functions

- Collaborate with thermal overload relay HDR3s



CONVENIENT AND EFFICIENT

- Two-hole wiring: easy for wiring & firm and reliable

- Special slide block design: one-hand mounting and dismantle

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:

​- Machine tool

- Lifting

- Constructional engineering

- Air compressor​

- Water pump

- Mining machinery

- Control cabinet assembly



ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: ​

- IEC/EN 60947-4-1

User guide
pdf
HDC3 user manual

English

.pdf

15.72 MB

16/06/2020
