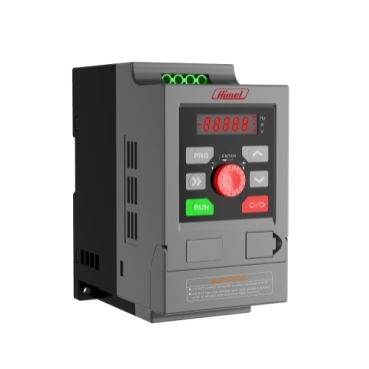

BASIC

Variable speed drives for 0.75..5.5 kW motors

For your small machines and simple general-purpose applications

SALES SUPPORT CONTACT US
93446501170

Features

Himel BASIC series variable speed drives (VSDs) are for single-phase/three-phase asynchronous motors from 0.75 kW to 5.5 kW. Designed for your small machines and simple general purpose applications like pumps, fans, carving machines, etc. Himel BASIC VSD is designed with the focus on essentials in terms of both hardware and software for high performance at a low cost.



BASIC series covers motor power with the following supplies:

- 220 V single-phase AC, from 0.4..2.2 kW

- 380..440 V three-phase AC, from 0.75..5.5 kW

- IP20

- Output frequency range: 0 ~ 650 Hz

- Start Torque: 150% output of torque at 0.5 Hz

- Speed stabilization accuracy: 0.1%

- Standard MODBUS communication protocol

- Complies to CE certification

Benefits

Low cost

Easy to Use

Longer Lifetime

Lead Control

- Built-in sensor-less vector control (SVC) and V/F control model

- Excellent performance: 150% rated Torque output at 0.5Hz

Compact Structure

- High-efficiency heat dissipation design, small size, saves the design space of distribution cabinet

Rich Functions

- Built-in PID

- Multi-speed operation (16 stages speed operation)

- Simple PLC

- Built-in brake unit

- Standard MODBUS communication protocol

- Wide voltage range designed to meet the domestic low-voltage special occasions

Protection

- Comprehensive protection for over-current, over-voltage, over-load, over-heat, low-voltage, etc.

Applications

- Pump and Fan

- Small machines

- Simple applications

CAD
pdf
BASIC-4T0022G CAD drawing

English

.stp

9.07 MB

09/08/2020

pdf
BASIC-4T0055G CAD drawing

English

.stp

12.78 MB

09/08/2020

User guide
pdf
Basic + Smart solar user manual

English

.pdf

2.05 MB

27/07/2020

pdf
Basic + Smart solar user manual - (detailed)

English

.pdf

4.42 MB

14/06/2022

Catalog
pdf
Variable Speed Drives_Catalog

English

.pdf

18.70 MB

12/09/2023

Language Format Size Date
CAD

icon BASIC-4T0022G CAD drawing

English

.stp

9.07 MB

09/08/2020

icon BASIC-4T0055G CAD drawing

English

.stp

12.78 MB

09/08/2020

User guide

icon Basic + Smart solar user manual

English

.pdf

2.05 MB

27/07/2020

icon Basic + Smart solar user manual - (detailed)

English

.pdf

4.42 MB

14/06/2022

Catalog

icon Variable Speed Drives_Catalog

English

.pdf

18.70 MB

12/09/2023

Yes, the terminals can handle the current for such loads regardless of AC or DC. Salso there is no need to change/set any parameter for DC or AC.

The efficiency of Himel Variable speed Drives is ? 93%.

No, only EXPERT and SMART series have EMC filter. Please refer to the catalog for further details regarding specific commercial references.

All Himel Variable Speed Drive can be installed in places where humidity ? 95%

"All Himel VSDs (? 22kW) have built-in braking unit. Above 22kW, an external braking unit can be installed. Please refer to the Himel VSD catalog to select the appropriate braking unit and braking resistor for Himel drives. "

It is an active type filter as it takes power from supply instead of the signal itself.

Yes, the short protection is realized by IGBTs.

Technically, our variable speed drives can but because this kind of application usually requires customized solution and certain safety certifications and we don't have these certifications right now.

We believe in building a long-term partnership with our distributor/partners. We train the technical team of our partners with comprehensive hands-on trainings. Hence, developing our partners into our service partners as well. These partners provide

We believe in building a long-term partnership with our distributor/partners. We train the technical team of our partners with comprehensive hands-on trainings. Hence, developing our partners into our service partners as well. These partners provide

Different use cases of variable speed drives have different energy savings so it is difficult to calculate return on investment.

"Generally, we can transfer VSD control parameters from one Himel drive to another Himel drive but unfortunately not from some other brand to Himel VSD. In some specific case/application we might be able to help. Please contact our sales and partners

Nowadays IP20 is the standard and in applications such as petrochemical, customers can install our drives in IP66 certified cabinets.

Yes, Himel drivess can have a derated use between 40 to 50 degree celsius. We recommend using one rating higher in such cases. For example, for a 0.75kW motor, 1kW drive should be used.

Yes, Himel's EMC filter has a C3 complient EMC filter that can be used for harmonic filtering.
