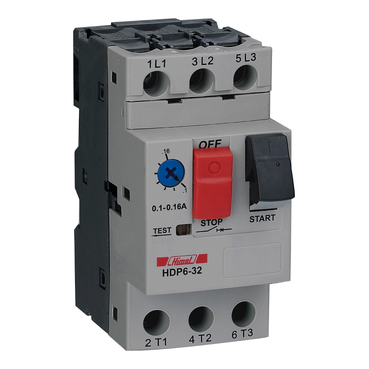

HDP6

Motor circuit breaker is used with 32 A frame size

A space-saving and cheap device used for protecting the motor against overload, phase loss, and short circuit. It works in a similar function as the combination of MCB plus relay

SALES SUPPORT CONTACT US
93446501170

Features

The motor circuit breaker HDP6 is used for protecting the motor against overload, phase loss, and short circuits.

Specifications
- Frame size: 32 A
- Operation mode: button operated
- Pole: 3-pole
- Setting current: 0.1...32 A
- Maximum rated voltage: 690 V
- Rated insulation voltage: 690 V
- Rated withstand voltage: 6 kV
- Trip class: 10 A
- Fastening torque: 1.7 Nm
- Electrical durabilities AC-3 400 V: 100000 times
- Mechanical durabilities: 100000 times
- Rated operating frequency: 50/60 Hz
- Overload protection category: phase failure, thermal overload
- Short circuit protection: yes
- Isolation function: yes
- Temperature compensation function: yes
- Certificate: CE, SEMKO

Benefits

FUNCTION 2 IN 1
- MP= MCB+ Relay

CONVENIENT WIRING
- MP > Relay

SMALL SIZE
- Space save: MP < MCB + Relay

CHEAP PRICE
- MP < MCB + Relay

Applications

AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:

​- Light industry machinery (textile industry, ceramics)

- Machine tool, transmission system

- Water treatment system, waste disposal industry

- Building automation, elevator



ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: ​

- IEC 60947-1, IEC 60947-2, IEC 60947-4-1
