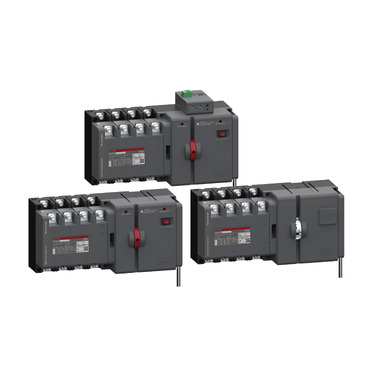

HDQ3S

Transfer Switch Equipment

The HDQ3S is a member of the Himel 3 series, designed as a PC-class Automatic Transfer Switch (ATS) equipment. It is primarily utilized in AC 50/60 Hz power systems with a rated operating voltage of 230/400 V and a rated operating current ranging from 16 to 250 A. This device facilitates the automatic or manual switching between the normal and alternative sources.

SALES SUPPORT CONTACT US
93446501170

Features

Class: PC Class

Drives: Motor

Current: 16-250A

Equipment Class: PC

Position: I-O-II

Category: AC-32B / AC-33B / AC-33iB

Standard: GB/T 14048.11 / IEC 60947-6-1

Certificate: CCC/CE/CB

Benefits

Automatic / Remote Control (Specific for Generator application) / Manual

Power-Power / Power (Solar)-Generator (Solar)

Auto Transfer and Recover

Double contact structure system achieve AC-33B@140A / AC-33iB@250A suit for full motor load application

Energy storage mechanism, ensure transfer time ≤2s, reduce power short down time

2 line in and 1 line out, save additional wire consumption

Auto and Manual button integrated, easy to maintain

Applications

Building: Residential, Fire system

Utility: Power system

Industry: Factory, Telecom tower, Subway

Commercial: Elevator, Medical and Data center
