HDB3wZ

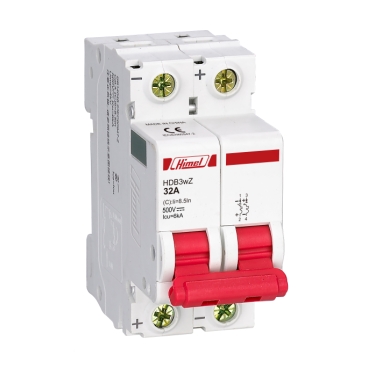

DC miniature circuit breaker

Economic DC type MCB can be used in some DC applications, like solar energy areas. Give short circuit protection, control, overload protection, and insulation function.

SALES SUPPORT CONTACT US
93446501170

Features

- Smart design with independent accessory installation;
- Platform upgrade which can reach whole range 6kA;
- Higher durability, reduce the maintenance cost;
- Wider temperature environment between -20℃ to 60℃
- With 240/415, 50/60Hz, multi-language user manual

Benefits

Wider application: Complete product line, complete range, and complete specification;
New members with indicators will launch soon
Convenient accessory assembly: all accessories of six different types can be assembled independently without tools
Safe for users: sealed terminals, stripping torque indication, internal arc-blocked board, and CPI indicator
Rest assured to use: new members with indicator strictly follow RoHS directive to produce, and Pb, Cd, Hg, Cr6+, PBDE, and PBB are prohibited

Applications

NA

Certificate
pdf
HDB3wZ CB SE-85364 2016 certificate

English

.pdf

0.63 MB

19/12/2016

pdf
HDB3wZ_SEMKO_1620900_2016 certificate

English

.pdf

0.77 MB

19/12/2016

pdf
HDB3wZ_CE_160701619SHA-V1_2017 certificate

English

.pdf

0.07 MB

10/01/2017

User guide
pdf
HDB3wZ-63_UM user manual

English

.pdf

5.76 MB

05/06/2020
