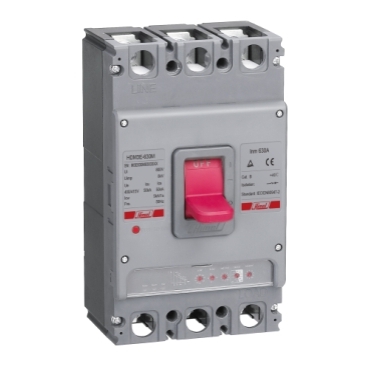

HDM3E

Electronic MCCB from 125..1600 A

Electronic MCCB can be set based on customer needs to provide, protection for the cable and equipment in the power distribution circuit against overload, short circuit

SALES SUPPORT CONTACT US
93446501170

Features

Specifications:

Frame current:125/250/400/630/800/1600 A

Ue: 400/415 V

Icu: 50 kA

Ics: 100 % Icu

Poles: 3P/4P

Installation: Fixed type; Plug-in type; Draw-out type

Standards: IEC 60947-1/IEC 60947-2

Certification: TV/CE

Benefits

Easy Installation

Quick adjustment of current is possible due to HDM3E’s better current setting design with specified round scale;

High Performance

HDM3E all series Ics=100%Icu=50 kA;

Secure Operation

HDM3E are trustworthy and safe for use due to the Double-deck cover design

Applications

- Commercial building

- Public building

- Residential

- Industrial

Certificate
