Features

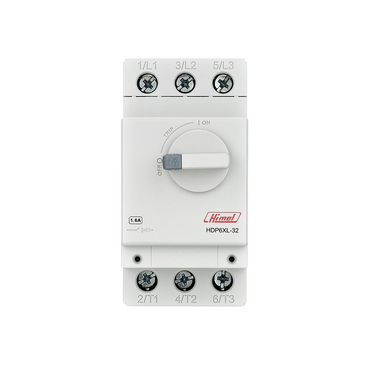

The motor circuit breaker HDP6XL is used for protecting the motor against short circuits.
Specifications
- Frame size: 32 A
- Operation mode: Rotary handle
- Trip unit: Magnetic
- Pole: 3-pole
- Release current: 0.4...32 A
- Maximum rated voltage: 690 V
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 8 kV
- Trip class: 10 A
- Fastening torque: 1.7 Nm
- Electrical durabilities AC-3 400 V: 100000 times
- Mechanical durabilities: 100000 times
- Rated operating frequency: 50/60 Hz
- Short circuit protection: Yes
- Certificate: CE, CB, SEMKO<
Benefits
p /pp FAST RESPONSE SPEEDp /ppp /pp- The electromagnetic trip device is used for short circuit protectionp /ppp /pp FLEXIBLE APPLICATIONp /ppp /pp- Only short circuit protection is required without overload protection, simplifying system designp /ppp /pp SIMPLE STRUCTUREp /ppp /pp- Stable quality and easy to maintain and replacep /ppp /pp CHEAP PRICEp /ppp /pp- MP < MCB + Relayp /pp
Applications
p /ppAN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:p /ppp /pp- Light industry machinery (textile industry, ceramics)p /ppp /pp- Machine tool, transmission systemp /ppp /pp- Water treatment system, waste disposal industryp /ppp /pp- Building automation, elevatorp /ppp /ppENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS: p /ppp /pp- IEC 60947-1, IEC 60947-2, IEC 60947-4-1p /pp
