Features

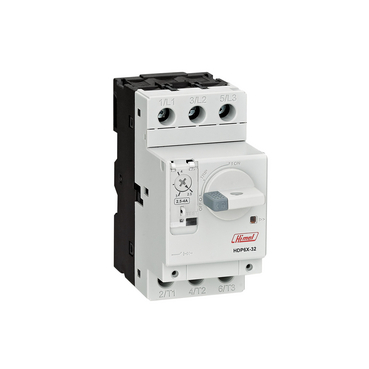

The motor circuit breaker HDP6X is used for protecting the motor against overload, phase loss, and short circuits.
Specifications
- Frame size: 32 A
- Operation mode: Rotary handle
- Trip unit: Thermal-magnetic
- Pole: 3-pole
- Setting current: 0.1...32 A
- Maximum rated voltage: 690 V
- Rated insulation voltage: 690 V
- Rated impulse withstand voltage: 8 kV
- Trip class: 10 A
- Fastening torque: 1.7 Nm
- Electrical durabilities AC-3 400 V: 100000 times
- Mechanical durabilities: 100000 times
- Rated operating frequency: 50/60 Hz
- Overload protection category: Phase failure, thermal overload
- Short circuit protection: Yes
- Isolation function: Yes
- Temperature compensation function: Yes
- Certificate: CE, CB, SEMKO
Benefits
FUNCTION 2 IN 1
- MP= MCB+ Relay
CONVENIENT WIRING
- MP > Relay
SMALL SIZE
- Space saving: MP < MCB + Relay
CHEAP PRICE
- MP < MCB + Relay
Applications
AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Light industry machinery (textile industry, ceramics)
- Machine tool, transmission system
- Water treatment system, waste disposal industry
- Building automation, elevator
ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:
- IEC 60947-1, IEC 60947-2, IEC 60947-4-1
