HDK

Din-rail type Switch Mode Power Supply

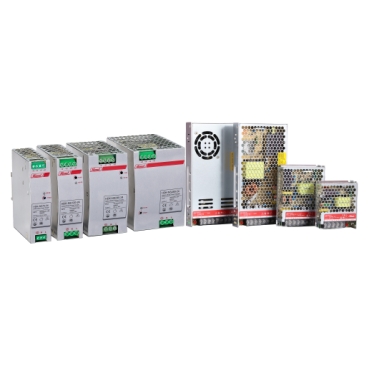

Din-rail type Switch Mode Power Supply HDK (AC to DC power module)

SALES SUPPORT CONTACT US
93446501170

Features

Switch-mode power supply HDK-NS is a fully new series with a narrow surface design. It is specified in the din-rail installation requirement.

Specifications

Rated Power: 75W~480W/

AC Input Voltage: 100~240 V

Output Stability: ≤1%

Load Regulation Rate: ≤1% (standard)

Micro Regulation Range of Output Voltage: ±10% (rated output voltage)

Ripple and noise: ≤1%(mVp-p) of rated output voltage

Overload protection: 110%~150% (protection mode: hiccup mode is activated, and it will be recovered automatically when the abnormal condition is eliminated)

Output loop: Single

Working environment

Working temperature: -20℃~+70℃

Humidity: 20%~90%RH

Applications

Selecting a suitable Power Supply will help

you prevent some unexpected issues.

Our product can be widely used in the following fields:

◇ Industrial control system

◇ Industrial automation machinery

◇ Mechanical and electrical equipment

◇ Electronic instruments

◇ Household appliances

In those fields, our product is used as the power supply for LED screens, electronic testing equipment, control equipment, radio and television, computer network, medical apparatus and instruments, intelligent monitoring, etc.

Certificate
pdf
HDK_CE_LVD-EMC_M_2021_206_C66404_20210726

English

.pdf

0.04 MB

26/07/2021

User guide
pdf
HDKUS user manual

English

.pdf

1.22 MB

08/06/2020

pdf
HDK-NS_User-Manual

English

.pdf

0.10 MB

09/08/2021

Catalog
pdf
Catalogue-HDK

English

.pdf

0.11 MB

09/08/2021

pdf
HDKUS Catalogue-Switch Mode Power Supply

English

.pdf

1.65 MB

01/10/2019
