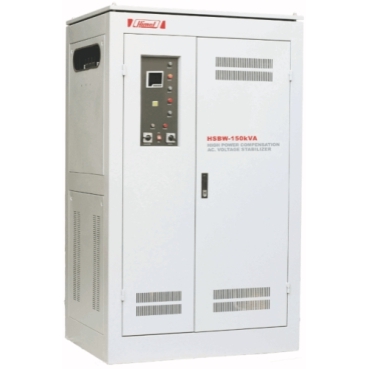

Features
The voltage stabilizer is applied to protect load being damaged under unstable or fluctuated power grids. We can provide special offers according to specified applications.
Specifications
- Output Voltage:Accuracy of stabilized voltage: 380 V (or 400 V) ± 4 %
- Range of input voltage: 304..456 V
- Capacity range: 10 ~ 2000 KVA
- Customized input range: 250..423 V or 304..470 V
- Rated Frequency: 50/60 Hz
- Standard function: Output undervoltage protection, Output overvoltage protection, short circuit protection
- Extended function (optional): Fan, Input undervoltage protection, temperature rise protection, time delay, by-pass, overload protection, Phase failure protection, Surge protector
- Voltage-regulating speed: < 1 s (variation of input voltage is 10 %)
- Temperature rise: < 60 K (with rated load)
- Display Mode: Dial Meter (Panel Meter) or LED or LCD
- Insulation Resistance: ≥ 5 MΩ
- Withstand Voltage: 1500 V/1 min
- Efficiency: > 95 %
- Ambient Temperature: - 5 ℃ ~ + 45 ℃
- Altitude: ≤ 2000 m
- Relative humidity: 90 %
- Standard: EN 61000-6-2/ EN 61000-6-4/EN 61558-1
Benefits
RELIABLE AND DURABLE
- Smooth stabilization
- Stable and continuous voltage
- High accuracy
Applications
AN EXCELLENT CHOICE FOR ALL STANDARD APPLICATIONS, INCLUDING:
- Industrial equipment
- R&D equipment
- Motors
- Utility
- Large residential area
ENSURES COMPLIANCE WITH INTERNATIONAL STANDARDS:
- EN 61000-6-2/ EN 61000-6-4/EN 61558-1
English
0.16 MB
30/03/2012
English
0.20 MB
30/03/2012
English
0.77 MB
15/06/2020
English
1.22 MB
29/11/2021
| Language | Format | Size | Date | |
|---|---|---|---|---|
| Declaration of conformity | ||||
English |
0.16 MB |
30/03/2012 |
||
English |
0.20 MB |
30/03/2012 |
||
| User guide | ||||
English |
0.77 MB |
15/06/2020 |
||
English |
1.22 MB |
29/11/2021 |
||
Differentiations are in the following:
(1) Accuracy
- Servo motor type is +/-4%
- Relay type is +/-8%
(2) Voltage regulation speed
- Servo motor type: ?1s
- Relay type: ?10ms
(3) Component for regulating voltage
- Servo motor type: carbon brush
- Relay type: relay
(4) Capacity
- Servo motor type: up to 30KVA for single-phase, and up to 2000KVA for three-phase
- Relay type: up to 12KVA for single-phase, and not available for three-phase"
By-pass, temperature rise protection, input undervoltage / overvoltage protection, surge protection, time delay, fan, phase sequence (for three-phase only)
HTND: 0.5-30KVA
HTND2 & HTND3: 1-30KVA
HSVC: 3-10KVA
HAVRL: 0.5-10KVA
HAVRB: 1-12KVA
HSJW: 1.5-60KVA
HSBW: 10-2000KVA
Single-phase: 85-250V
Three-phase: 250-423V
Servo motor type & Relay type
