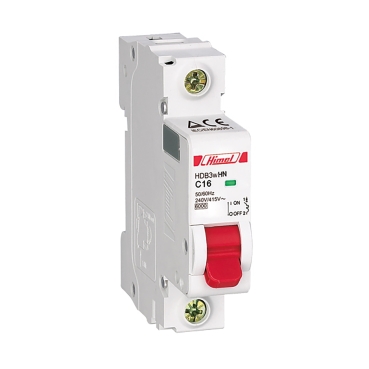

HDB3wH

The new platform of miniature circuit breaker with indicator

COR platform MCB with indicator, new generation. Offer much better performance with competitive cost. Differentiate other competitors. RoHS approved for each component, covers worldwide environmental protection requirements.

SALES SUPPORT CONTACT US
93446501170

Features

- Smart design with independent accessory installation;
- Platform upgrade which can reach whole range 6kA;
- Higher durability, reduce the maintenance cost;
- D curve increased in HDB3wHP & HDB3wPLE, 1P+N and 3P+N are added into HDB3w;
- Wider temperature environment between -20℃ to 60℃- With 240/415, 50/60Hz, multi-language user manual;
- With indicator;
- RoHS approved

Benefits

Wider application: Complete product line, complete range, and complete specification;
New members with indicators will launch soon Convenient accessory assembly: all accessories of six different types can be assembled independently without tools
Safe for users: sealed terminals, stripping torque indication, internal arc-blocked board, and CPI indicator
Rest assured to use: new members with indicator strictly follow RoHS directive to produce, and Pb, Cd, Hg, Cr6+, PBDE, and PBB are prohibited
