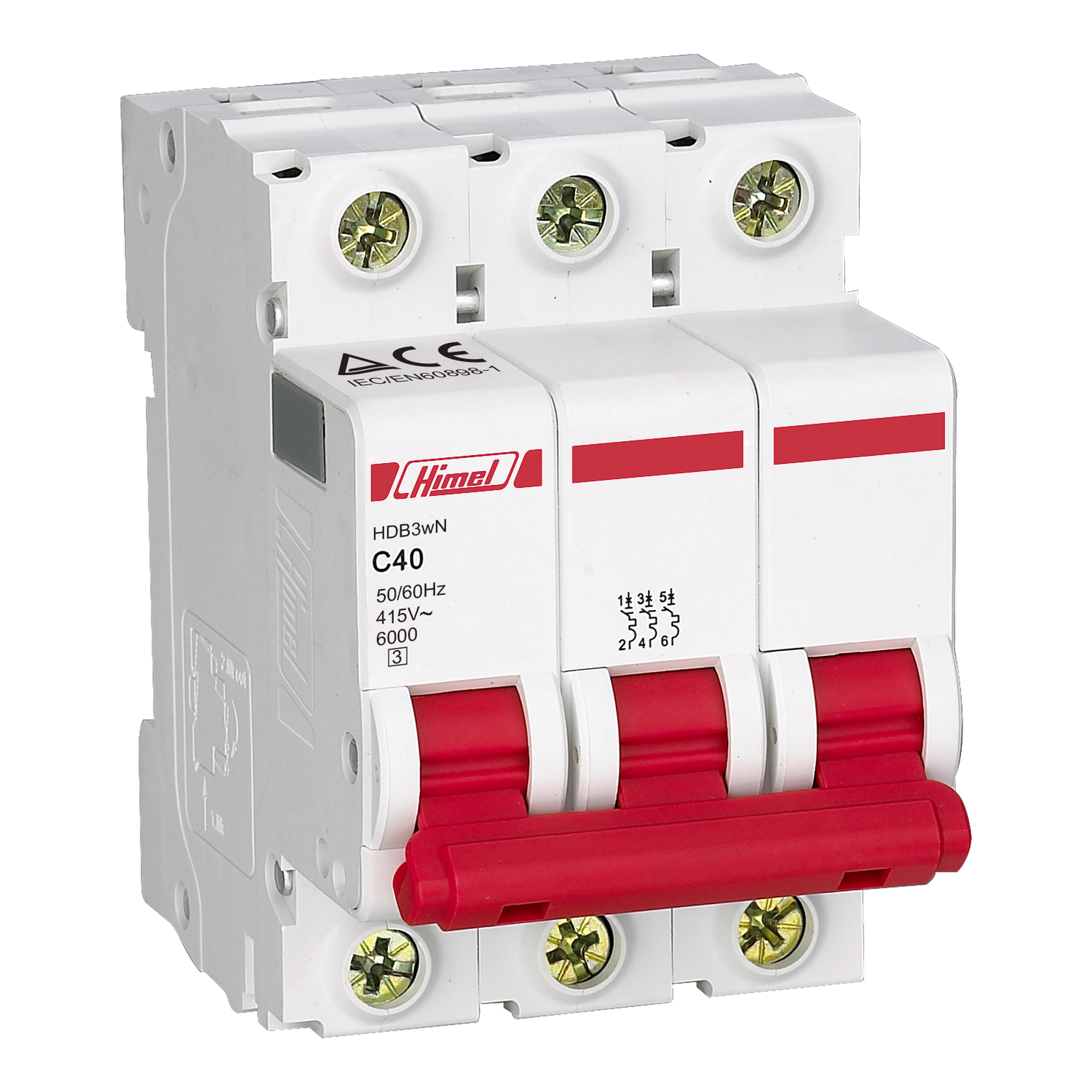

The product images shown are for illustration purpose only and may not be an exact representation of the product
HDB3WL3D63
Miniature circuit breaker HDB3W - 18 mm AC - D - 3P - 4.5 kA - 63 A
Main
Range of product
HDB3w
Product or component type
Miniature circuit-breaker
Device application
Isolation
Control
Control
Poles description
3P
[In] rated current
63 A
Complementary
[Ue] rated operational voltage
415 V AC 50/60 Hz
Breaking capacity
4.5 kA
Dielectric test voltage
2.0 kV 50/60 Hz 1 min
[Uimp] rated impulse withstand voltage
4.0 kV
Magnetic tripping limit
10...14 x In
Curve code
D
[Ui] rated insulation voltage
250.0 V between phase and ground
500.0 V between phases
500.0 V between phases
Suitability for isolation
Yes
Mounting support
35 mm DIN rail
Protection type
Overload protection
Short-circuit protection
Short-circuit protection
Cable entry
Top
Bottom
Bottom
Mechanical durability
25000 cycles
Electrical durability
6000 cycles
IP degree of protection
IP20
Overvoltage category
II
Provision for padlocking
Handle padlockable in on and off position
Connections - terminals
Forked type tag connectors
Clamping connection capacity
<= 25 mm²
Tightening torque
3 N.m
Height
80 mm
Width
53.099999999999994 mm
Depth
78.5 mm
Embedding depth
61 mm
Environment
Shock resistance
30 gn (duration = 11.0 ms) for 3 shocks
Ambient air temperature for operation
-20…60 °C
Trip unit technology
Thermal-magnetic
Ambient air temperature for storage
-40…70 °C
Operating altitude
0...2000 m
Product certifications
CE
CB
TÜV
CB
TÜV
Pollution degree
2
Standards
EN/IEC 60898-1
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
