HDB3WLE1252C125

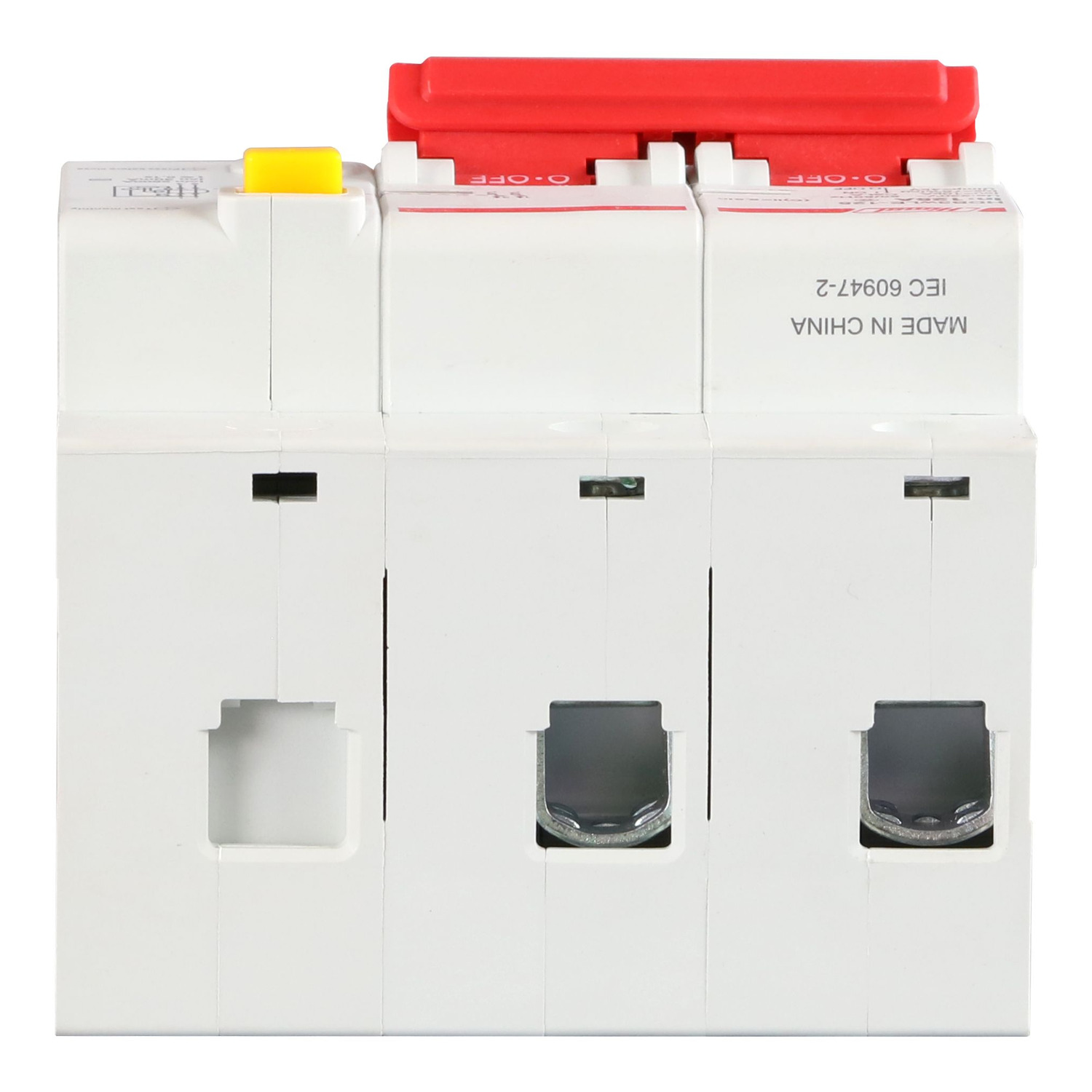

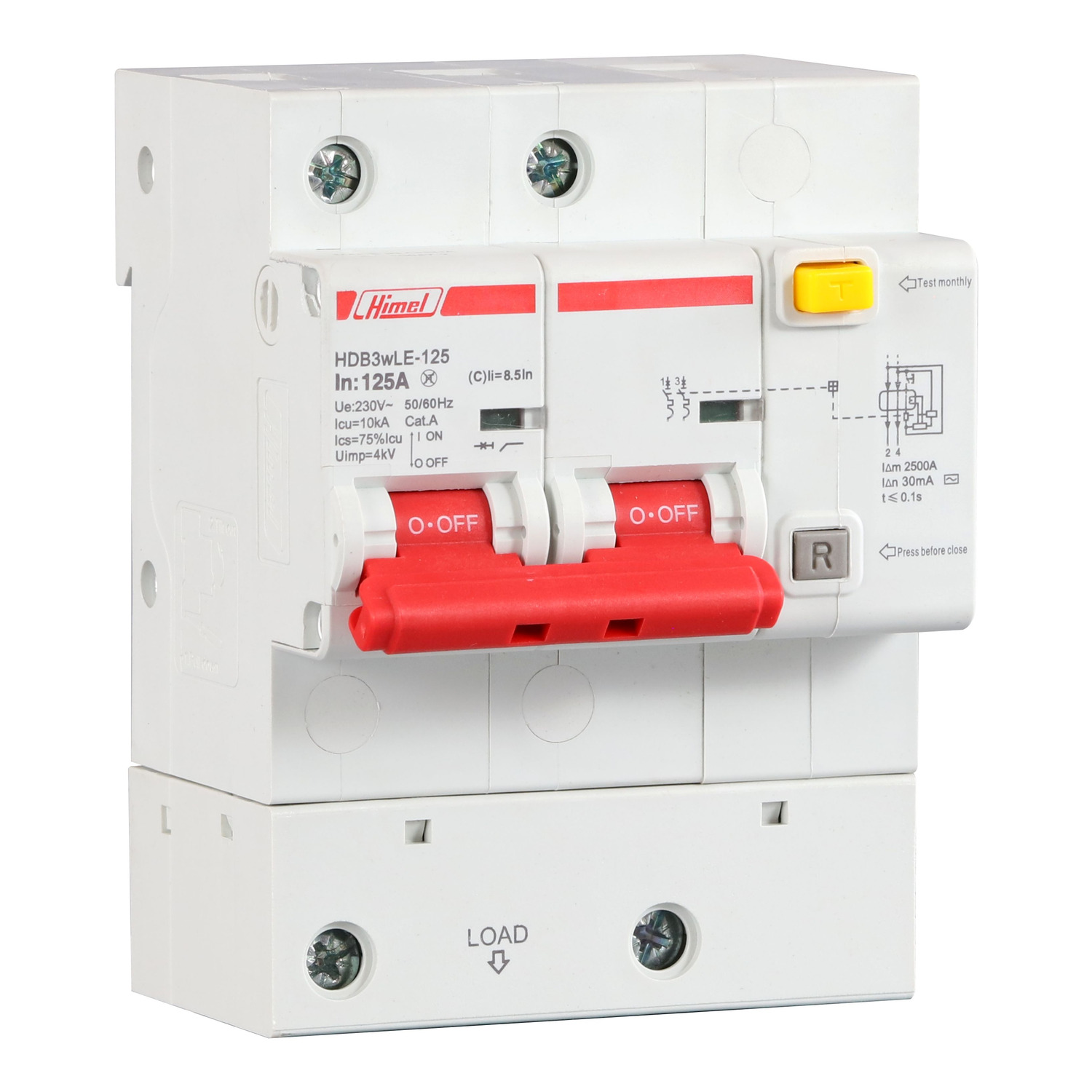

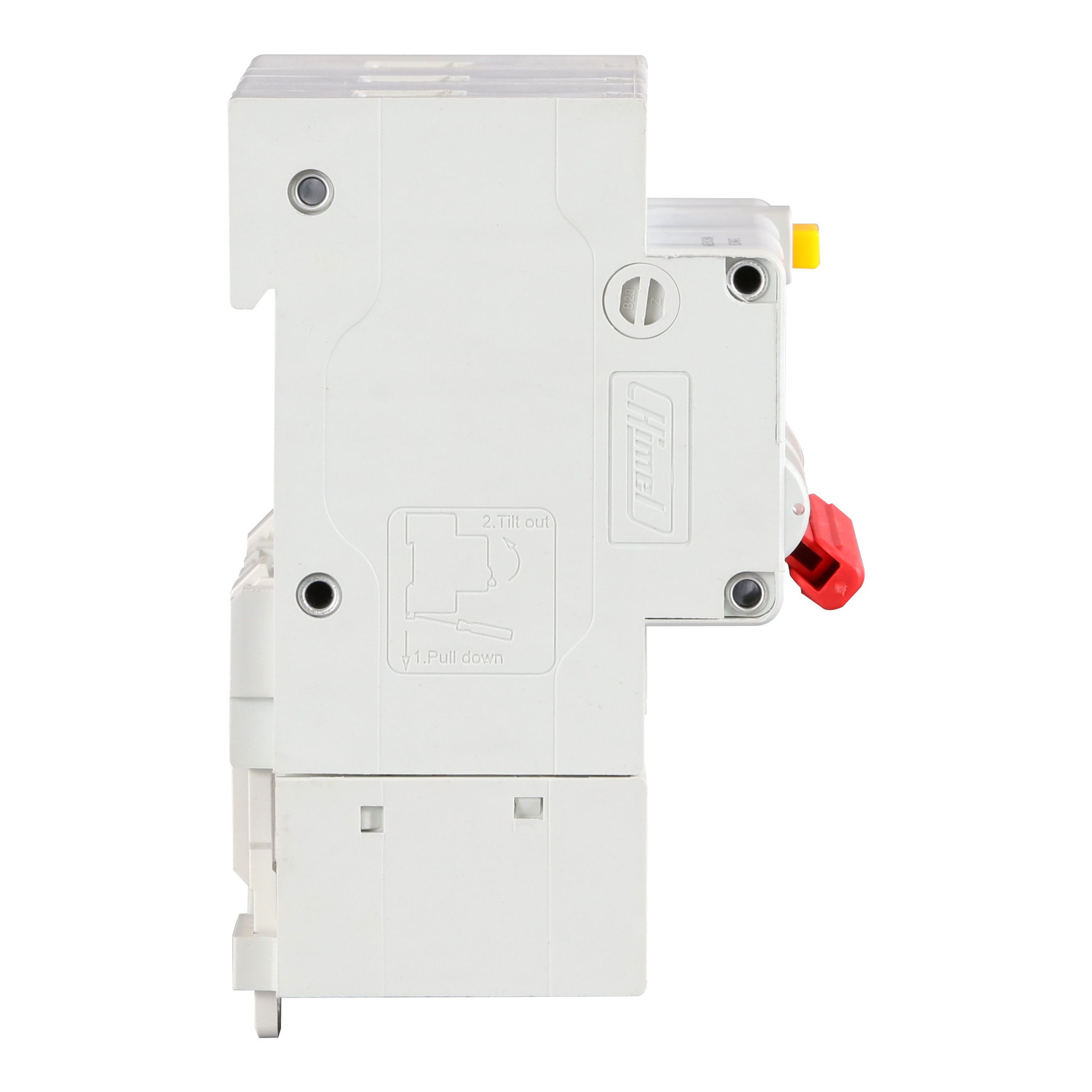

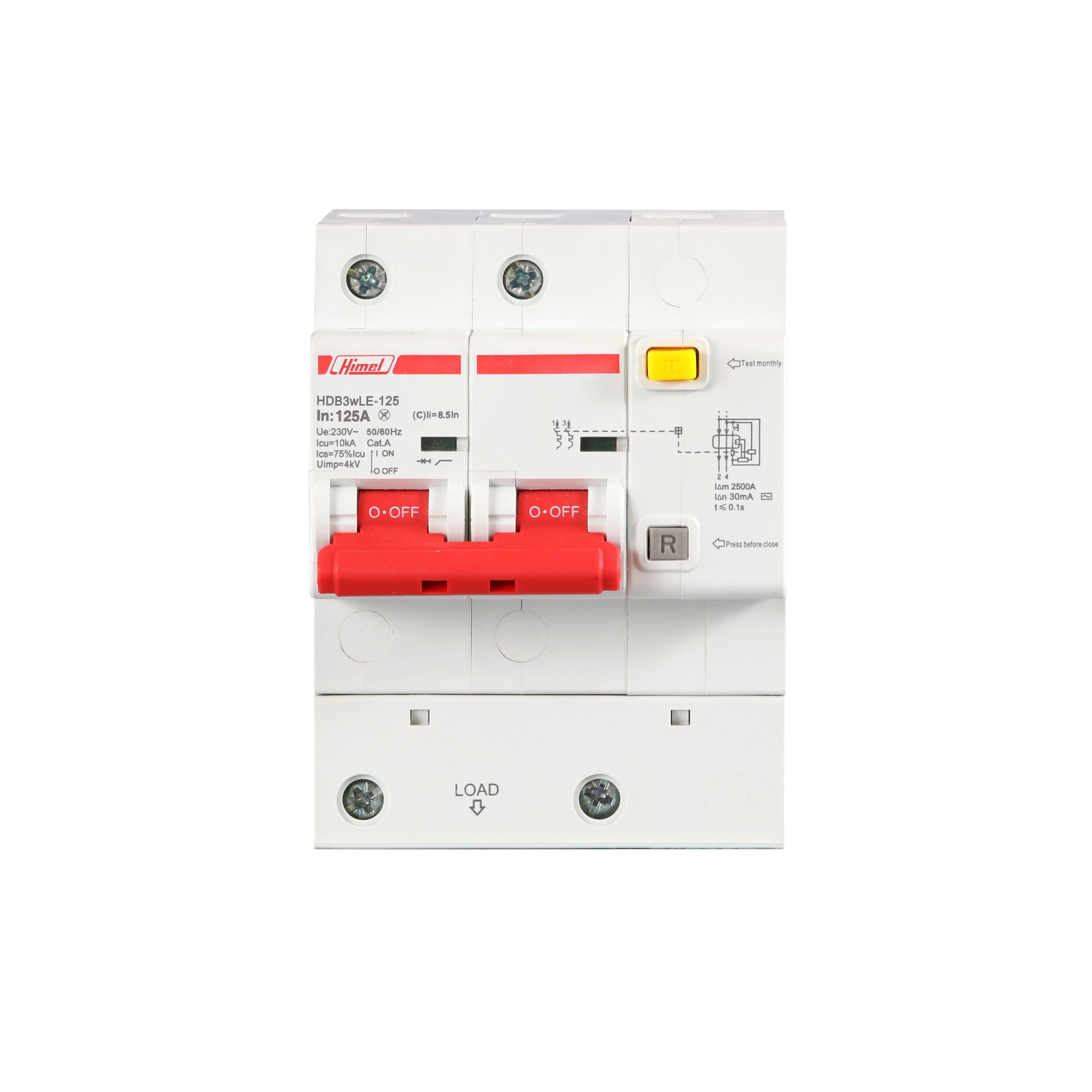

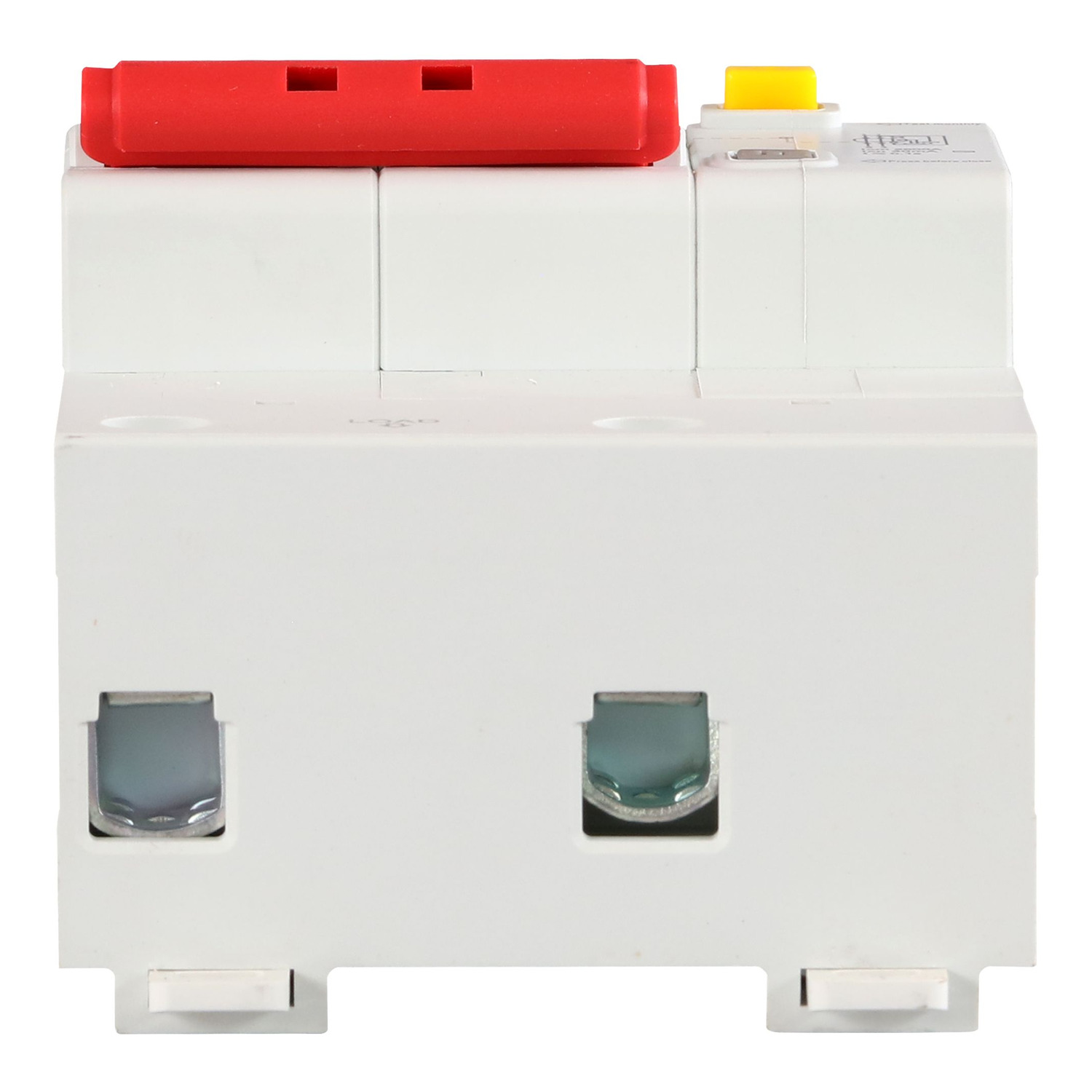

Residual Current Operated Circuit Breaker HDB3wLE-125 - 2P - C - 125A
Main
Range of product
HDB3wLE-125
Product or component type
Residual current breaker with overcurrent protection (RCBO)
Mechanical durability
8500 cycles
Electrical durability
3000 cycles
Suitability for isolation
Yes
Trip unit technology
Thermal-magnetic
Device application
Isolation
Control
Control
Complementary
Poles description
2P
[In] rated current
125 A
Reset
Manual reset earth leakage
Manual reset overcurrent
Manual reset overcurrent
[Ue] rated operational voltage
230 V AC 50...60 Hz
Residual current
30.0 mA
[Uimp] rated impulse withstand voltage
4.0 kV
Curve code
C
Magnetic tripping limit
8.5 x In
Breaking capacity
10.0 kA
[Ui] rated insulation voltage
250 V between phase and neutral
500 V between phases
500 V between phases
Protection type
Short-circuit protection
Overload protection
Earth-leakage protection
Residual current breaker with overcurrent protection (RCBO)
Overload protection
Earth-leakage protection
Residual current breaker with overcurrent protection (RCBO)
Cable entry
Top
Mounting support
35 mm DIN rail
Clamping connection capacity
<= 50 mm²
Tightening torque
3.5 N.m
Provision for padlocking
Handle padlockable in on and off position
Connections - terminals
Forked type tag connectors
Height
86.4 mm
Width
81.0 mm
Depth
78 mm
Environment
Environmental characteristic
High temperature: category 2 28 cycles conforming to IEC 60068-2
Humidity resistant: category 2 28 cycles conforming to IEC 60068-2
Humidity resistant: category 2 28 cycles conforming to IEC 60068-2
Dielectric test voltage
2.0 kV 50...60 Hz 1 min
Shock resistance
30 gn (duration = 11.0 ms) for 3 shocks
IP degree of protection
IP20
Pollution degree
2
Ambient air temperature for operation
-20…60 °C
Standards
IEC 61009-1
Product certifications
CE
