HDB3WPAC20

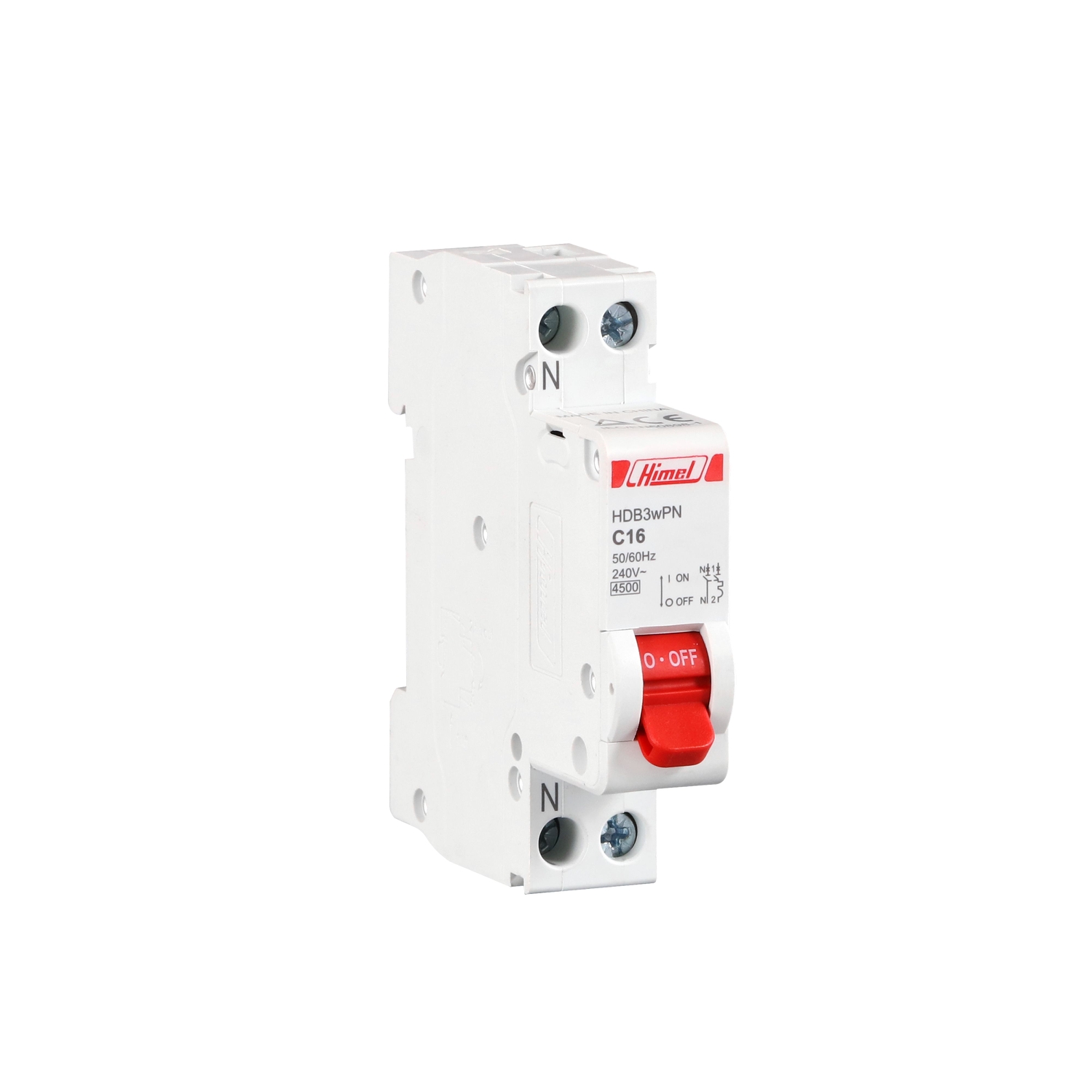

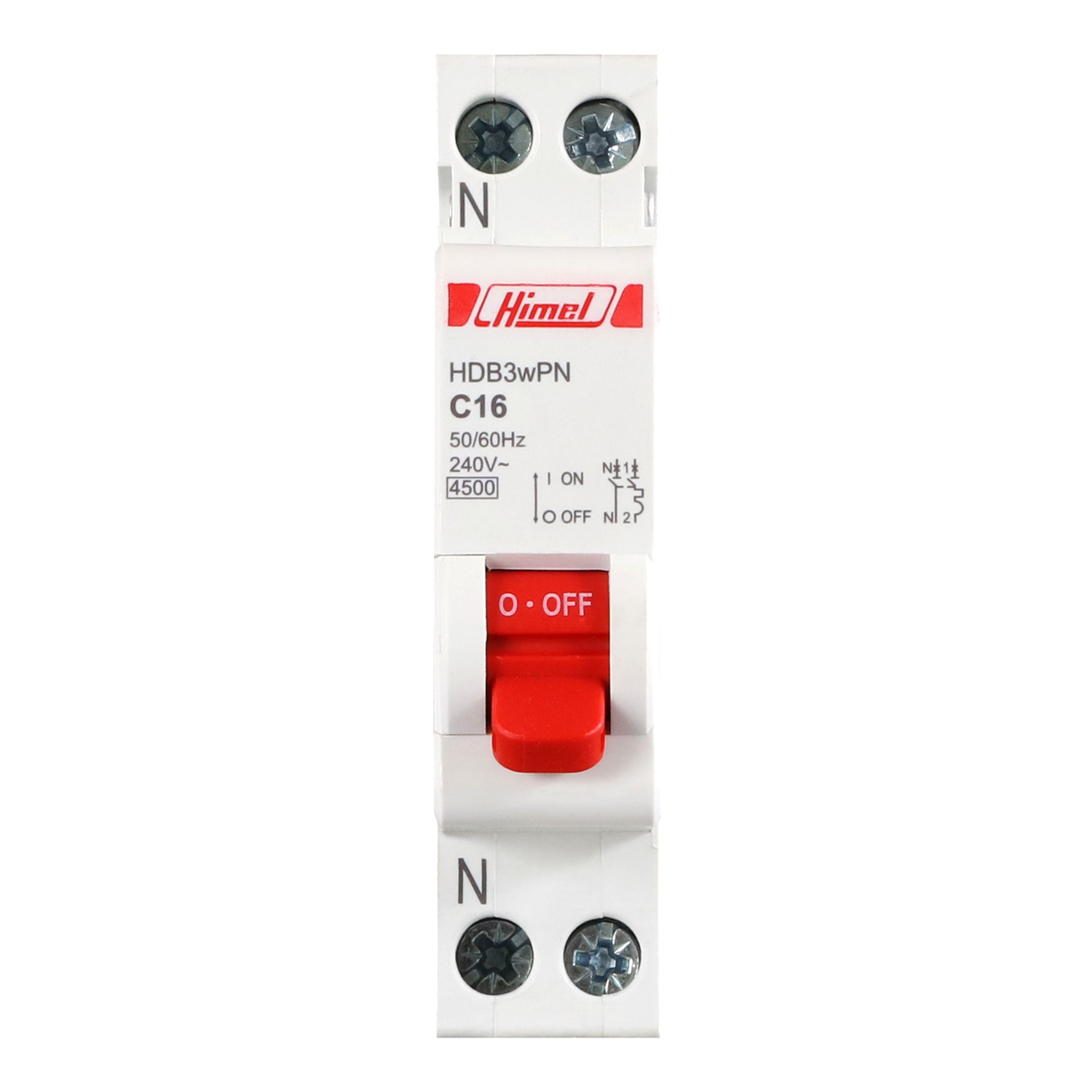

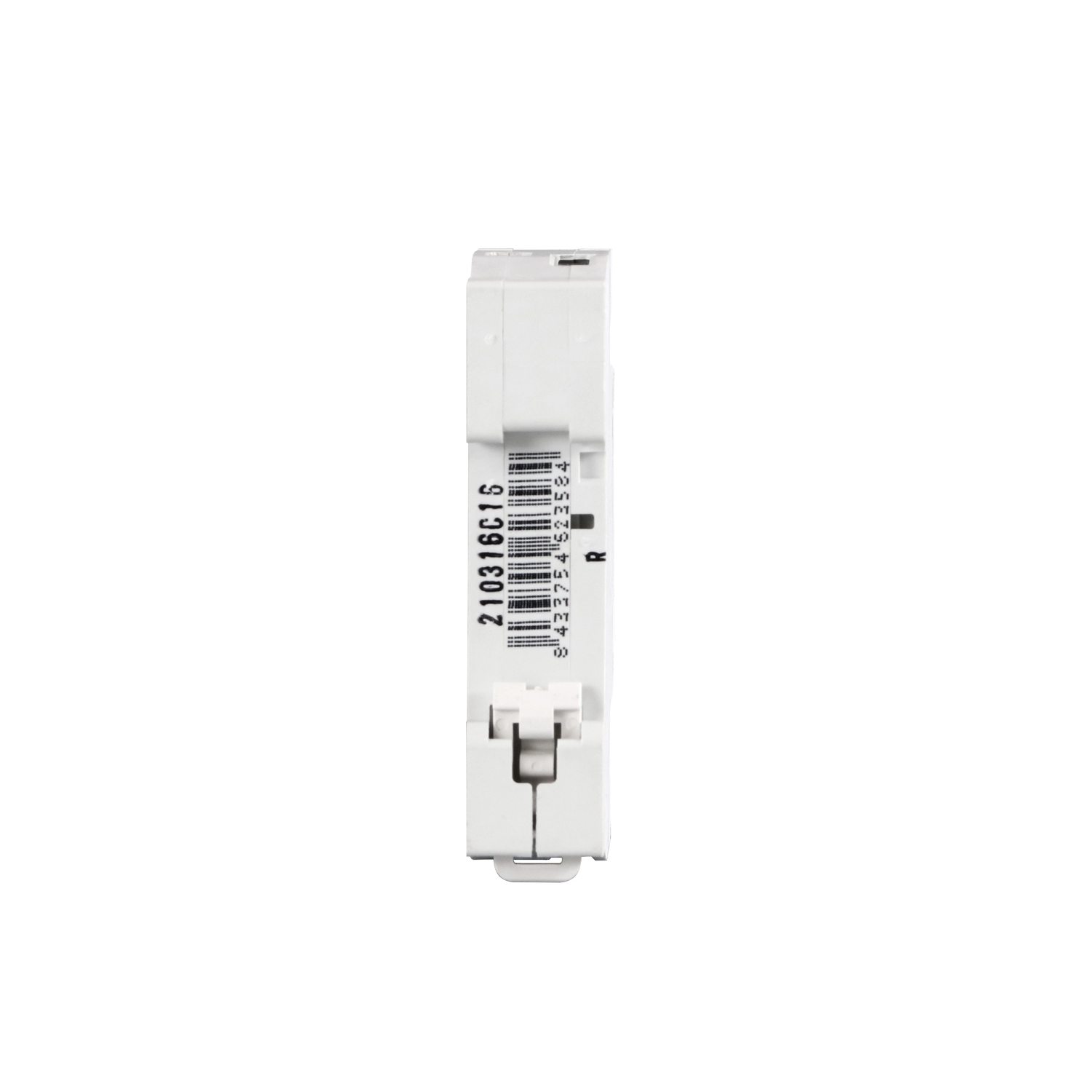

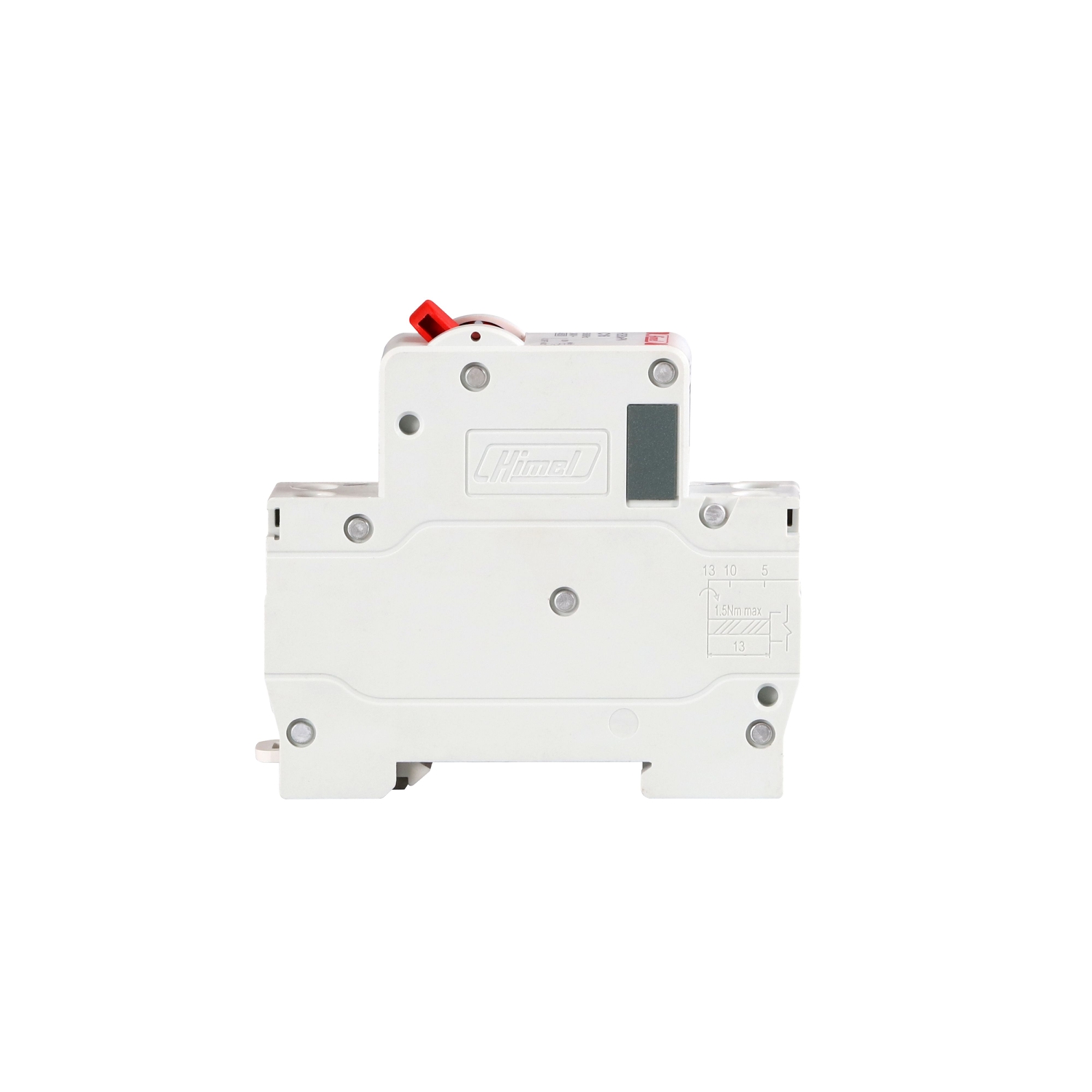

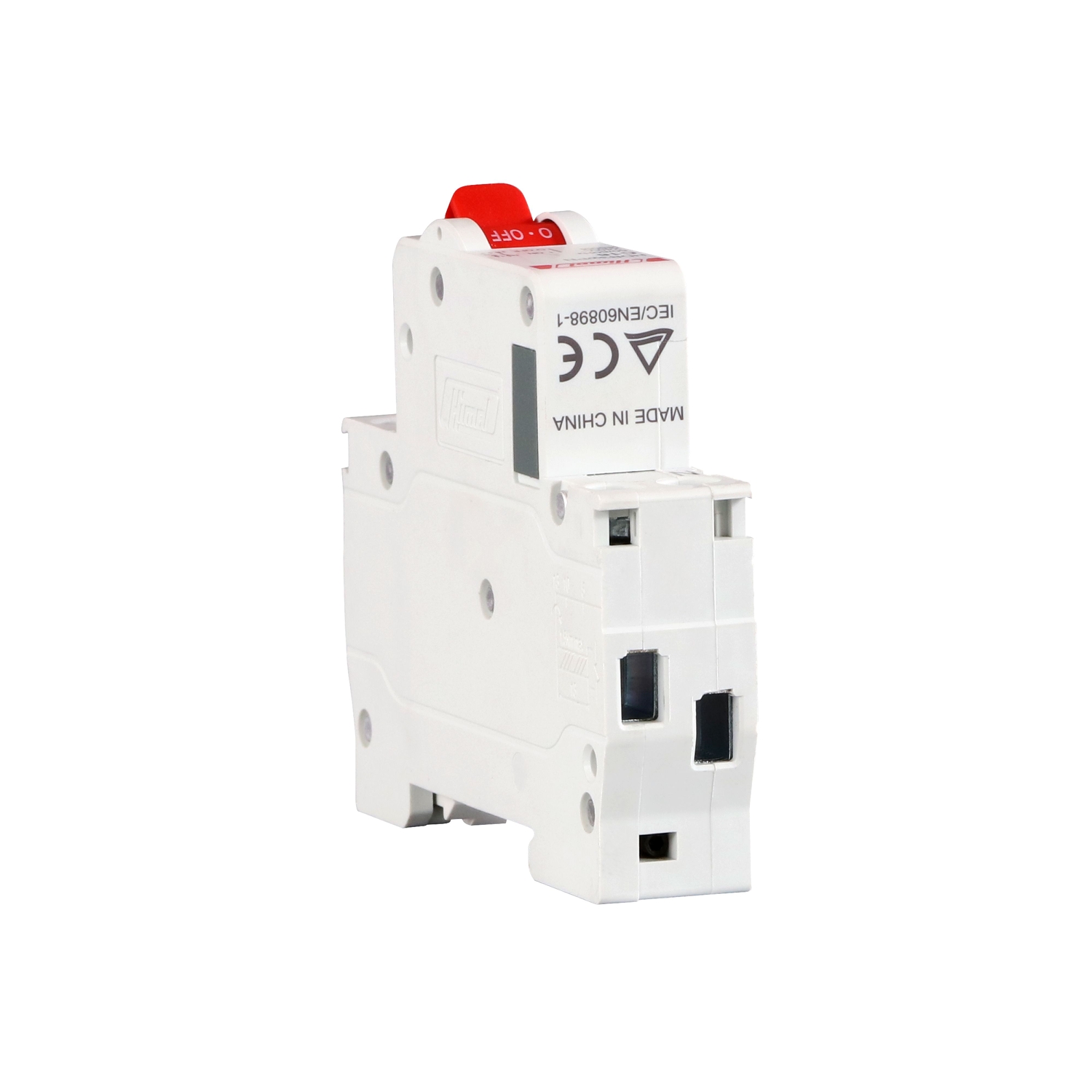

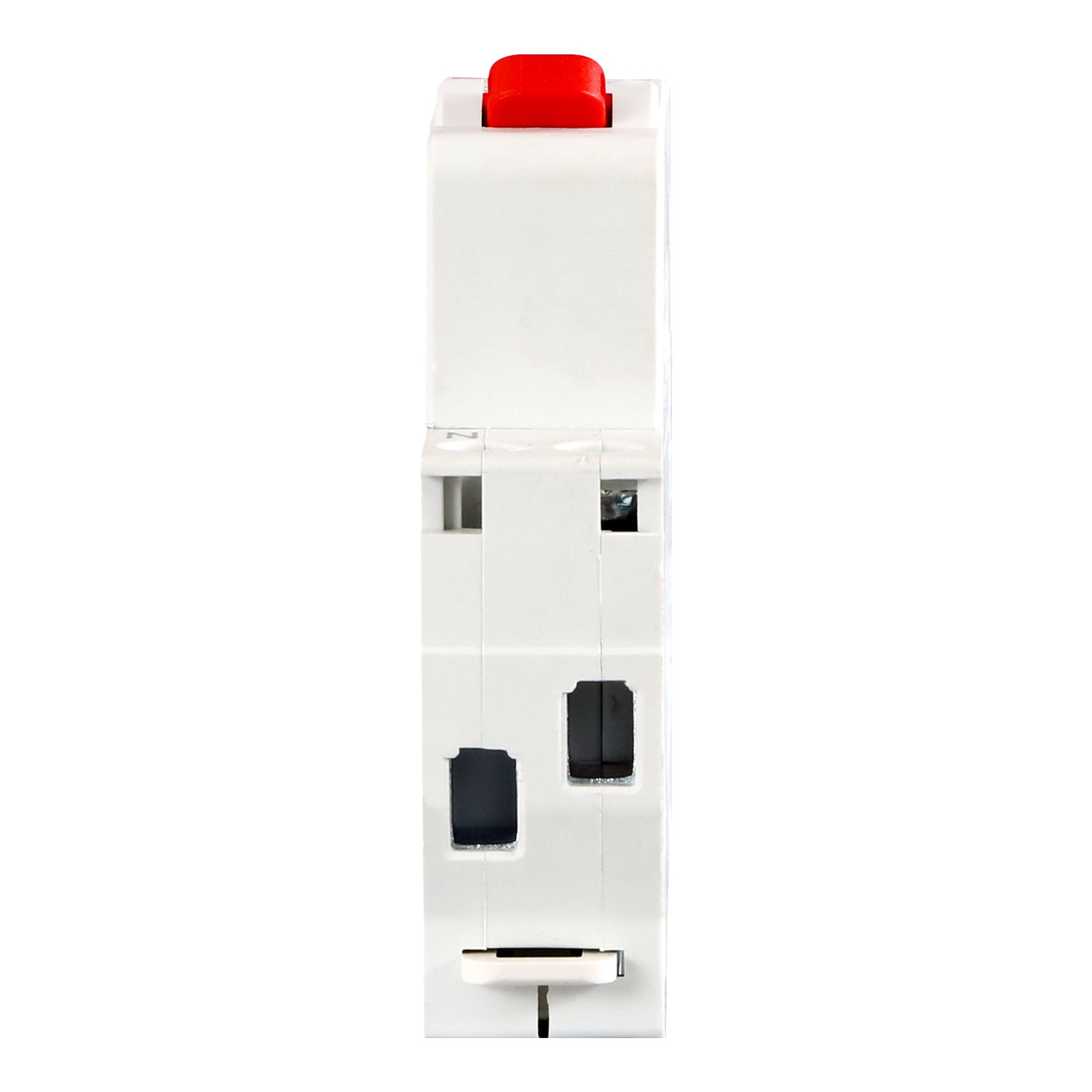

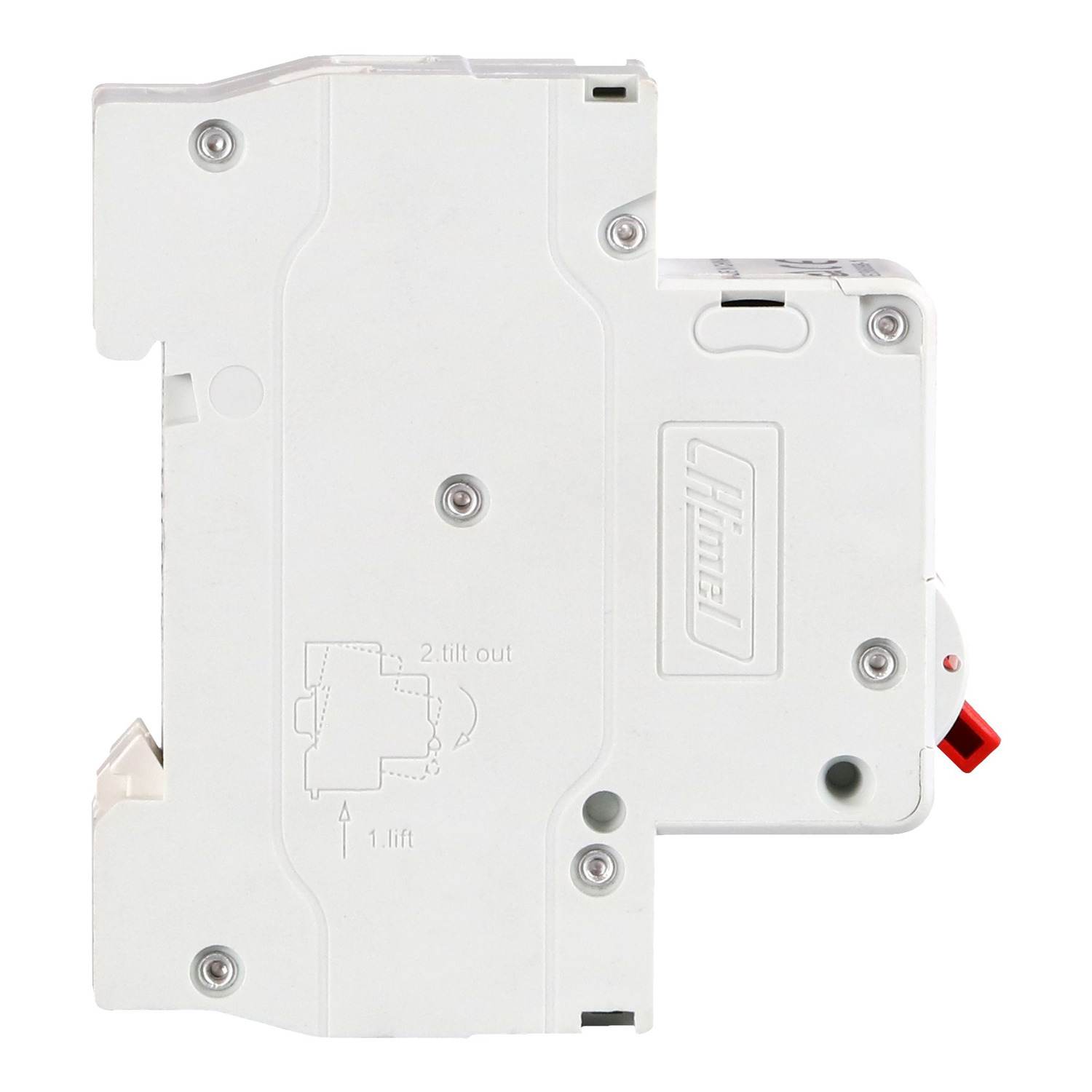

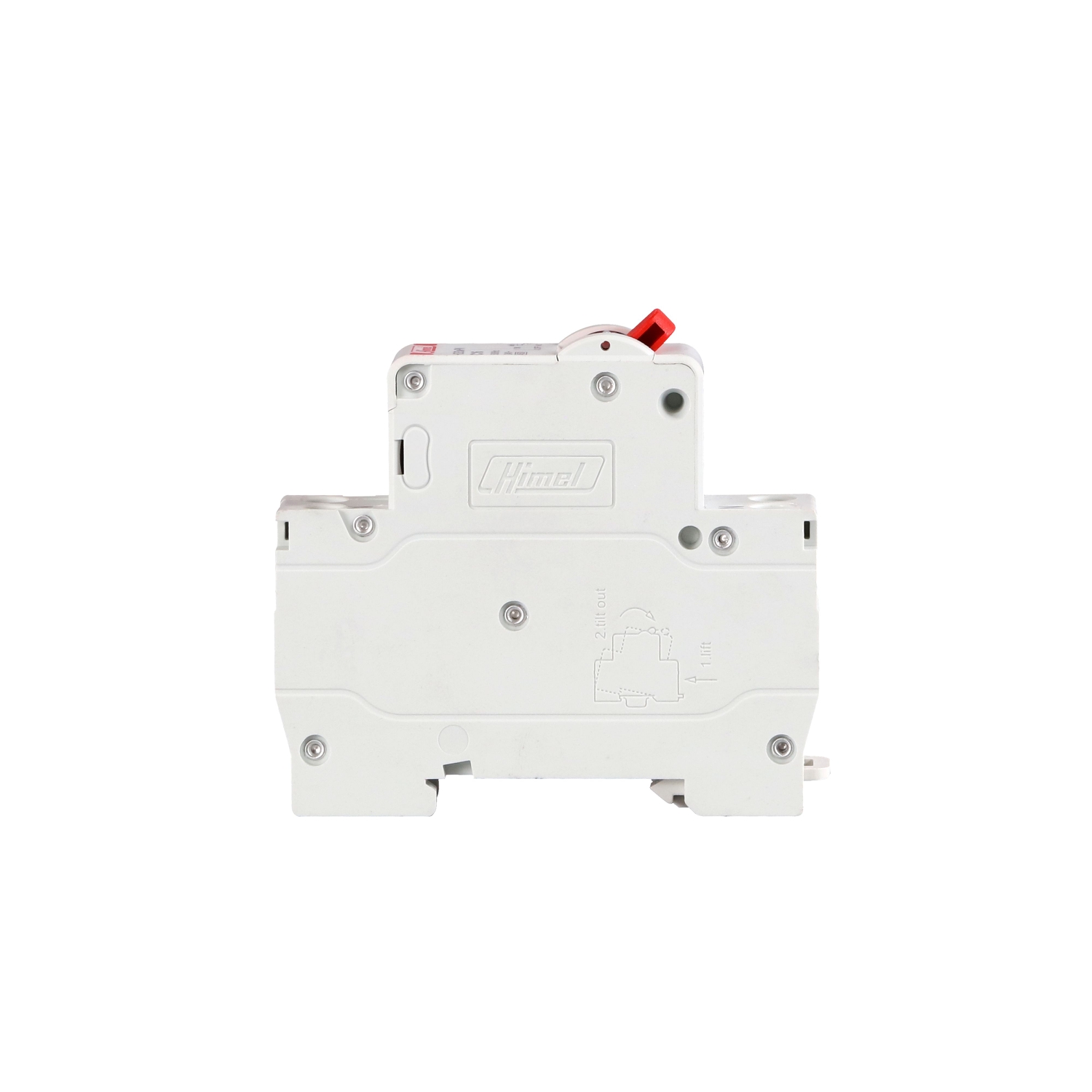

miniature circuit breaker HDB3WP - Phase neutral - 3 kA - 1P+N - C - 20 A
Main
Range of product
HDB3wP
Product or component type
Miniature circuit-breaker
Device application
Isolation
Control
Control
Trip unit technology
Thermal-magnetic
Suitability for isolation
Yes
Mechanical durability
15000.0 cycles
Electrical durability
10000.0 cycles
Complementary
Poles description
1P + N
[In] rated current
20 A
[Ue] rated operational voltage
240 V AC 50/60 Hz
Curve code
C
Magnetic tripping limit
5...10 x In
Breaking capacity
3.0 kA
[Ui] rated insulation voltage
250.0 V between phase and ground
[Uimp] rated impulse withstand voltage
4.0 kV
Cable entry
Top
Bottom
Bottom
Mounting support
35 mm DIN rail
Protection type
Overload protection
Short-circuit protection
Short-circuit protection
Connections - terminals
Forked type tag connectors
Clamping connection capacity
<= 16 mm²
Tightening torque
2 N.m
Environment
Dielectric test voltage
2.0 kV 50/60 Hz 1 min
Shock resistance
30 gn (duration = 11.0 ms) for 3 shocks
Standards
EN/IEC 60898-1
IP degree of protection
IP20
Pollution degree
2
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-40…70 °C
