HDB9PN40C16

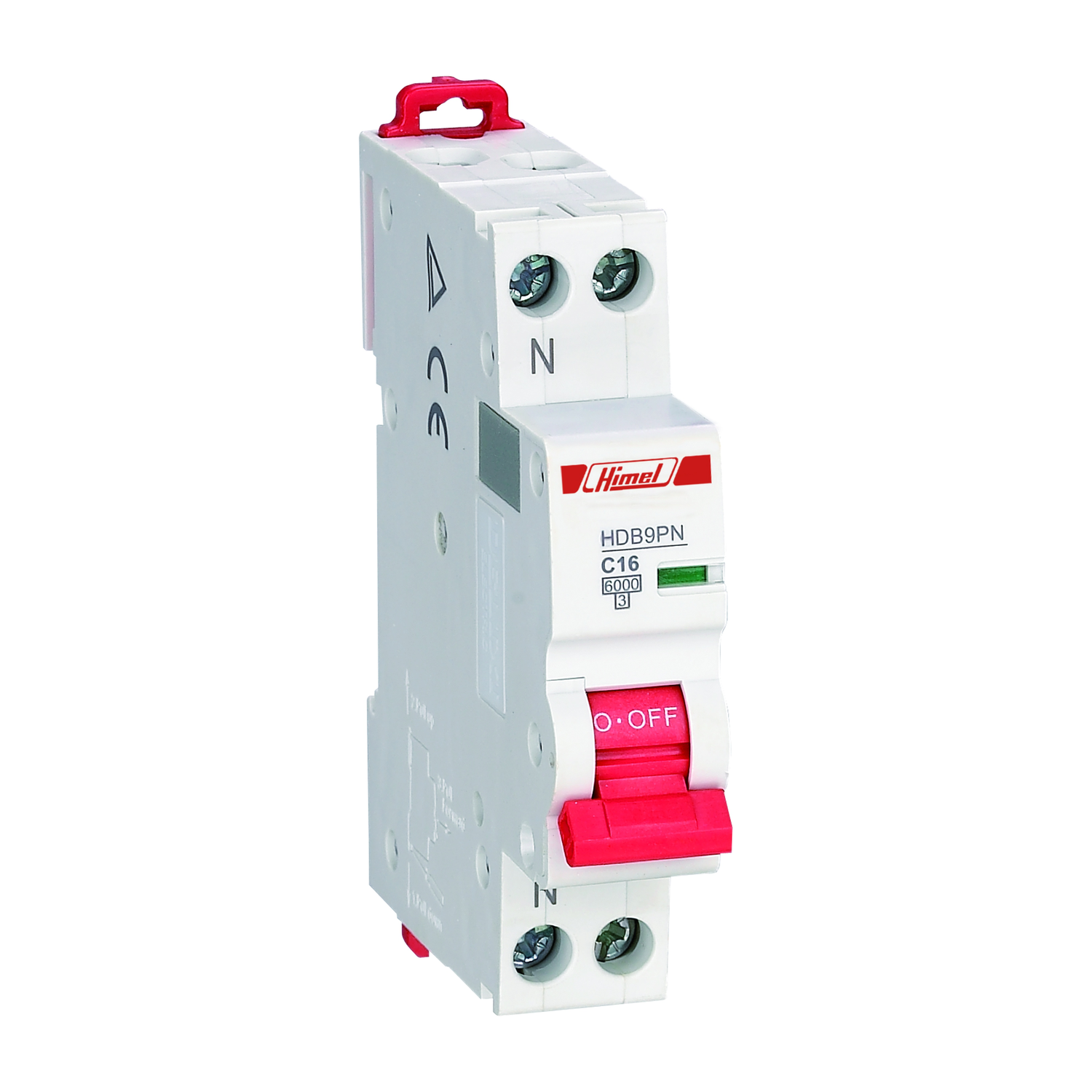

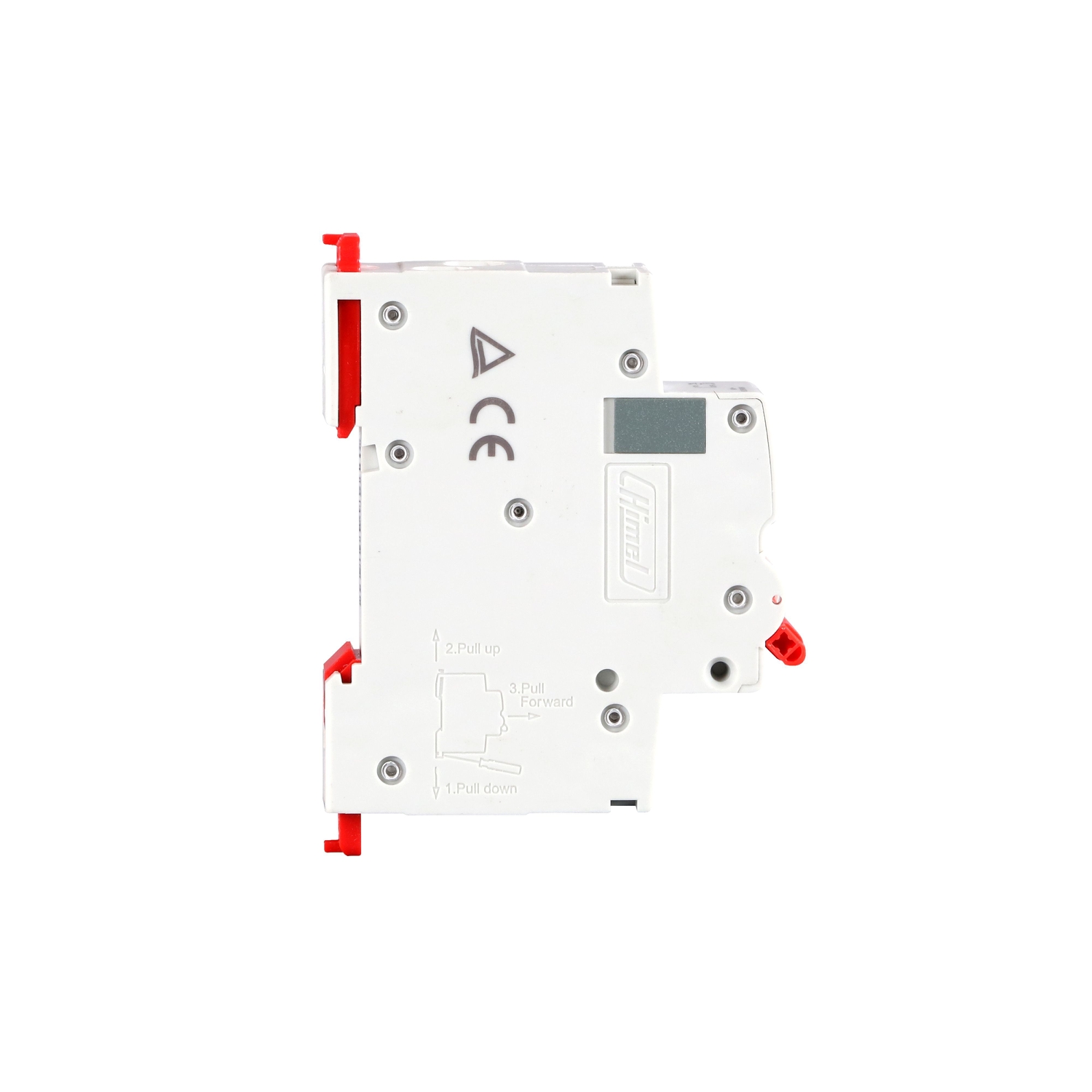

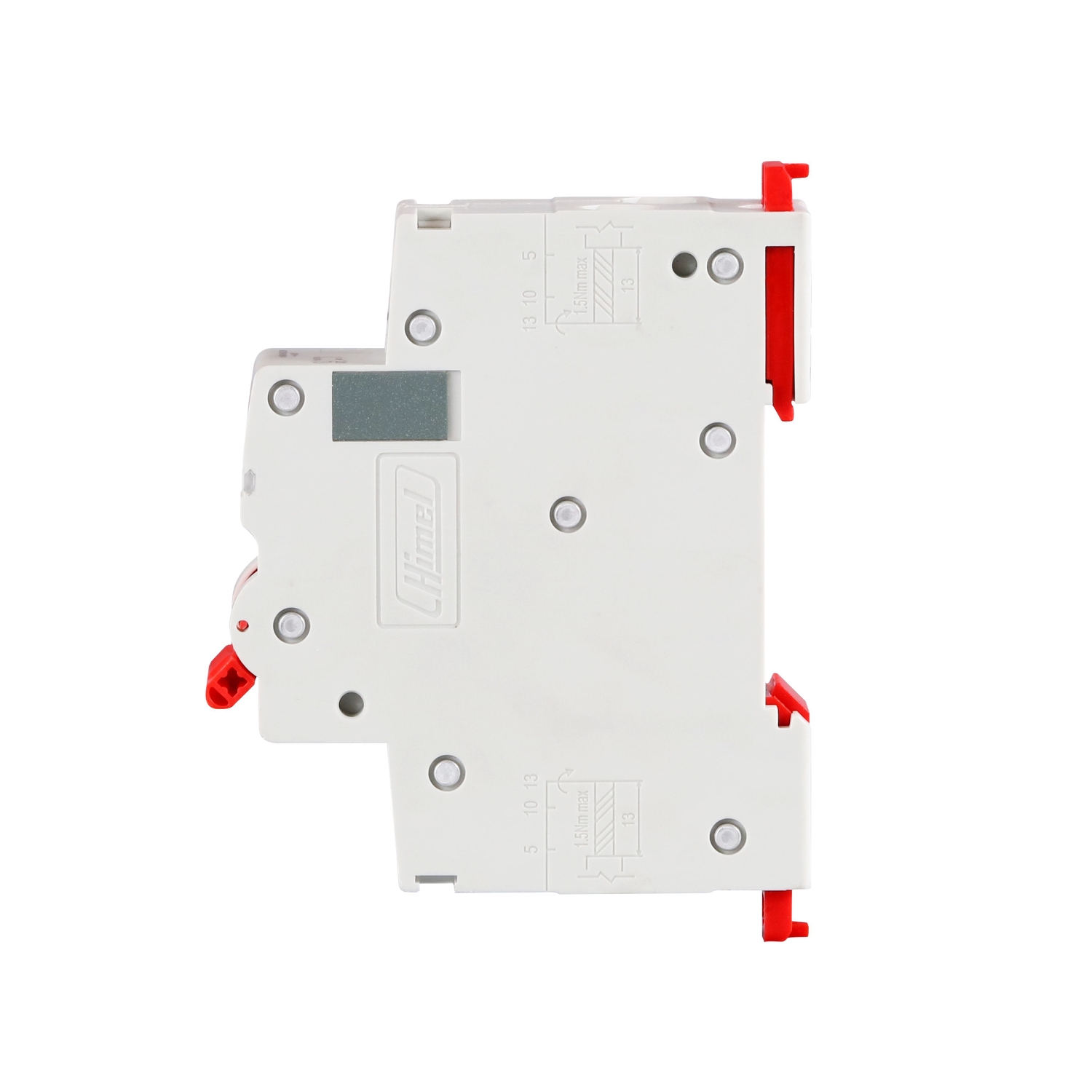

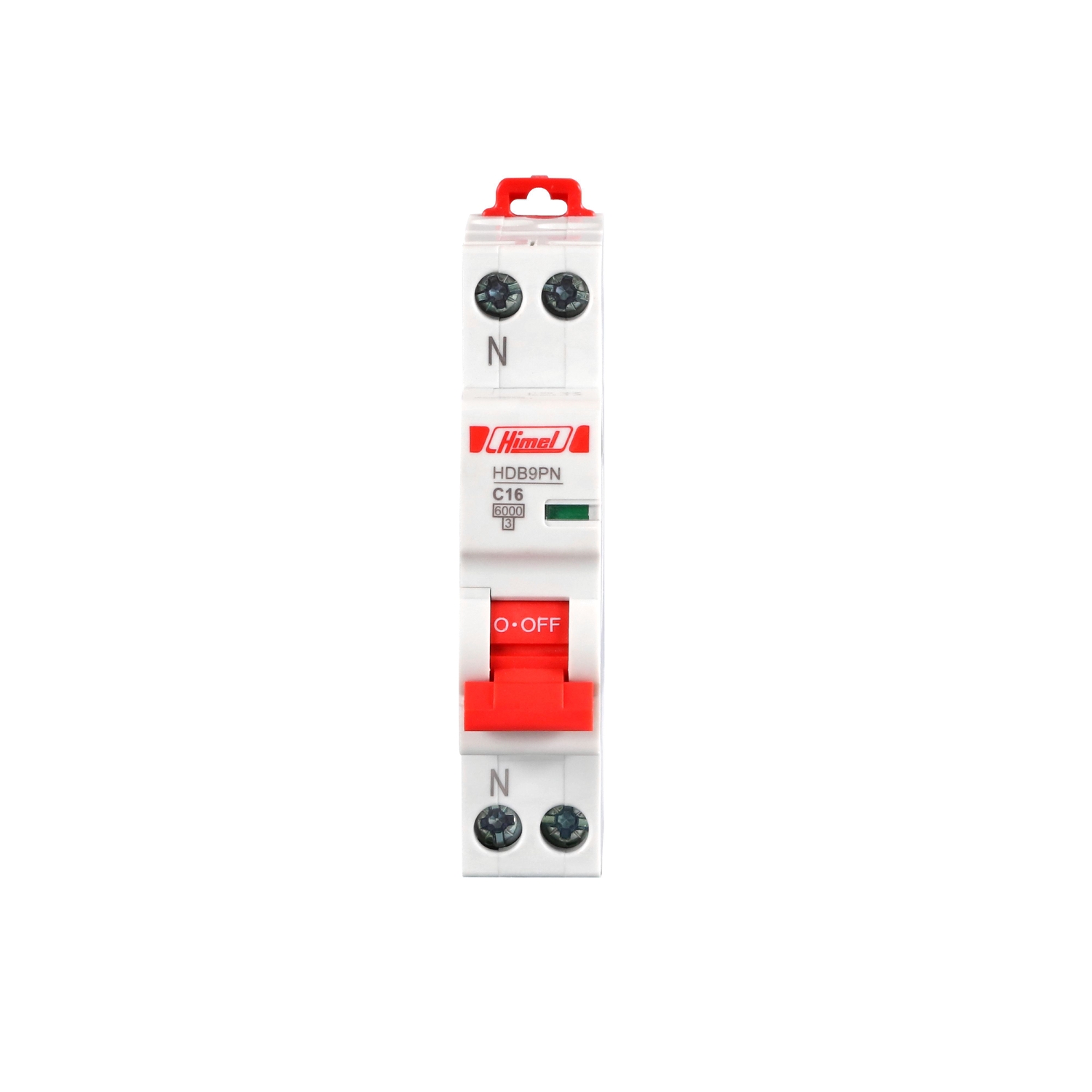

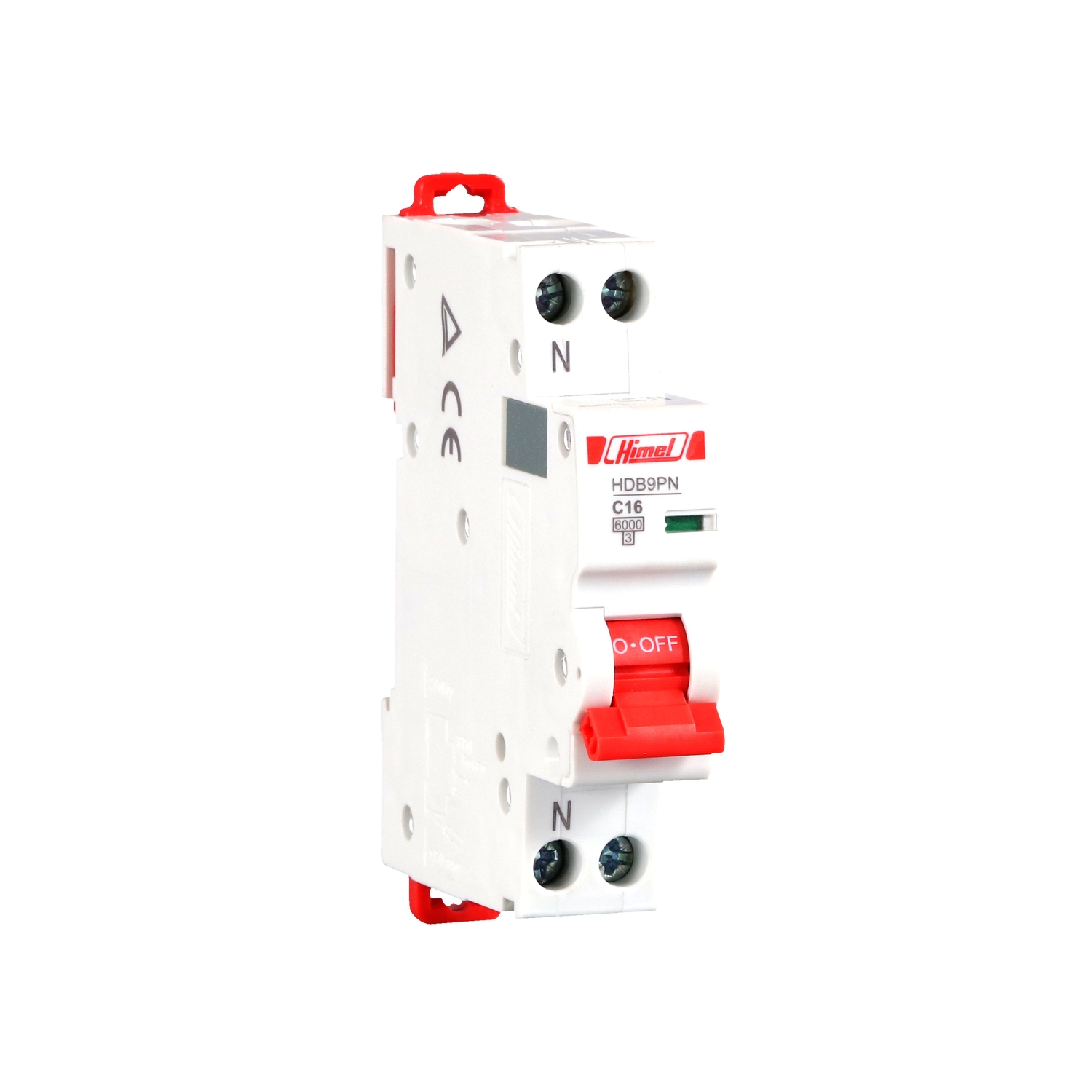

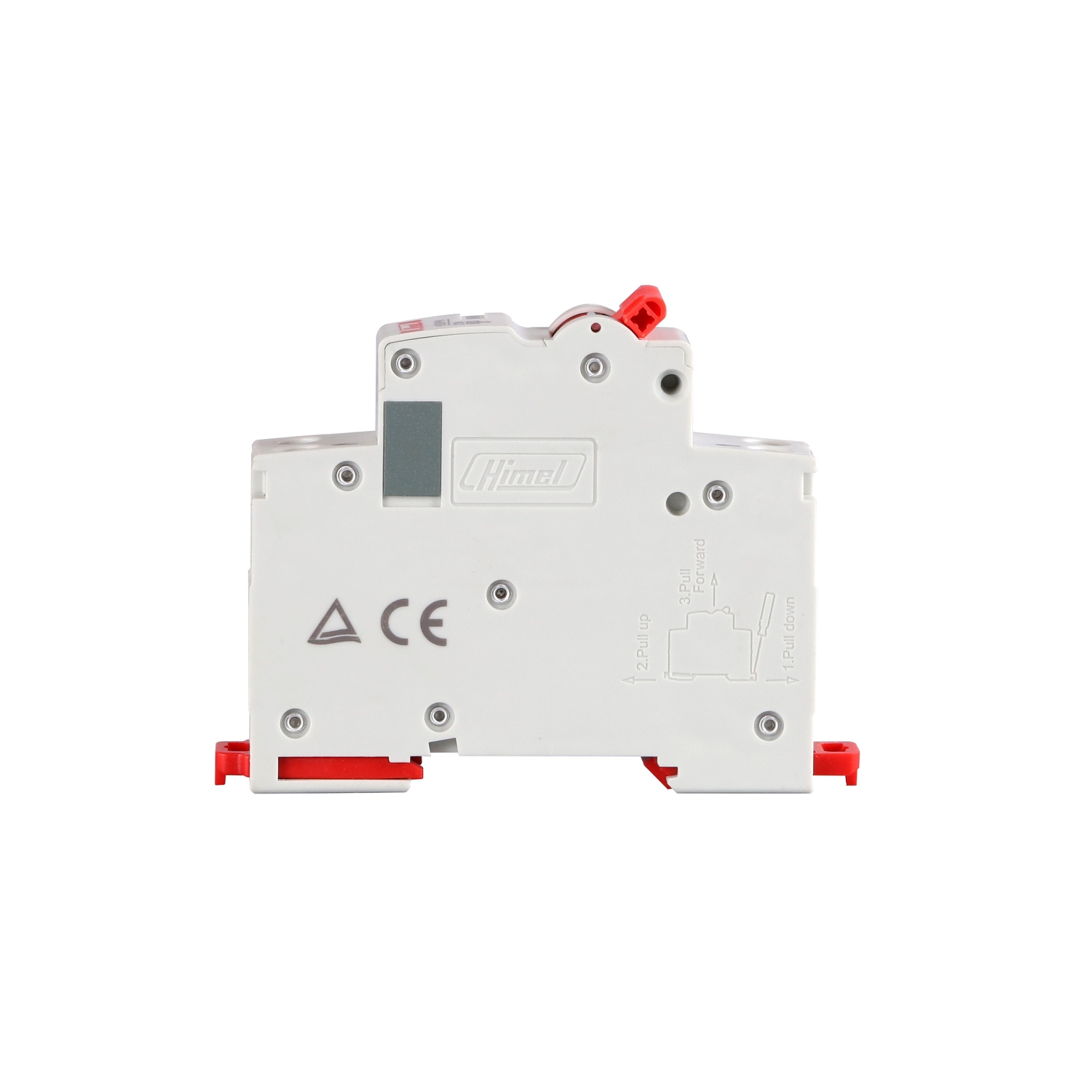

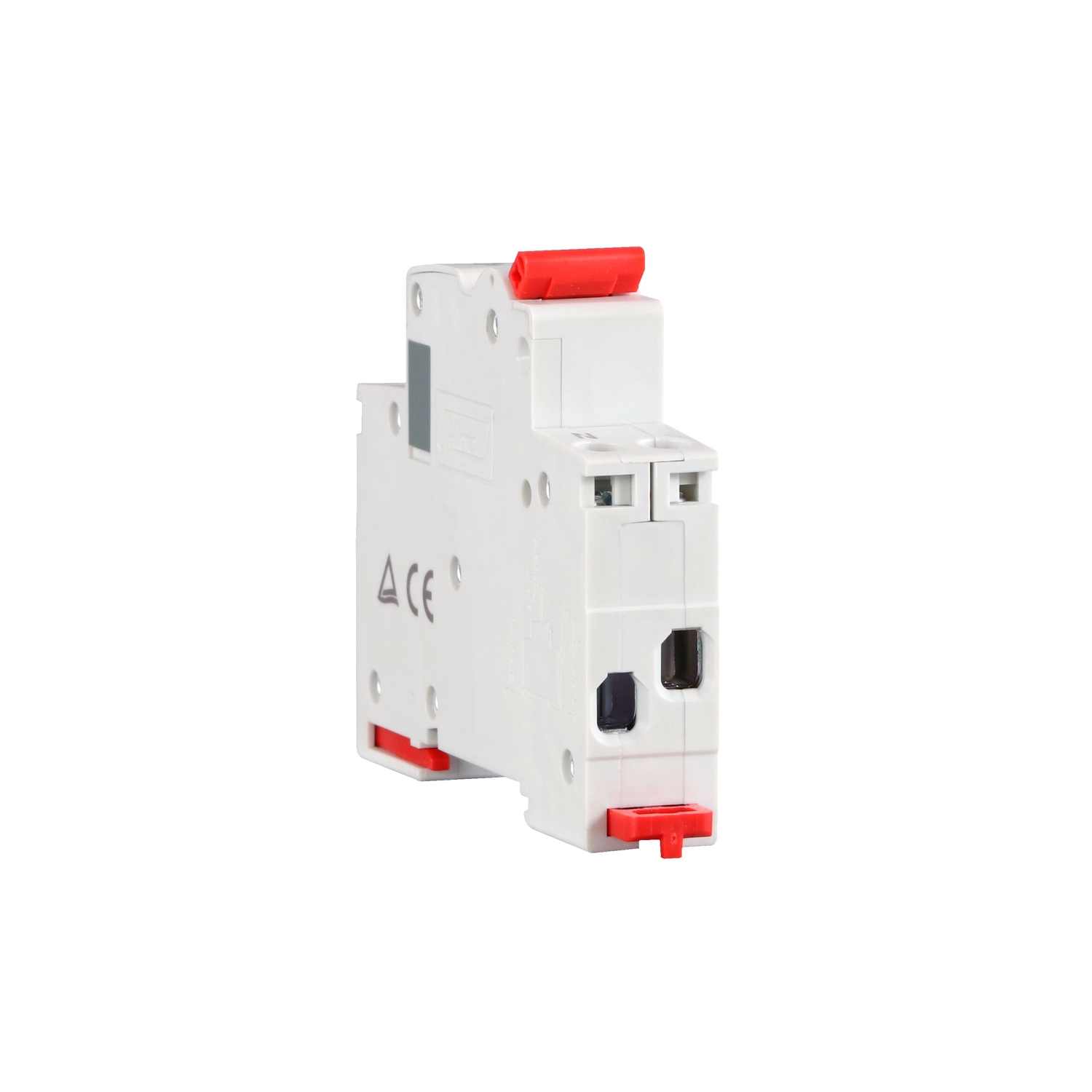

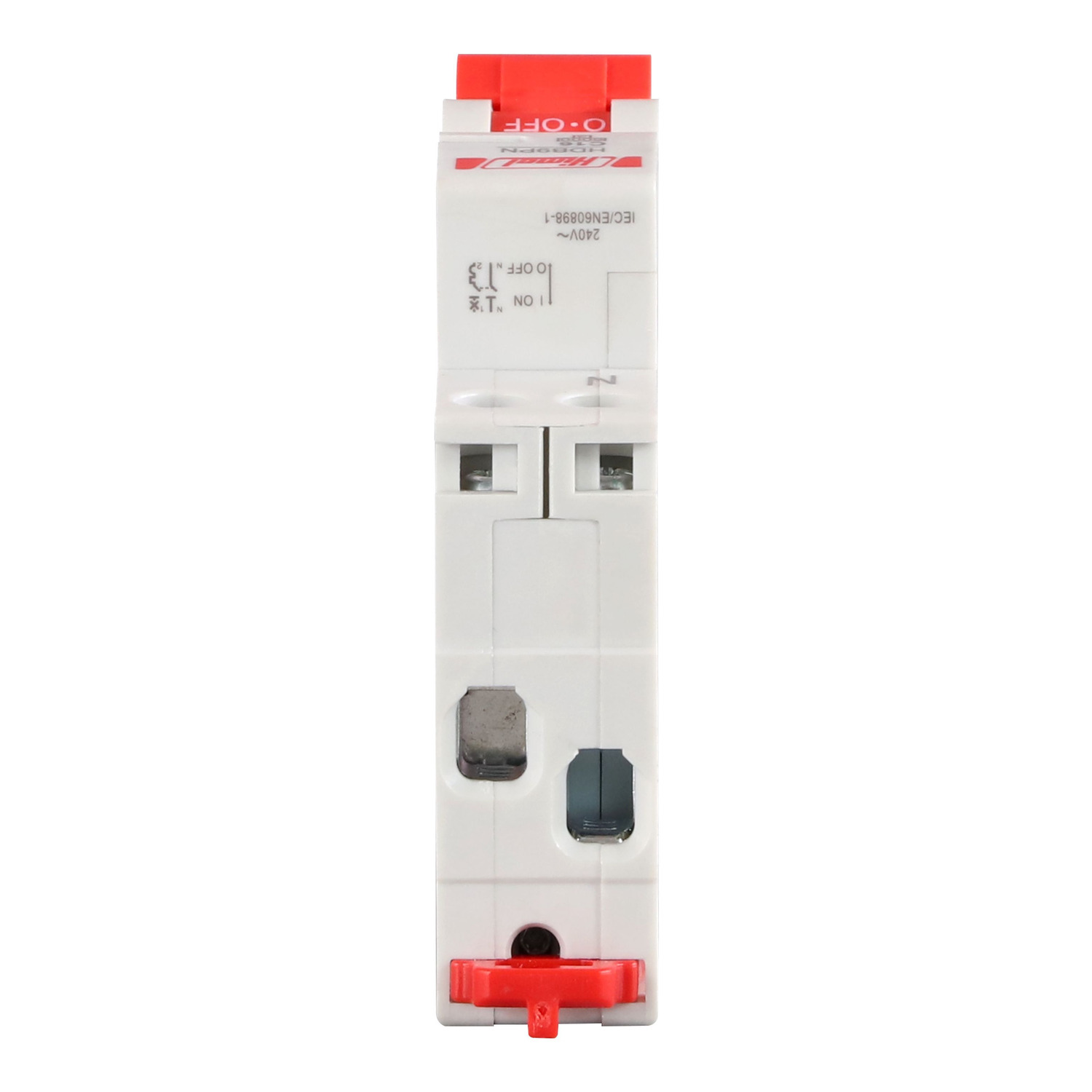

miniature circuit breaker HDB9PN-40 - Phase neutral 6 kA - 1P+N - C - 16 A
Main
Range of product
HDB9p
Product or component type
Miniature circuit-breaker
Device application
Control
Insulation
Insulation
Mechanical durability
20000 cycles
Electrical durability
10000 cycles
Screw type
M4
Complementary
Poles description
1P + N
[In] rated current
16 A
[Ue] rated operational voltage
240 V AC
Curve code
C
Magnetic tripping limit
5...10 x In
Breaking capacity
6 kA
[Ui] rated insulation voltage
500 V
Mounting support
35 mm DIN rail
9 mm pitches
2.0
Clamping connection capacity
<= 10 mm²
Tightening torque
2…3 N.m
Height
93.1 mm
Width
18.0 mm
Depth
75.5 mm
Embedding depth
62.0 mm
Environment
Standards
EN/IEC 60898-1
Product certifications
CB
CE
TÜV
RoHS
CE
TÜV
RoHS
Tropicalisation
2
Ambient air temperature for operation
-25…70 °C
Offer Sustainability
RoHS exemption information
Yes
