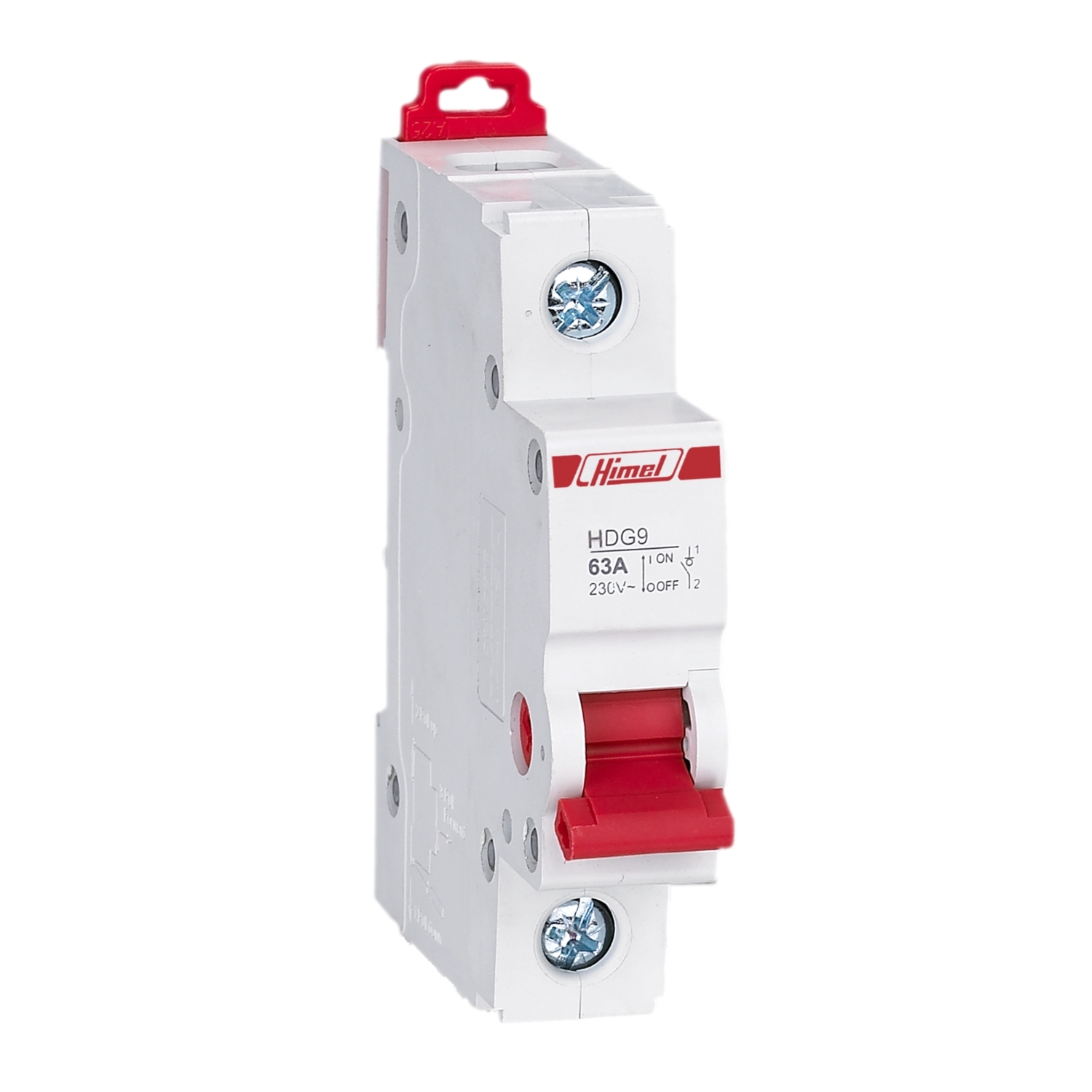

Switch disconnector HDG9-125 - high durability - 1P - 63 A
Main
Range of product
HDG9
Product or component type
Switch disconnector
Device application
Isolation
Complementary
Poles description
1P
[In] rated current
63 A
[Ue] rated operational voltage
230 V
Network type
AC
Network frequency
50...60 Hz
Electrical durability
20000.0 cycles
Mechanical durability
5000.0 cycles
[Icw] rated short-time withstand current
1.26 kA
Utilisation category
AC-22A
Tropicalisation
2
[Ui] rated insulation voltage
500 V
Provision for padlocking
Handle padlockable in on and off position
Mounting support
35 mm DIN rail
Clamping connection capacity
<= 50 mm²
Tightening torque
3.5 N.m
Electrical shock protection class
Class II
Standards
IEC 60947-3
Product certifications
CE
RoHS
TÜV
CB
RoHS
TÜV
CB
Height
92 mm
Width
18.0 mm
Depth
78.5 mm
Environment
Ambient air temperature for operation
-30…70 °C
Ambient air temperature for storage
-40…70 °C
Offer Sustainability
RoHS exemption information
Yes
