HDM3V250S12523XX

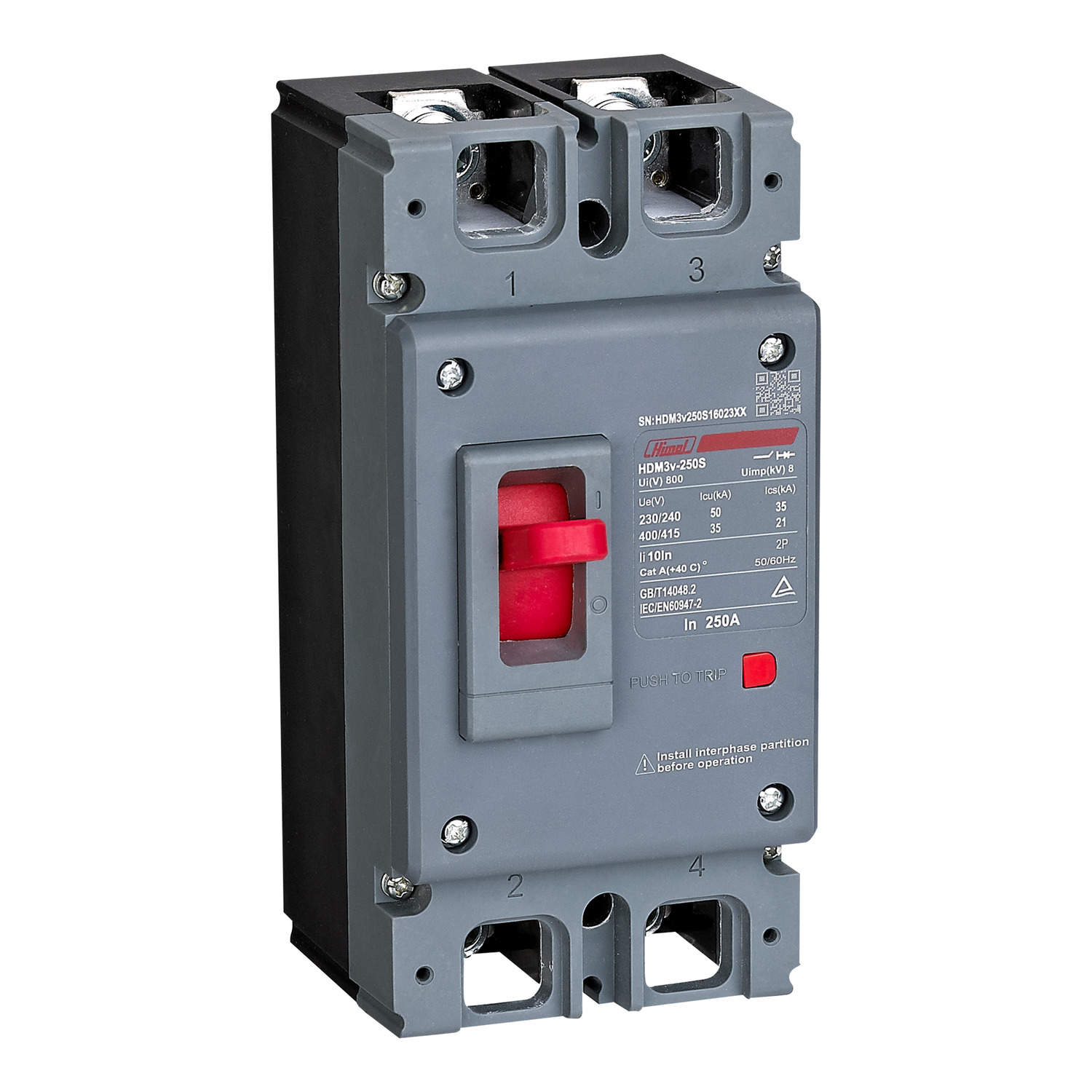

Molded case circuit breaker, HDM3v, 250S, 125A, 2P, LP MT10In, 40 C
Main
Range of product
HDM3
Product or component type
Enclosed moulded case circuit breaker
Suitability for isolation
Yes
Trip unit technology
Magnetic
Device application
Motor protection
Voltage release type
Shunt trip release
Undervoltage release
Undervoltage release
Provided equipment
alarm
interphase barriers
MN or MX voltage release
interphase barriers
MN or MX voltage release
Complementary
Poles description
2P
[In] rated current
125 A
Frame size
250AF
[Ue] rated operational voltage
230/240 V
400/415 V
400/415 V
Network type
AC
Network frequency
50...60 Hz
Electrical durability
8000.0 cycles
Mechanical durability
40000.0 cycles with maintenance
[Uimp] rated impulse withstand voltage
8 kV
[Ics] rated service breaking capacity
50 kA
35 kA
35 kA
Rated breaking capacity
35 kA
21 kA
21 kA
[Ui] rated insulation voltage
800 V
Mounting mode
Fixed front
Clamping connection capacity
50 mm²
Tightening torque
7…10 N.m
Utilisation category
Category A
Provision for padlocking
Handle padlockable in on and off position
Height
165 mm
Width
79 mm
Depth
77 mm
Net weight
1.34 kg
Environment
IP degree of protection
IP20
Ambient air temperature for operation
40.0 °C
Ambient air temperature for storage
-40…70 °C
Operating altitude
0...2000 m
Standards
IEC 60947-2
Product certifications
TÜV
CB
CE
CB
CE
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
