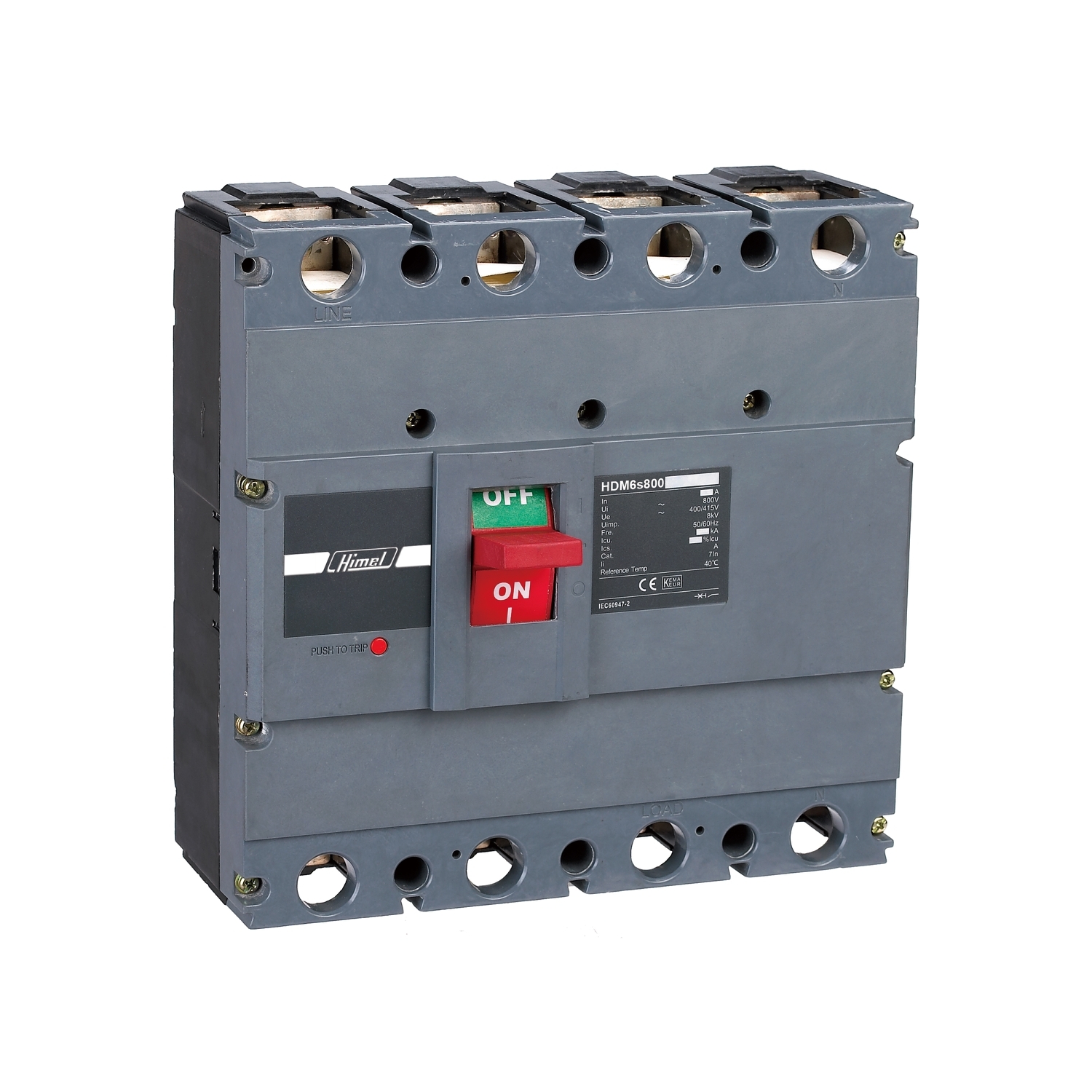

HDM6S800M800410NF
Molded case circuit breaker HDM6s - 800M 4P 800A - unadjustable - with MX AC230V
Main
Range of product
HDM6s
Trip unit technology
Thermal-magnetic
Device application
Power distribution protection
Complementary
Product or component type
Enclosed moulded case circuit breaker
Poles description
4P
[In] rated current
800.0 A
Frame size
800AF
[Ue] rated operational voltage
400/415 V
Network type
AC
Network frequency
50...60 Hz
Electrical durability
500.0 cycles
Mechanical durability
2500.0 cycles
[Uimp] rated impulse withstand voltage
8.0 kV
[Ics] rated service breaking capacity
40 kA
Rated breaking capacity
70 kA
[Ui] rated insulation voltage
800.0 V
Mounting mode
Fixed
Height
280.0 mm
Width
280.0 mm
Depth
147.0 mm
Environment
Ambient air temperature for operation
-5…40 °C
Ambient air temperature for storage
-20…70 °C
Operating altitude
0...2000 m
Standards
IEC 60947-2
Product certifications
CB
CE
KEMA
CE
KEMA
