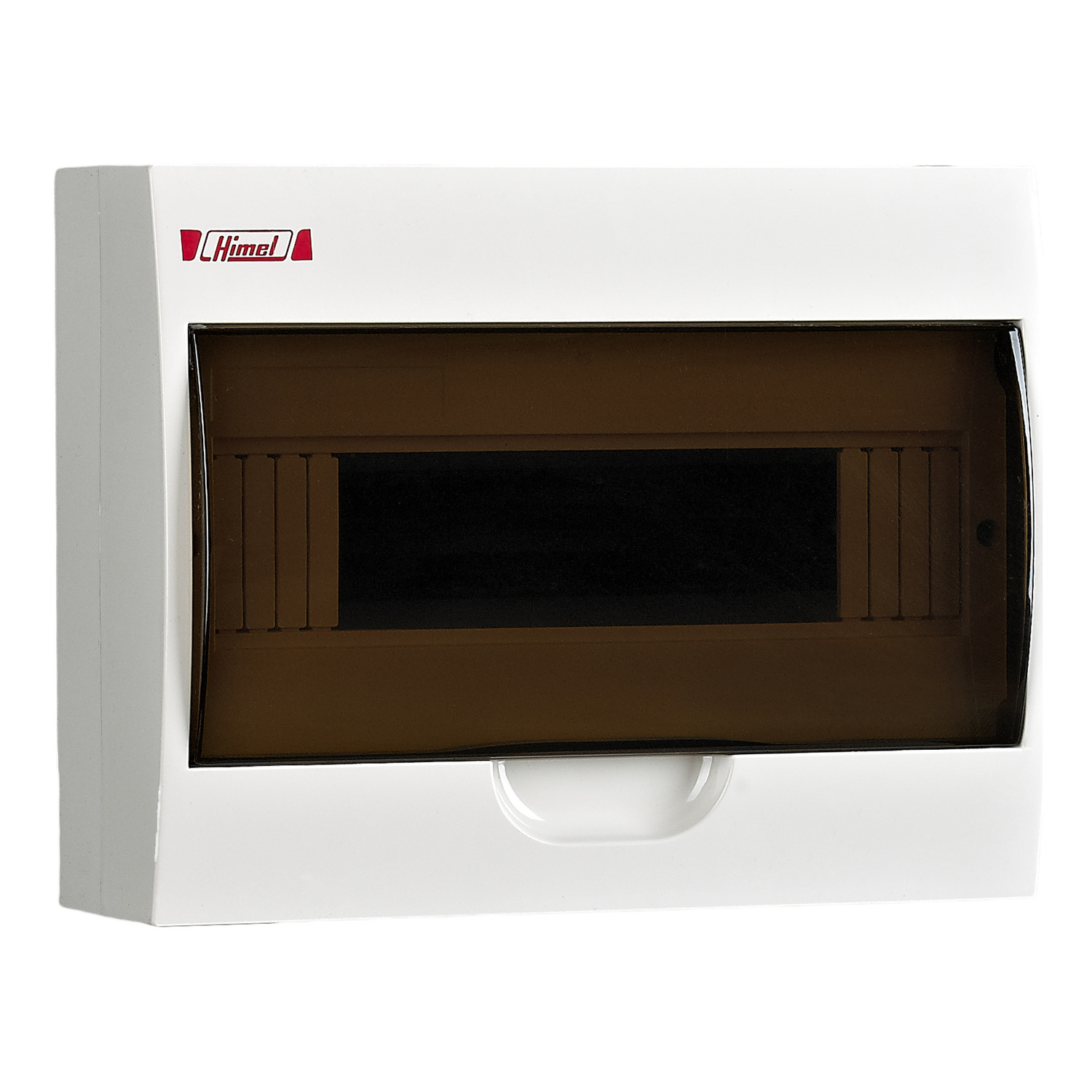

HDPZ50PM12NF
Distribution box, HDPZ50P, full plastic, 12 ways, surface mounted, ABS
Main
Range of product
HDPZ50
Device application
Low voltage electrical distribution
Product or component type
Empty consumer unit
Enclosure type
Insulated enclosure
Number of 18 mm modules per row
12.0
Provided equipment
Earth/neutral terminal block
Type of front cover
Transparent
Complementary
Enclosure mounting
Surface
Number of horizontal rows
1.0
Number of ways
12 ways
Enclosure material
Plastic
[In] rated current
100 A
[Ue] rated operational voltage
230/240 V
Type of rail
DIN
Cable entry
Knock-out
Downside connection
Rear
Comb busbar and distribution block compatibility
YES
Product compatibility
Switch
MCB
RCCB
RCBO
MCB
RCCB
RCBO
Height
200 mm
Width
255 mm
Depth
96 mm
Environment
Standards
IEC 60670
IP degree of protection
IP30
Ambient air temperature for operation
-5…60 °C
