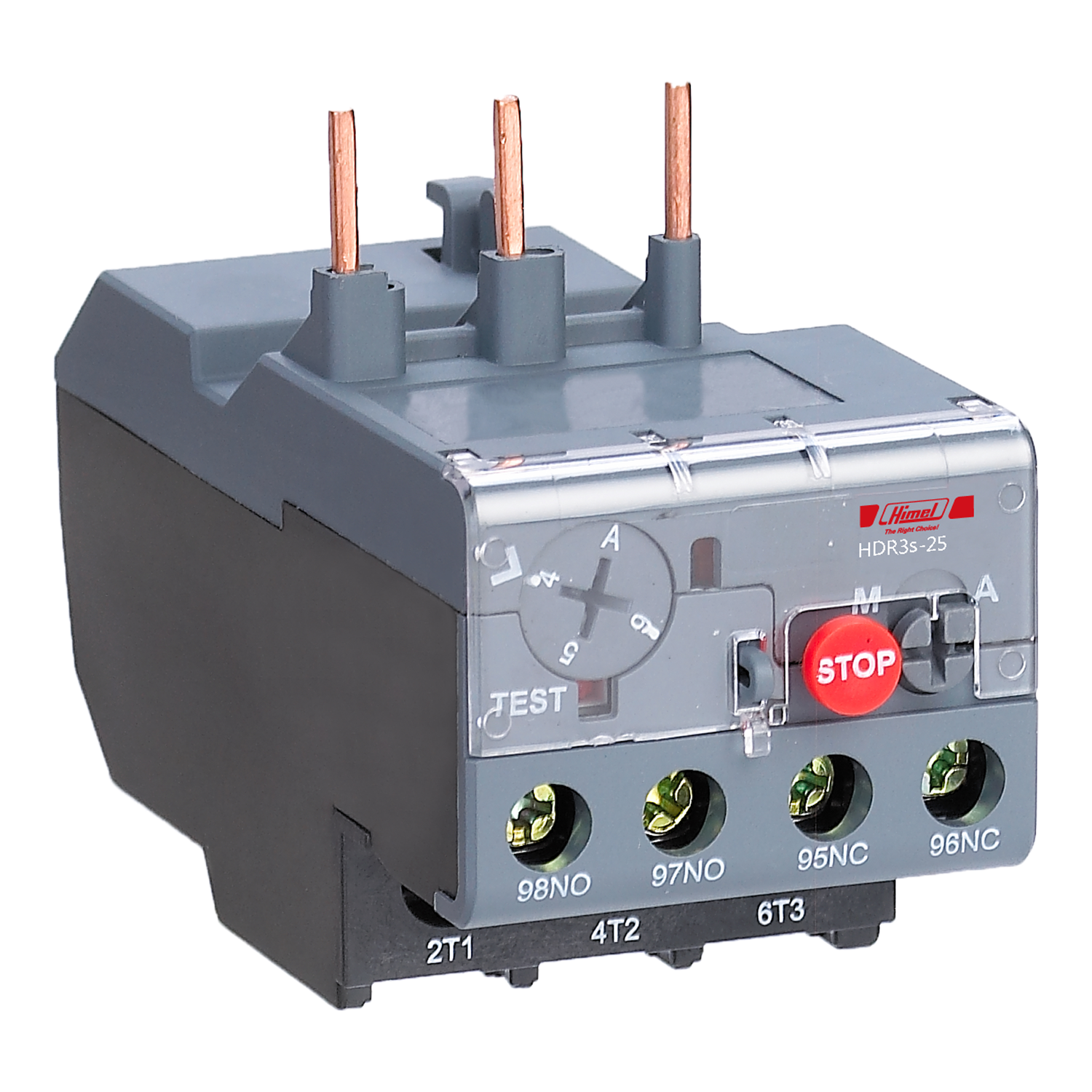

HDR3S2518
Thermal overload relay, HDR3s-25, 12..18 A
Main
Range of product
HDR3s
Product or component type
Thermal overload relay
Device application
Motor protection
Thermal protection adjustment range
12…18 A
Frame size
25A
Complementary
Protection type
Overload
Phase failure
Phase failure
Reset
Automatic reset
Manual reset
Manual reset
Control type
Test button
Stop button
Stop button
[Ith] conventional free air thermal current
5 A
Local signalling
Trip indicator
[Ie] rated operational current
1.57 A at 230 V AC-15
0.9 A at 400 V AC-15
0.14 A at 230 V DC-13
0.9 A at 400 V AC-15
0.14 A at 230 V DC-13
[Ui] rated insulation voltage
660 V
[Uimp] rated impulse withstand voltage
6 kV
Utilisation category
AC-15
DC-13
DC-13
Poles description
3P
Height
67 mm
Width
45 mm
Depth
95 mm
Environment
Installation category
III
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Ambient air temperature for storage
-25…55 °C
Operating altitude
2000 m
Standards
IEC 60947-4-1
Product certifications
CB
CE
SEMKO
CE
SEMKO
IP degree of protection
IP20
Relative humidity
0…95 %
| Language | Format | Size | Date | |
|---|---|---|---|---|
| User guide | ||||
English |
4.26 MB |
16/06/2020 |
||
| Catalog | ||||
English |
23.41 MB |
05/07/2023 |
||
| Certificate | ||||
|
|
English |
0.20 MB |
29/05/2018 |
|
|
|
English |
1.40 MB |
09/05/2018 |
|
| CAD | ||||
English |
stp |
7.11 MB |
13/07/2021 |
|
User guide
HDR3s UM
pdf
English
4.26 MB
16/06/2020
Catalog
MOTOR CNTRL PROT CAT
pdf
English
23.41 MB
05/07/2023
Certificate
HDR3s CE CER
pdf
English
0.20 MB
29/05/2018
HDR3s CB CER
pdf
English
1.40 MB
09/05/2018
CAD
HDR3s-25
English
stp
7.11 MB
13/07/2021
