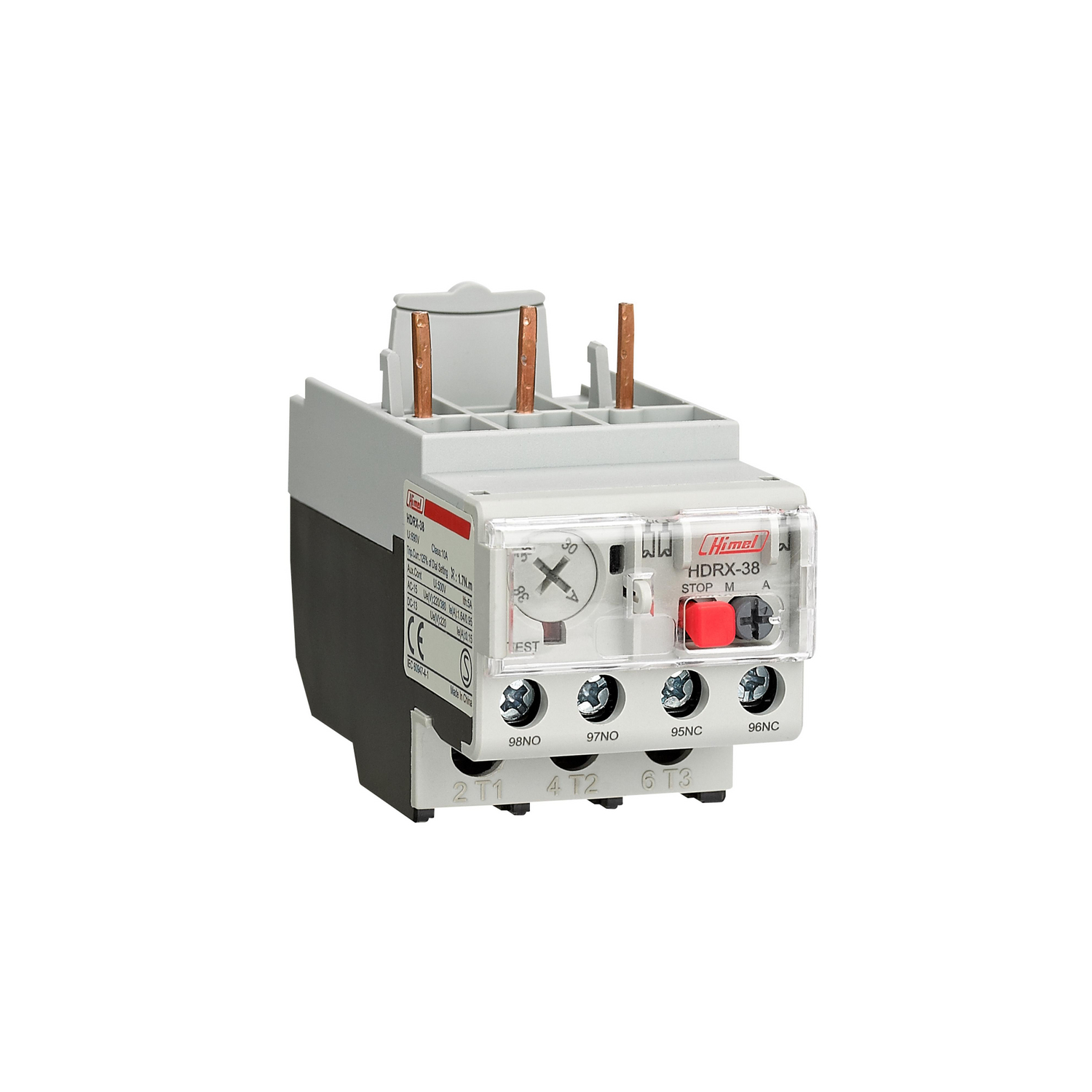

HDRX38P25
HDRX-38 0.16-0.25A RoHS
Main
Range of product
HDRX
Product or component type
Thermal overload relay
Device application
Motor protection
Thermal protection adjustment range
0.16…0.25 A
Frame size
38A
Complementary
Protection type
Overload
Phase failure
Phase failure
Reset
Automatic reset
Manual reset
Manual reset
Control type
Test button
Stop button
Stop button
Local signalling
Trip indicator
[Ie] rated operational current
1.64 A at 220/230 V AC-15
0.95 A at 380/400 V AC-15
0.15 A at 220/230 V DC-13
0.95 A at 380/400 V AC-15
0.15 A at 220/230 V DC-13
[Ui] rated insulation voltage
690 V
[Uimp] rated impulse withstand voltage
6 kV
Utilisation category
AC-15
DC-13
DC-13
Poles description
3P
Height
66 mm
Width
44 mm
Depth
96 mm
Product weight
0.2 kg
Environment
Installation category
III
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Ambient air temperature for storage
-25…55 °C
Operating altitude
2000 m
Standards
IEC 60947-4-1
Product certifications
CB
CE
SEMKO
CE
SEMKO
Relative humidity
0…95 %
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
