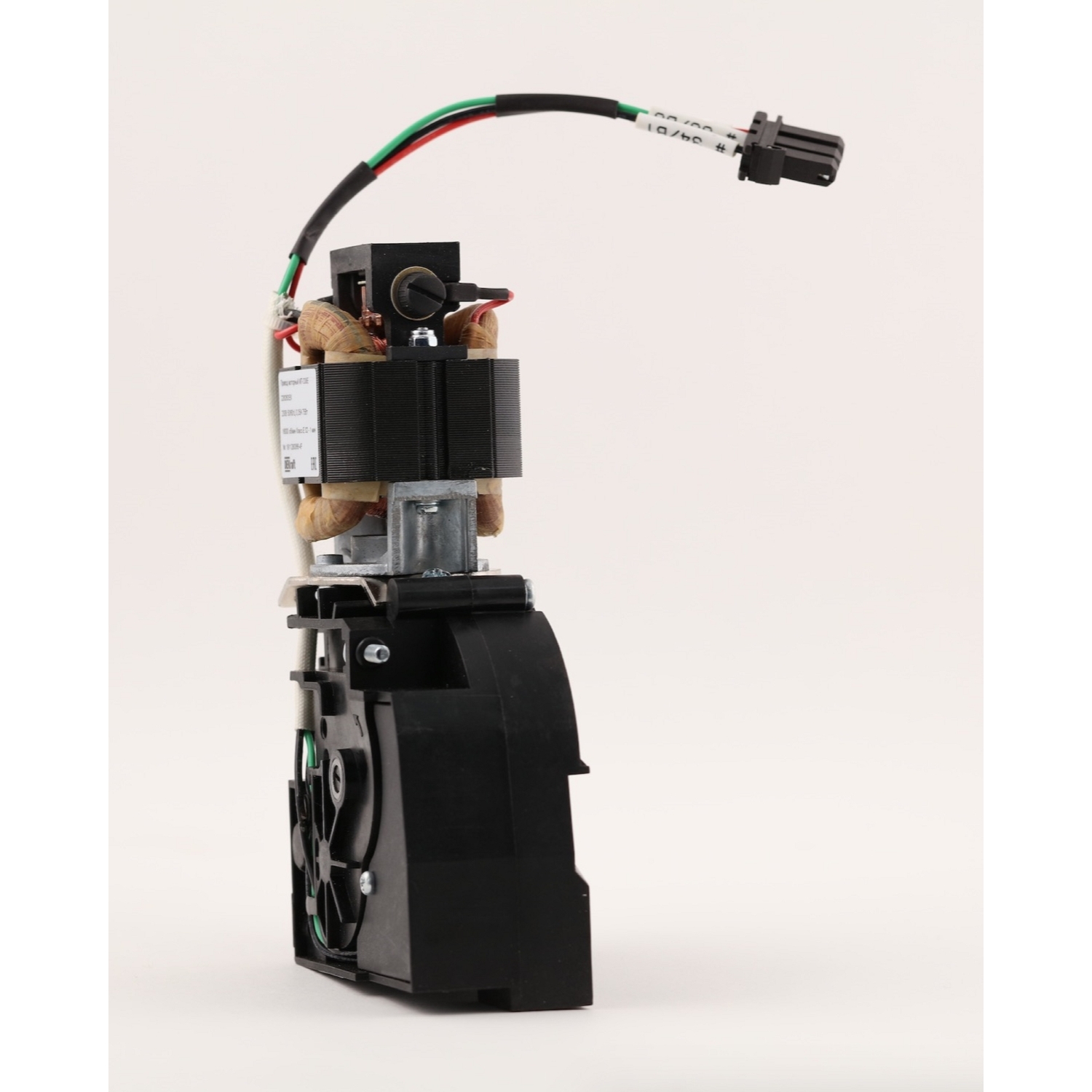

HDW3MCH402D
Motor mechanism, HDW3, 220 V DC, 4000AF
Main
Range of product
HDW3
Product or component type
Motor mechanism
Device application
Control
Threshold tripping voltage
0.85...1.1 Un opening
Maximum charging time
5 s
Complementary
[Uc] control circuit voltage
220 V
Network type
AC
Power consumption in W
180 W
Auxiliary connection terminal
Screw terminal, 1.5 mm²
Frame size
4000AF
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
