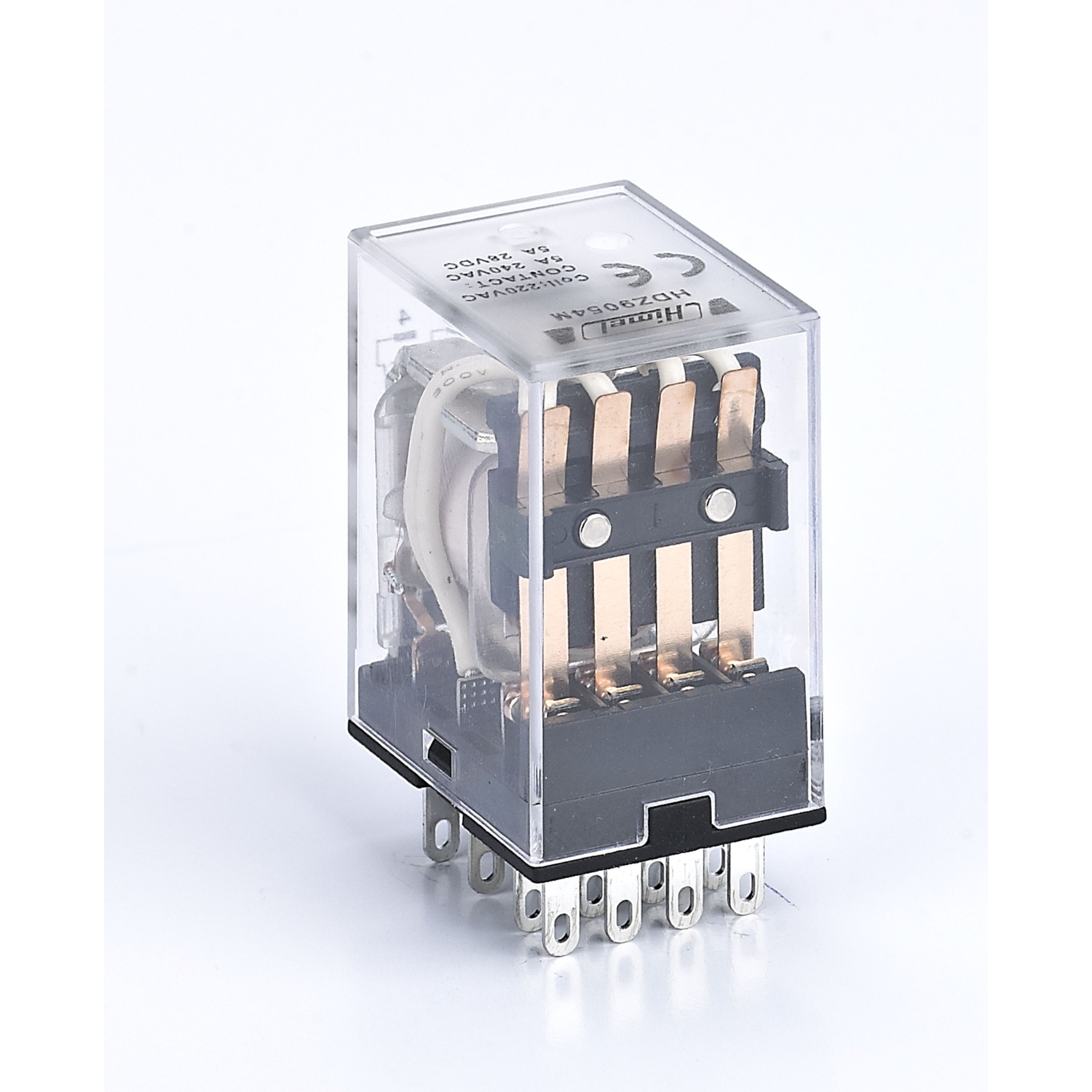

HDZ9054U
Miniature plug-in relay, HDZ9, 5A, 4P, AC 240V
Main
Range of product
HDZ9
Series name
Miniature
Product or component type
Plug-in relay
Utilisation coefficient
20 %
Complementary
Contacts type and composition
4 C/O
Shape of pin
Flat
[Uc] control circuit voltage
240 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current
5 A at -25…55 °C
[Ui] rated insulation voltage
250 V AC conforming to IEC
28 V DC conforming to IEC
28 V DC conforming to IEC
[Uimp] rated impulse withstand voltage
2.5 kV during 1.2/50 µs
Contacts material
Silver alloy contacts
[Ie] rated operational current
5 A at 250 V (AC) conforming to IEC
Load current
5 A at 240 V AC
Maximum switching capacity
1250 VA/140 W
Operating rate
<= 1800 cycles/hour under load
<= 18000 cycles/hour no-load
<= 18000 cycles/hour no-load
Mechanical durability
10000000 cycles
Electrical durability
100000 cycles for resistive load
Average consumption
1.2 VA at 50 Hz
Drop-out voltage threshold
>= 0.15 Uc
Operating time
15 ms
Reset time
10 ms
Protection category
RT I
Operating position
Any position
Height
27 mm
Width
21 mm
Depth
35 mm
E-commerce address
Hdz9-ac-classic-type-without-led
Environment
Dielectric strength
1300 V AC between contacts with micro disconnection
Product certifications
CB
CE
SEMKO
CE
SEMKO
Standards
IEC 60947-4
Ambient air temperature for storage
-55…70 °C
Ambient air temperature for operation
-25…55 °C
Vibration resistance
3 gn, amplitude = +/- 1 mm (f = 10…55 Hz)5 cycles in operation
IP degree of protection
IP20 conforming to EN/IEC 60529
Shock resistance
10 gn for in operation
Pollution degree
2
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
