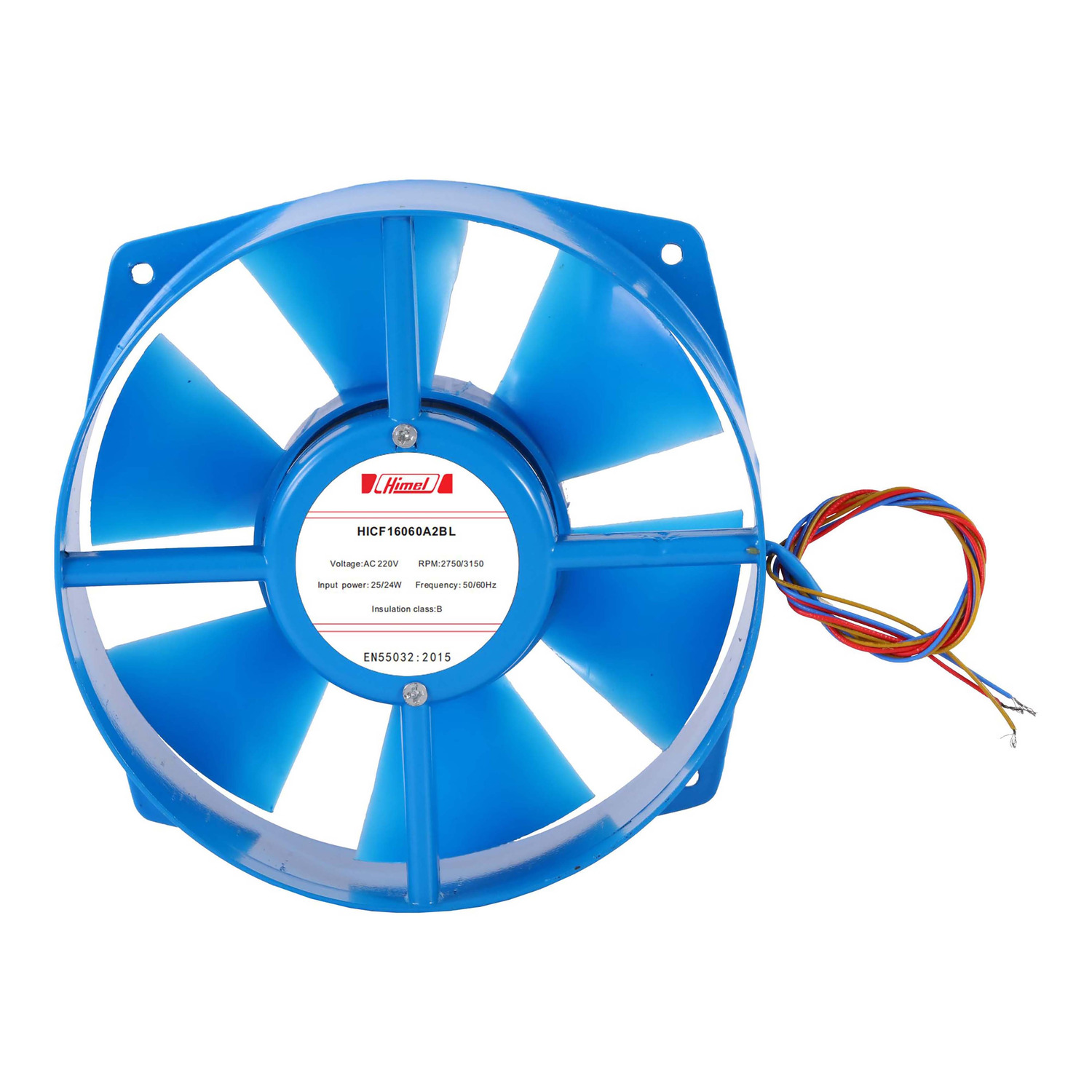

HICF16060A2BL
Axial fan, HICF, 160 x 160 x 60,220 V AC, ball bearing
Main
Range of product
HICF
Product or component type
Axial fan
Accessory / separate part category
Cooling accessory
Complementary
Device application
Ventilation
[Ue] rated operational voltage
220 V AC 50 Hz 0.13 A
220 V AC 60 Hz 0.1 A
220 V AC 60 Hz 0.1 A
Rated power in W
25 W 50 Hz
24 W 60 Hz
24 W 60 Hz
Air pressure
26.5 mmAq (50 Hz)
28.6 mmAq (60 Hz)
28.6 mmAq (60 Hz)
Air flow
23400 ft3/h (50 Hz)
25200 ft3/h (60 Hz)
25200 ft3/h (60 Hz)
Fan speed
2750 rpm (50 Hz)
3150 rpm (60 Hz)
3150 rpm (60 Hz)
Noise level
61 dB
Material
Aluminium: body
Plastic: blade
Plastic: blade
Colour
Blue
Mounting location
Bottom
Top
Front
Top
Front
Height
160 mm
Width
160 mm
Depth
60 mm
Environment
Ambient air temperature for operation
-25…65 °C
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
