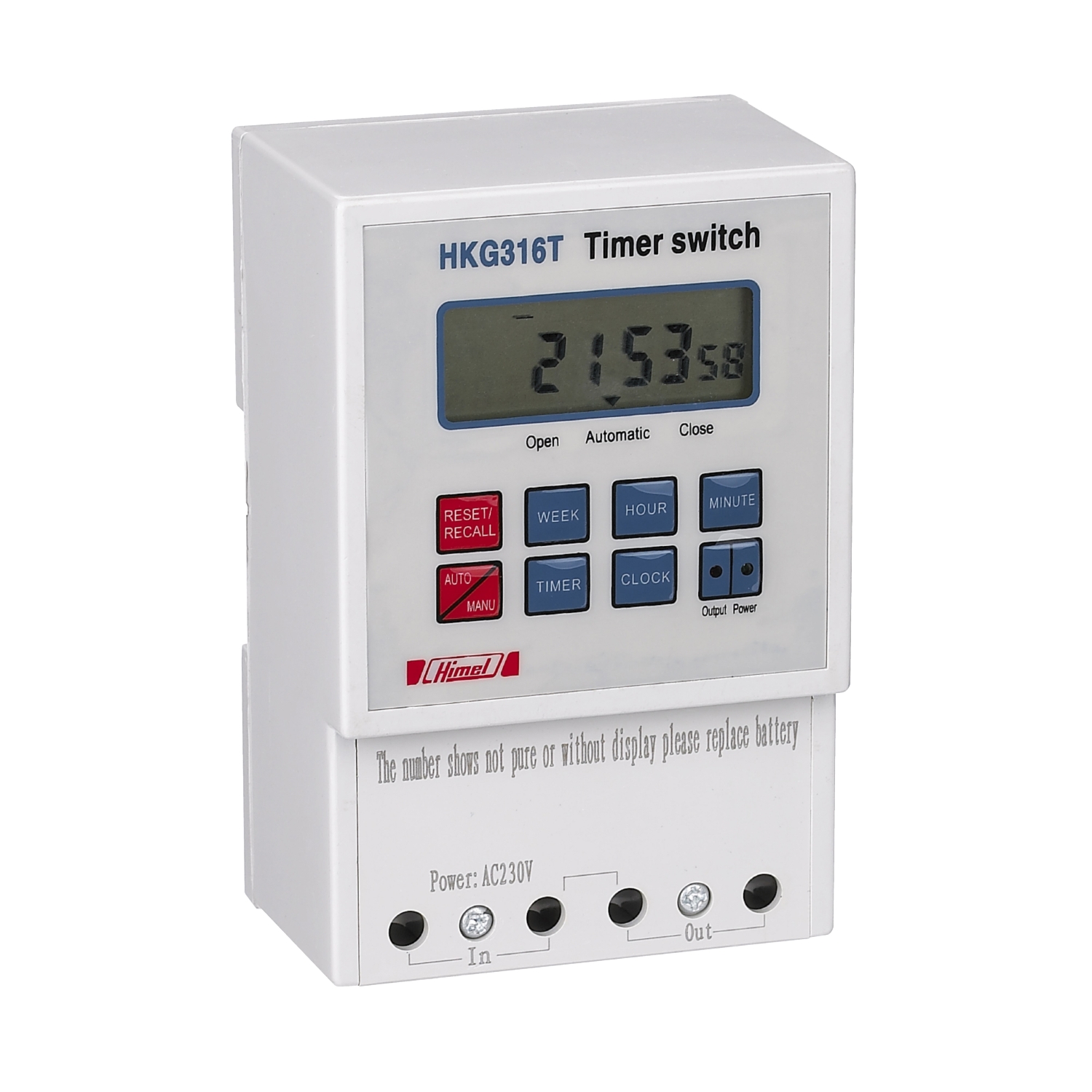

HKG316T230
Digital time switch, HKG316T, 230/400 V AC, double output, internal alkaline battery
Main
Range of product
HKG
Product or component type
Programmable digital time switch
Device short name
HKG316T
Battery type
Alkaline
Complementary
Number of outputs
2.0
[Ie] rated operational current
AC-15: 3 A AC 50 Hz 240 V
AC-15: 1.9 A AC 50 Hz 400 V
AC-15: 1.9 A AC 50 Hz 400 V
Rated control voltage
230/400 V AC
Maximum number of switchings
1.0 x 16 on - 16 off per day
2.0 x 8 on - 8 off per day
2.0 x 8 on - 8 off per day
Rated thermal current
10 A
Accuracy
+/- 2 s/day
Display type
Digital display
Environment
Standards
IEC 60947-5-1
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
