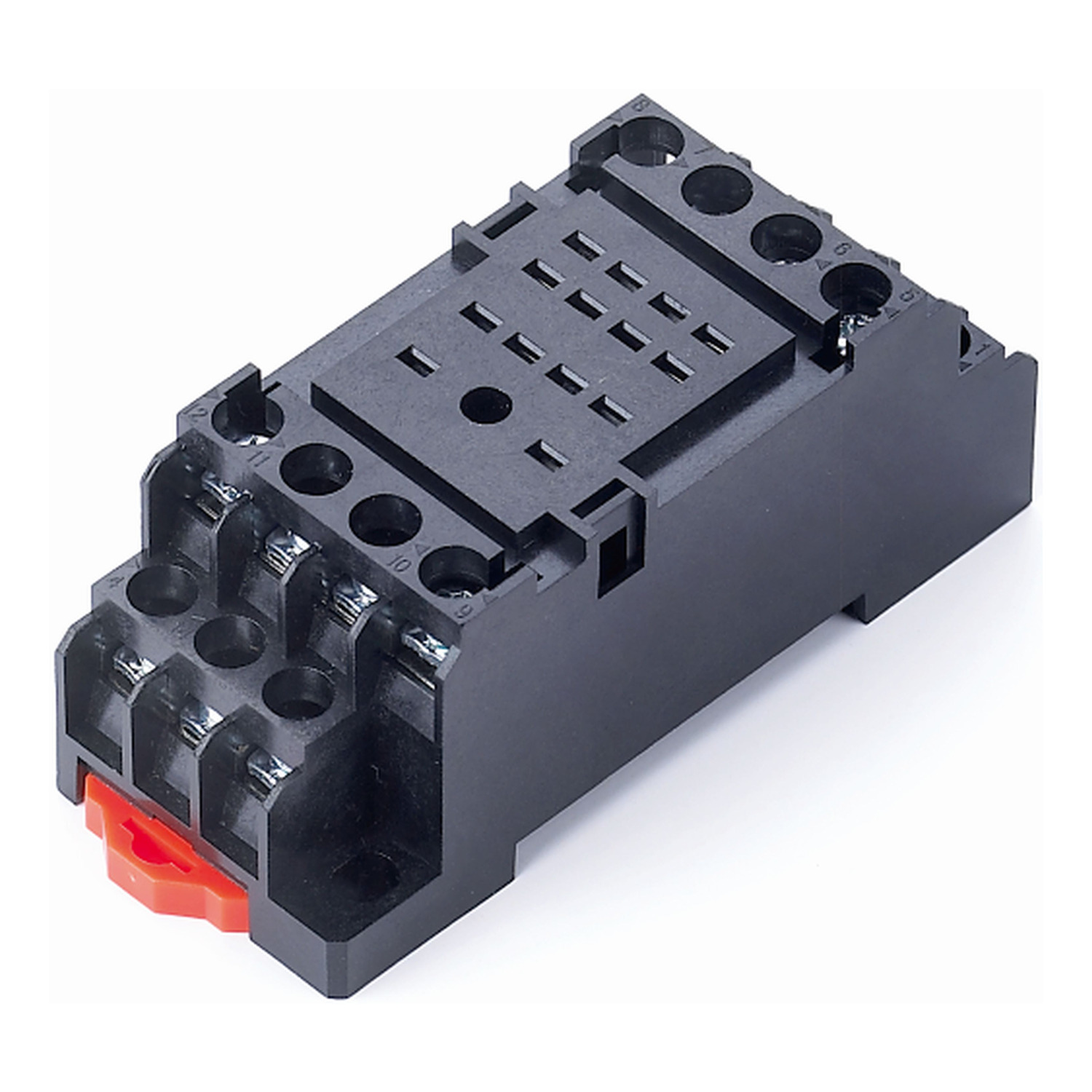

HPYF14A15
Relay socket, HDZ9, Basic, 4 C/O, 7 A, for HDZ9034/HDZ9054, 14 pin
Main
Range of product
HDZ9
Product or component type
Relay Socket
Pin number
14.0
Contacts type and composition
4 C/O
[In] rated current
7 A
Complementary
Output type
Relay
Shape of pin
Flat
[Ue] rated operational voltage
250 V AC
Contact terminal arrangement
Mixed
Connections - terminals
Screw clamp terminals, 2 x 0.5...2 x 1.5 mm²solid without cable end
Fixing mode
By screw (panel)
Environment
Dielectric strength
2500 V
Standards
IEC 61984
Product certifications
CE
Ambient air temperature for storage
-40…85 °C
Ambient air temperature for operation
-40…55 °C
IP degree of protection
IP20
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
