HRT18103832

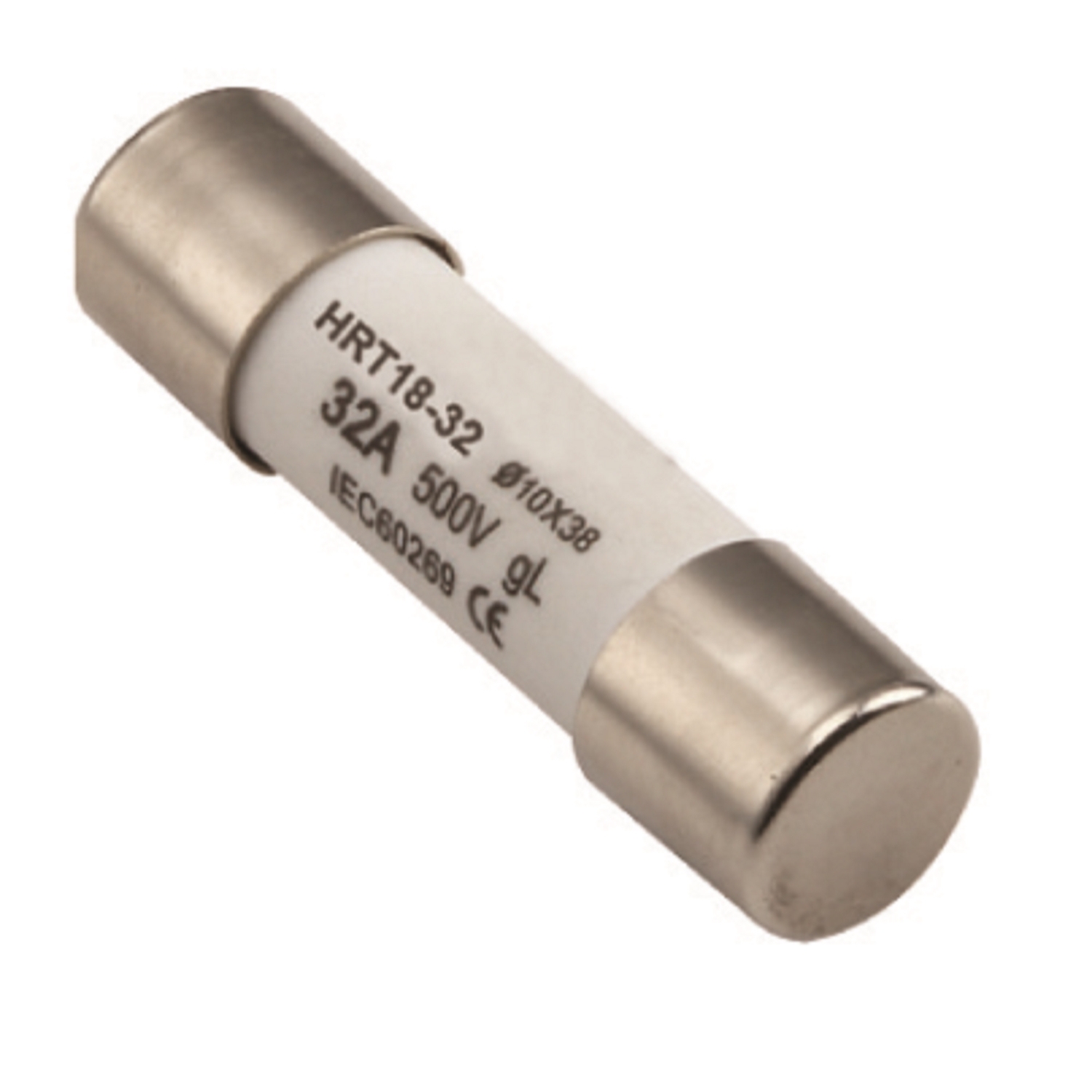

Cylindrical fuse, HRT18, 10.38, 32 A, R015
Main
Range of product
HRT18
Product or component type
Cartridge fuse
Fuse type
Cylindrical
Device application
Protection
Fuse curve
GG
Complementary
[Ue] rated operational voltage
380...500 V AC
[In] rated current
32 A
Environment
Standards
EN 60269
Product certifications
CE
Ambient air temperature for operation
-5…40 °C
Operating altitude
<= 2000 m
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
| Language | Format | Size | Date | |
|---|---|---|---|---|
| Catalog | ||||
English |
4.28 MB |
01/09/2020 |
||
| Certificate | ||||
English |
1.11 MB |
31/05/2021 |
||
English |
0.04 MB |
15/06/2021 |
||
Catalog
Isolating Switch and Fuse
pdf
English
4.28 MB
01/09/2020
Certificate
HRT18 Test report-LVD
pdf
English
1.11 MB
31/05/2021
LVD 2292-HRT18M-2021-206-C65404-certificate
pdf
English
0.04 MB
15/06/2021
