HWDSSIG

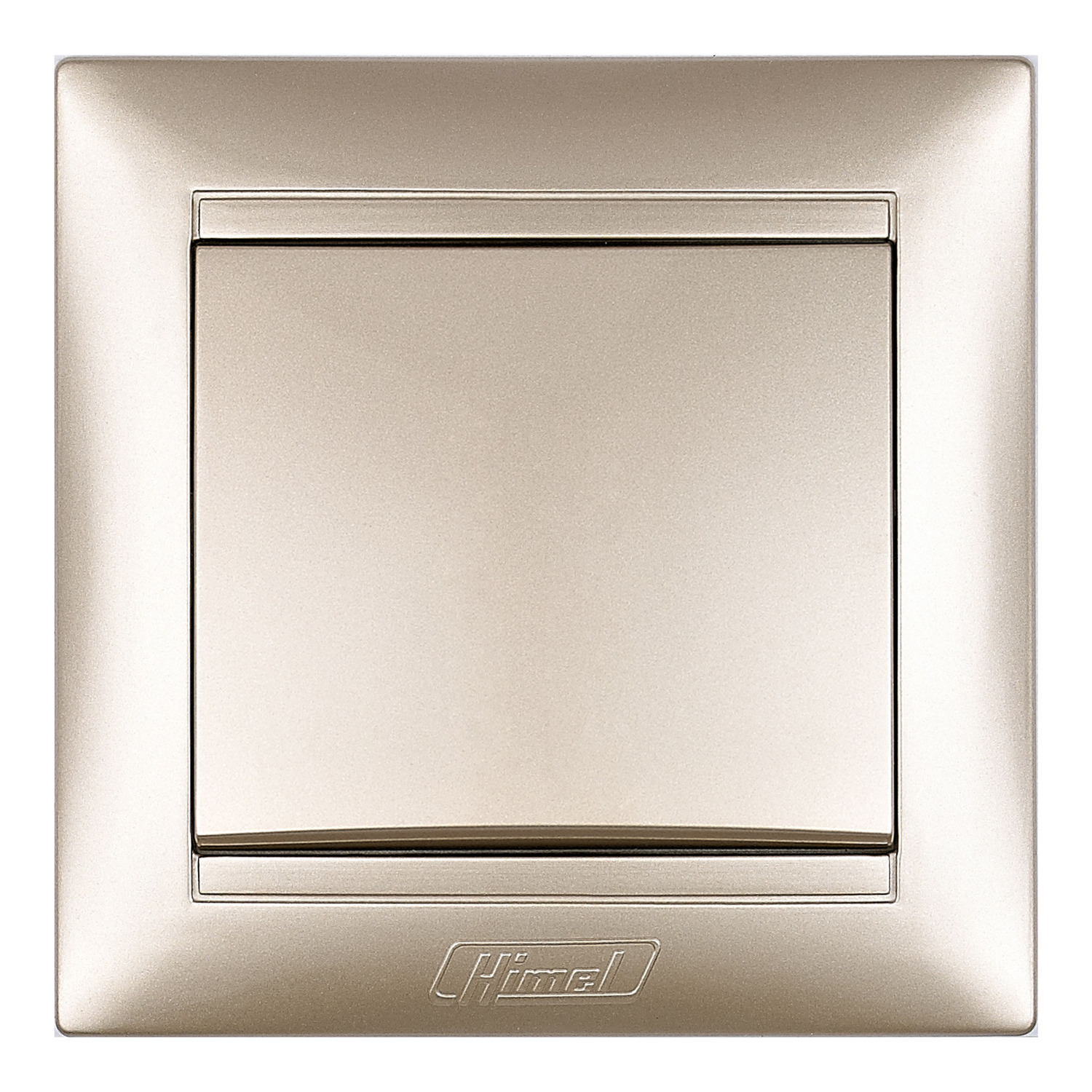

Intermediate switch, Style Series, 10 AX, 250 V AC, 1 gang, intermediate, gold
Main
Range of product
Style Series
Product or component type
Intermediate switch
Device presentation
Complete mechanism
Device mounting
Flush
Number of gangs
1 gang
Device application
Lighting
Colour tint
Gold
Complementary
Switch function
Intermediate
Rated current
10 AX
[Ue] rated operational voltage
250 V
Network type
AC
Network frequency
50 Hz
Number of modules
1 module
Actuator
Rocker
Material
PC (polycarbonate)
Contacts material
Copper
Connections - terminals
Screw terminals
Type of installation
Indoor
Fixing center
60 mm
Width
82.5 mm
Height
82.5 mm
E-commerce address
New-style-series-switch-gold-colour-10-ax-250-vac
Environment
Ambient air temperature for operation
-5…40 °C
Relative humidity
0…95 %
IP degree of protection
IPx0
Standards
IEC 60669-1
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Contractual warranty
