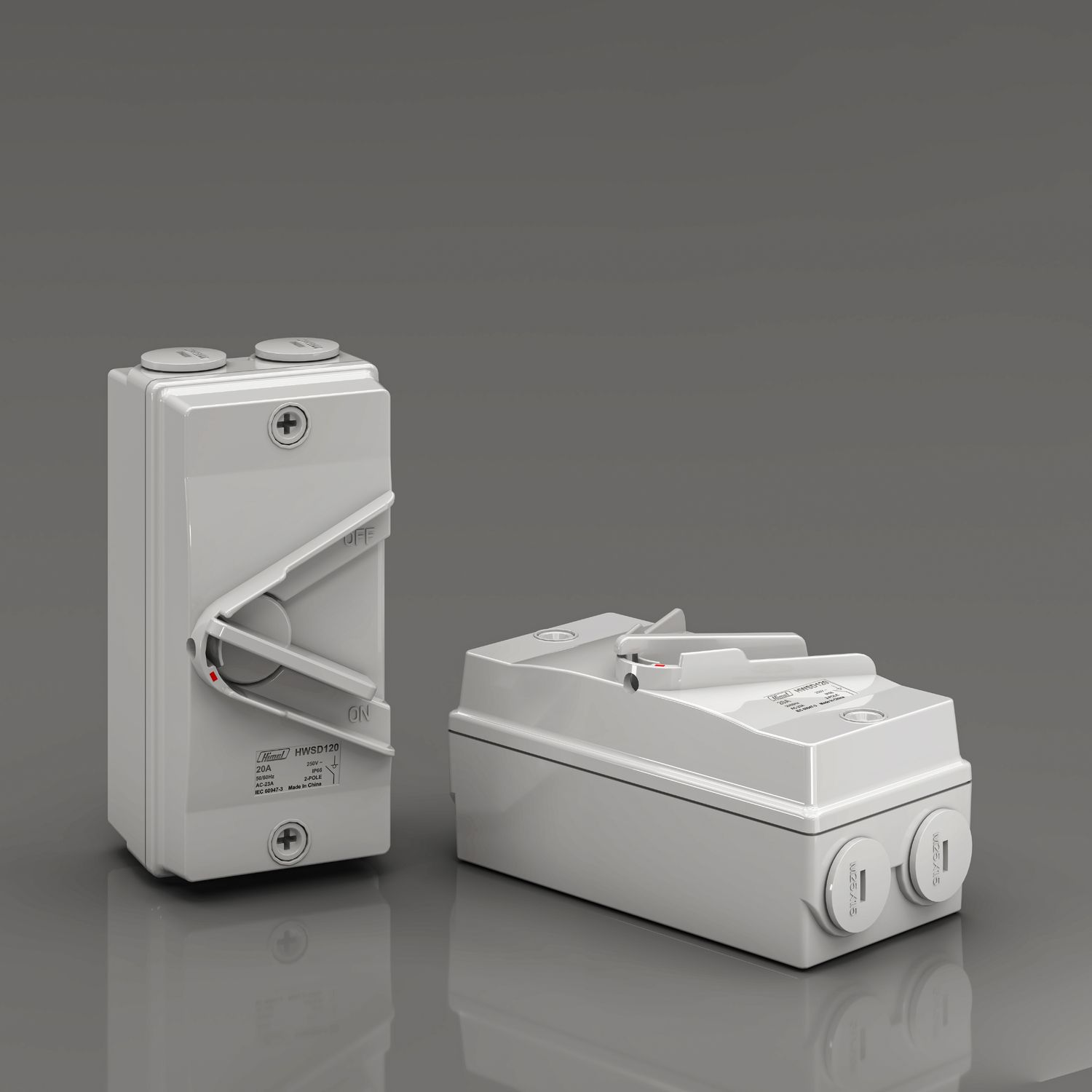

HWSD220
HWSD 2P AC 250/440V 20A IP66
Main
Range of product
HWSD
Product or component type
Isolator switch
Poles description
2P
Network type
AC
Network frequency
50/60 Hz
Mounting mode
Fixed
[Icm] rated short-circuit making capacity
440 V
Complementary
Utilisation category
AC-22A
AC-23A
AC-23A
Control type
ON/OFF selector switch
Mounting support
Screw fixing
[Ie] rated operational current
20.0 A
[Ui] rated insulation voltage
630.0 V
[Uimp] rated impulse withstand voltage
6.0 kV
Suitability for isolation
Yes
Mechanical interlocking
Without mechanical interlock
Mechanical durability
8500.0 cycles
Electrical durability
1500.0 cycles
Height
174.0 mm
Width
82.0 mm
Depth
87.0 mm
Product weight
0.49 kg
Environment
Standards
IEC 60947-3
IEC 60947-1
IEC 60947-1
Product certifications
CB
CE
CE
IP degree of protection
IP66
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Offer Sustainability
Sustainable packaging
No
