HXCKP112

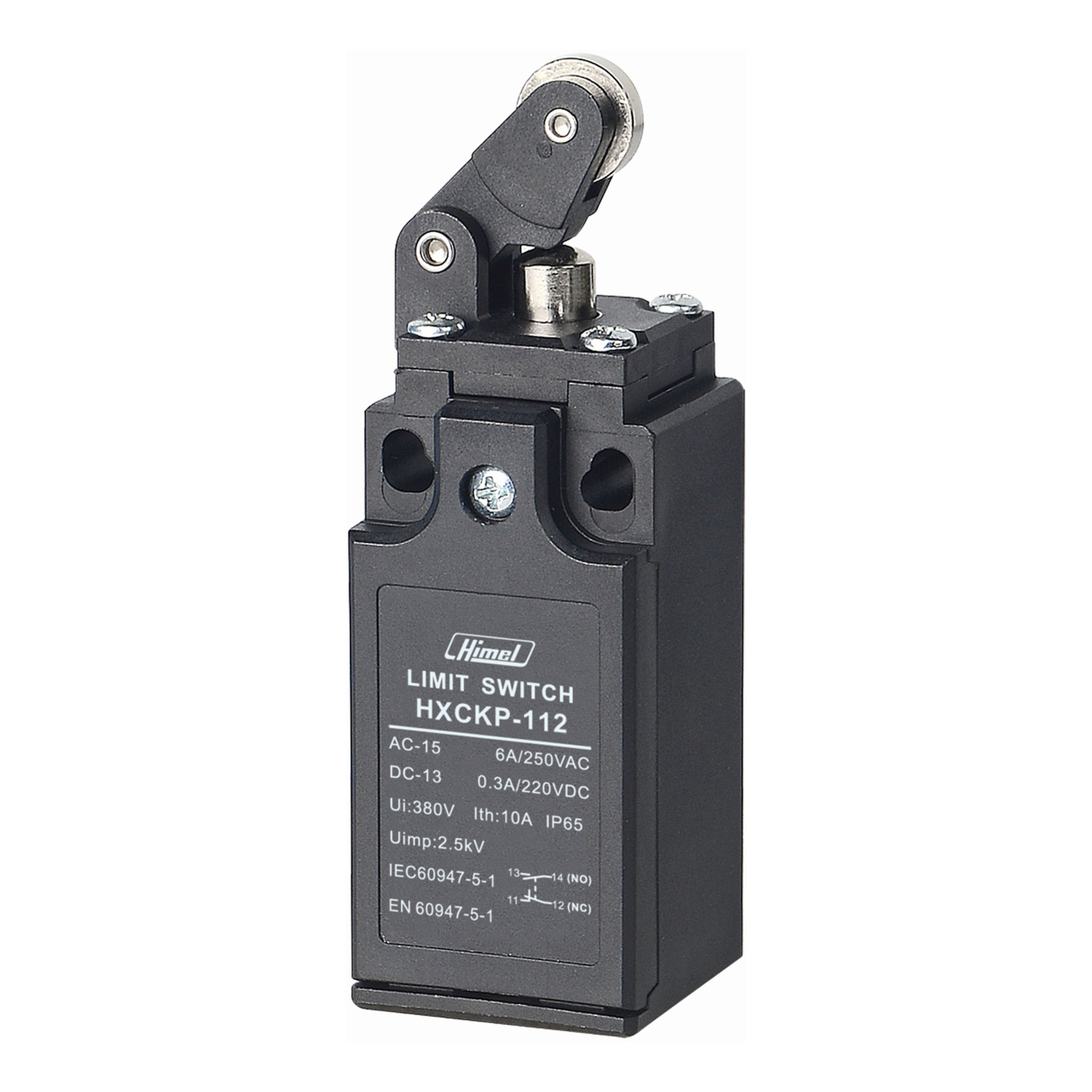

Limit switch, HXCKP, roller rotating lever, left side
Main
Range of product
HXCKP
Series name
HXC
Product or component type
Limit switch
Body type
Fixed
Body material
Plastic
Head material
Stainless steel
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Roller lever
Cable entry
3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9…12 mm
Number of poles
4
Contacts type and composition
2 x (1 NC + 1 NO)
Contact operation
Snap action
Complementary
Device presentation
Complete product
Switch actuation
From left
Electrical connection
Screw clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm²
Maximum force for tripping
7 N
Minimum release force
2 N
Maximum pre-travel
1.8 mm
Minimum over travel
3.7 mm
Maximum movement differential
1.2 mm
Tripping point
2 mm
Maximum actuation speed
0.5 m/s
Repeat accuracy
0.1 mm on the tripping points with 1 million operating cycles
Maximum operating rate
30 cyc/mn
[Ithe] conventional enclosed thermal current
10 A AC
[Ui] rated insulation voltage
380 V conforming to IEC 60947-5-1
Maximum resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
[Uimp] rated impulse withstand voltage
2.5 kV conforming to IEC 60947-1
Electrical durability
500000 cycles
Terminals description ISO n°1
(13-14)NO
(11-12)NC
(11-12)NC
IP degree of protection
IP65
Height
32 mm
Width
131 mm
Depth
47 mm
Product weight
0.064 kg
Environment
Vibration resistance
1.5 mm double amplitude (f= 10…55 Hz)
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…70 °C
Product certifications
CE
Standards
EN 60947-5-1
