HDB3LTH1C20R300

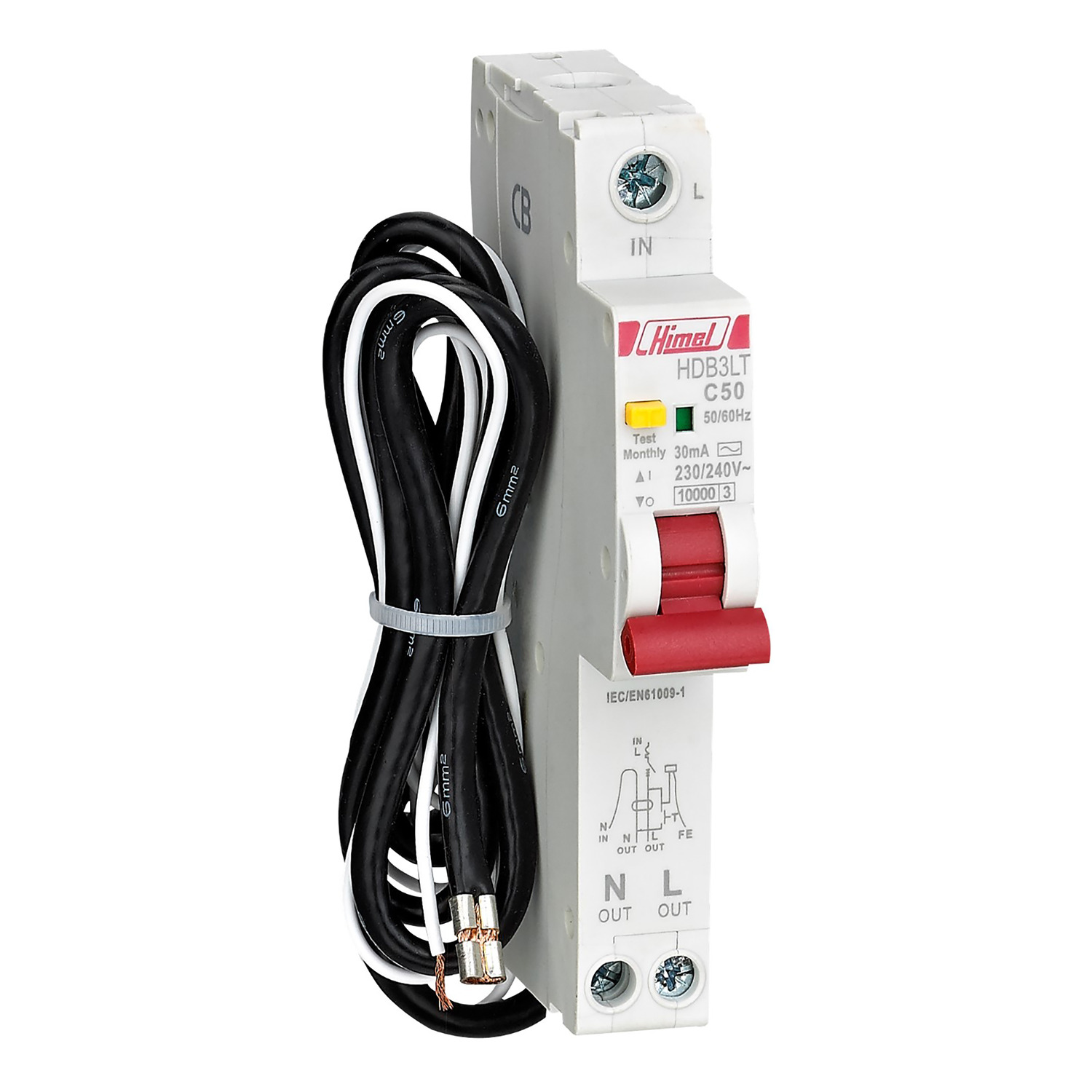

Residual current device, HDB3LT, 10kA, 1P+N, C, 20A, 300mA
Main
Range of product
HDB3LT
Product or component type
Residual current device
Mechanical durability
20000 cycles
[In] rated current
20 A
Electrical durability
10000 cycles
Trip unit technology
Thermal-magnetic
Device application
Isolation
Complementary
Poles description
1P + N
[In] rated current
20 A
Earth-leakage sensitivity
300 mA
[Ue] rated operational voltage
230/240 V AC 50...60 Hz
Residual current
300 mA
[Uimp] rated impulse withstand voltage
4 kV
Curve code
C
Magnetic tripping limit
5...10 x In
Cable entry
Top
Mounting support
35 mm DIN rail
Clamping connection capacity
<= 25 mm²
Tightening torque
2 N.m
Connections - terminals
Forked type tag connectors
Environment
Tropicalisation
2
IP degree of protection
IP20
Pollution degree
Level 2
Ambient air temperature for operation
-20…60 °C
Ambient air temperature for storage
-40...70 °C
Standards
IEC 61009-1
Product certifications
CE
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Contractual warranty
Warranty
18 months
