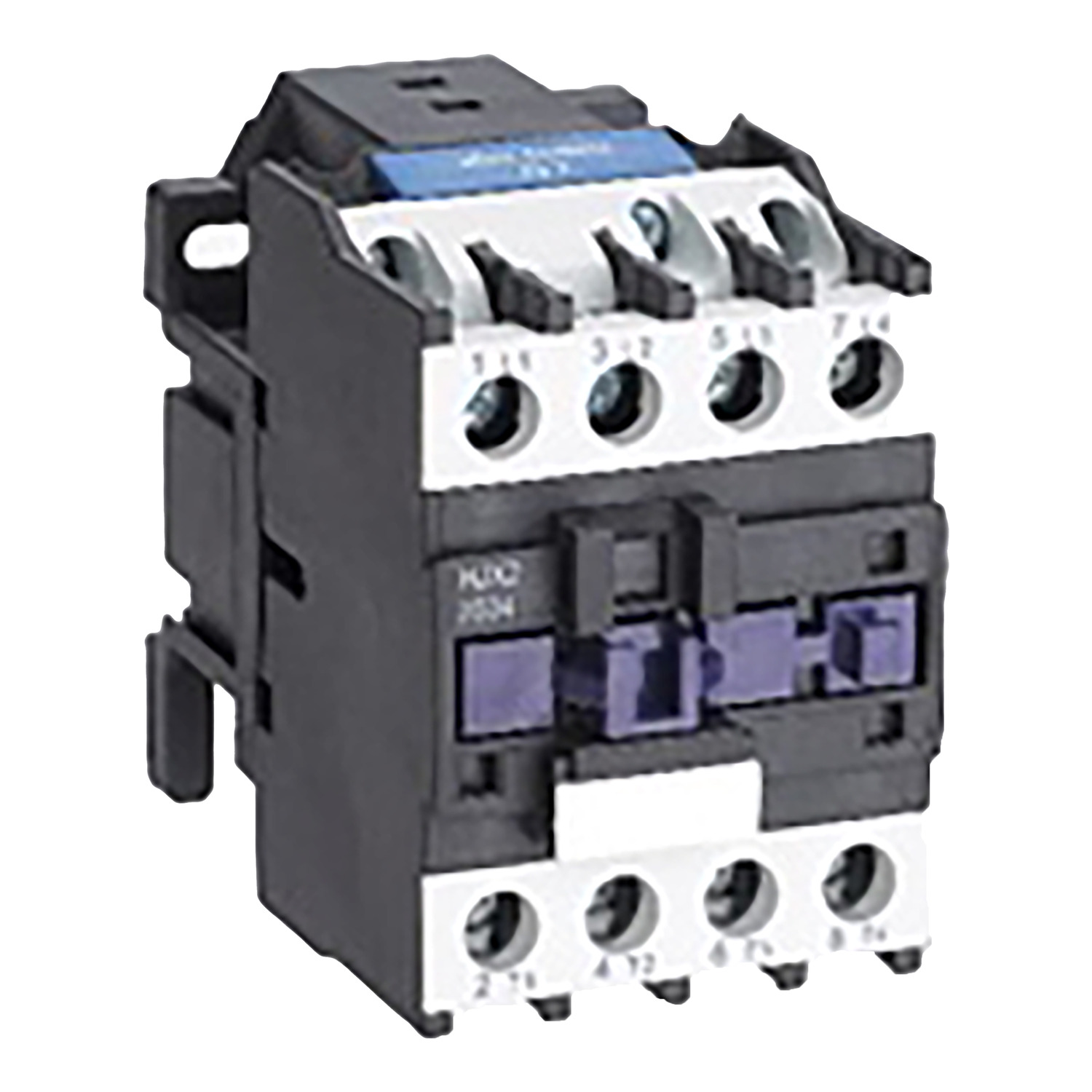

HJX22504M7
Contactor, HJX2-25, 4P, 4NO, 220 V, 50/60 Hz
Main
Range of product
HJX2 4P
Product or component type
Contactor
Contactor application
Non-reversing
Poles description
4P
[Uc] control circuit voltage
220 V AC 50/60 Hz
Mechanical interlocking
Without mechanical interlock
Complementary
[In] rated current
25 A
Auxiliary contact composition
4 NO
[Ui] rated insulation voltage
690 V
[Uimp] rated impulse withstand voltage
8 kV
[Ie] rated operational current
25 A at 380/400 V AC-3
18 A at 660/690 V AC-3
8.5 A at 380/400 V AC-4
4.4 A at 660/690 V AC-4
18 A at 660/690 V AC-3
8.5 A at 380/400 V AC-4
4.4 A at 660/690 V AC-4
Motor power kW
11 kW at 380/400 V AC 50/60 Hz AC-3 for 3 phases motors
15 kW at 660/690 V AC 50/60 Hz AC-3
4 kW at 380/400 V AC 50/60 Hz AC-4
4 kW at 660/690 V AC 50/60 Hz AC-4
15 kW at 660/690 V AC 50/60 Hz AC-3
4 kW at 380/400 V AC 50/60 Hz AC-4
4 kW at 660/690 V AC 50/60 Hz AC-4
[Ith] conventional free air thermal current
40 A
Environment
Installation category
III
Pollution degree
3
Ambient air temperature for operation
-5…40 °C
Average ambient air temperature for operation
<= 35 °C (average over 24 hours)
Ambient air temperature for storage
-25…55 °C
Operating altitude
2000 m
Standards
EN/IEC 60947-4-1
Product certifications
SEMKO
IP degree of protection
IP20
Relative humidity
0…90 %
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
