HWDCFSM

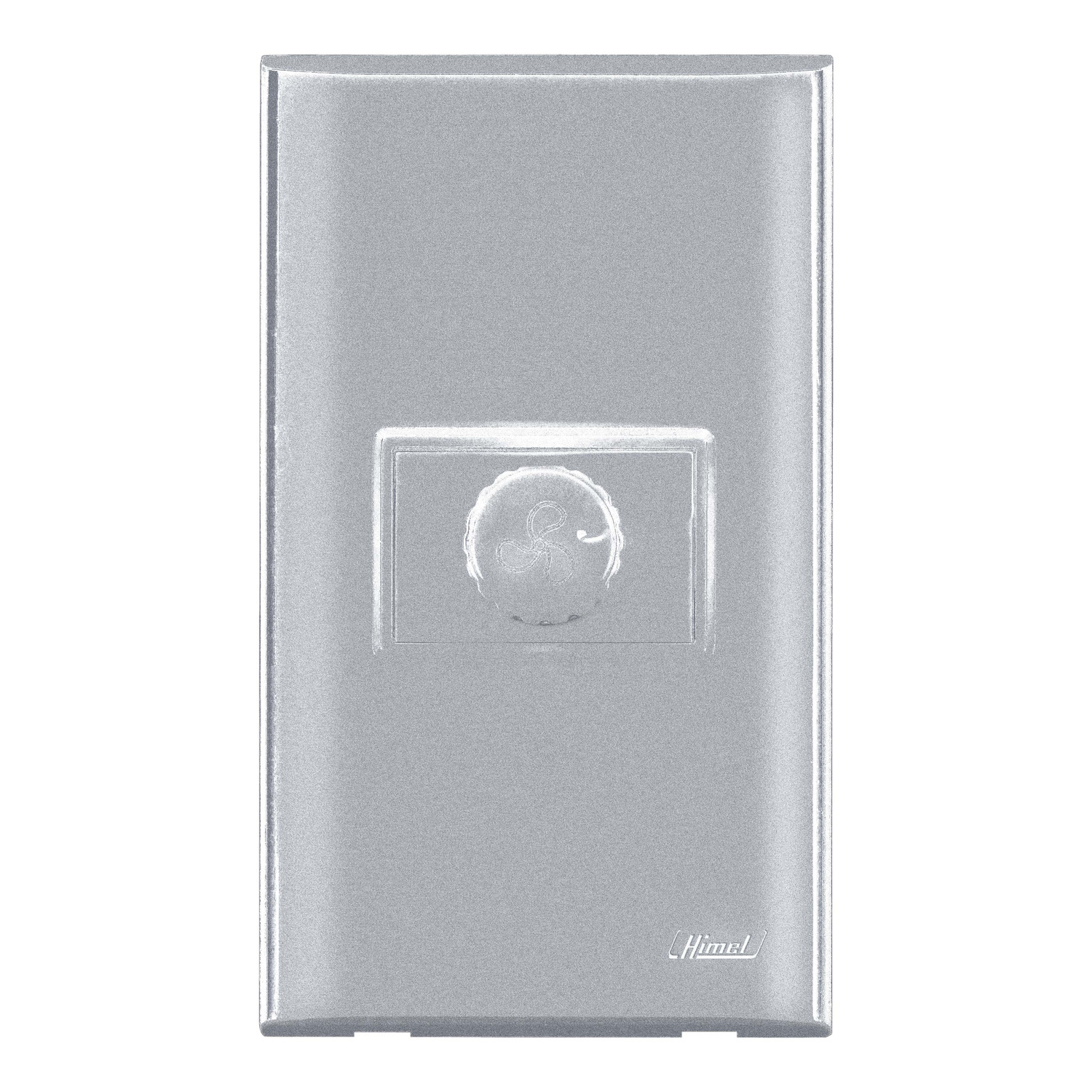

Fan speed switch, Click Series, 1 gang, 300 W, 220 V, metallic
Main
Range of product
Click Series
Product or component type
Fan switch
Device presentation
Complete mechanism
Device mounting
Flush
Number of gangs
1 gang
Device application
Fan speed controller
Colour tint
Metallic
Complementary
Power range
0...300 W
[Ue] rated operational voltage
220 V
Network type
AC
Network frequency
50 Hz
Number of modules
1 module
Material
PC (polycarbonate)
Contacts material
Copper
Connections - terminals
Quick
Type of installation
Indoor
Width
70 mm
Height
120 mm
E-commerce address
Himel-click-series-switches-silver-color-1
Environment
Ambient air temperature for operation
-5…40 °C
Relative humidity
0…95 %
IP degree of protection
IPx0
Packing Units
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Contractual warranty
Warranty
120 months
| Language | Format | Size | Date | |
|---|---|---|---|---|
| Catalog | ||||
English |
120.90 MB |
12/10/2021 |
||
Catalog
Click Series
pdf
English
120.90 MB
12/10/2021
